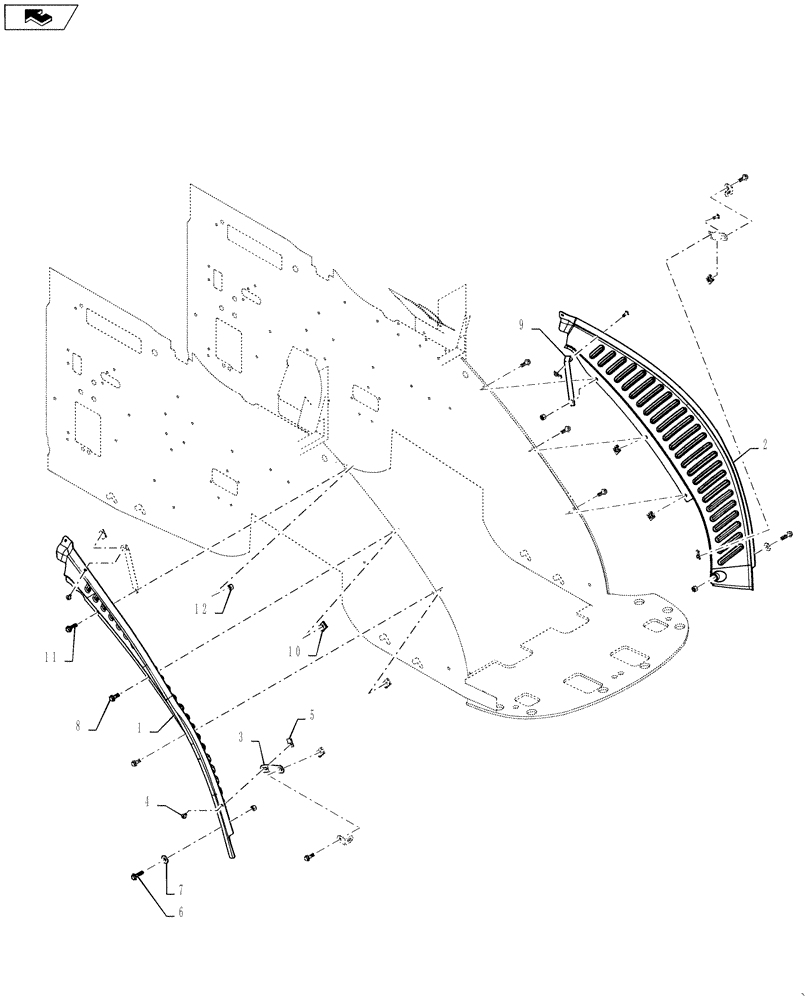

Запчасти Case IH STEIGER 600 (90.100.03[01]) - ENGINE DEBRIS SCREENS (90) - PLATFORM, CAB, BODYWORK AND DECALS

1

84401676

SCREEN

Engine Debris, RH, Serial Range: -ZCF130381

1шт.

2

84401678

SCREEN

Engine Debris, LH, Serial Range: -ZCF130381

1шт.

3

84396177

BRACKET, SUPPORTING

Screen, Serial Range: -ZCF130381

2шт.

4

847-3820

SERRATED SCREW,M8 x 20mm, Cl 10.9

, Serial Range: -ZCF130381

4шт.

5

87016586

SPRING NUT,Multi-Thd, M8 x 1.25

, Serial Range: -ZCF130381

4шт.

6

844-10040

BOLT,Hvy Hex, M10 x 40mm, Cl 8.8

, Serial Range: -ZCF130381

2шт.

7

895-25010

WASHER,11mm ID x 30mm OD x 2.5mm Thk

, Serial Range: -ZCF130381

2шт.

8

844-10030

BOLT,Hvy Hex, M10 x 30mm, Cl 8.8

, Serial Range: -ZCF130381

4шт.

9

84425969

BRACKET

Rear Screen, Serial Range: -ZCF130381

2шт.

10

833-40310

NUT,M10, U

, Serial Range: -ZCF130381

6шт.

11

844-10050

BOLT,Hvy Hex, M10 x 50mm, Cl 8.8

, Serial Range: -ZCF130381

2шт.

12

832-10410

NUT,M10 x 1.5, Cl 8

, Serial Range: -ZCF130381

2шт.
