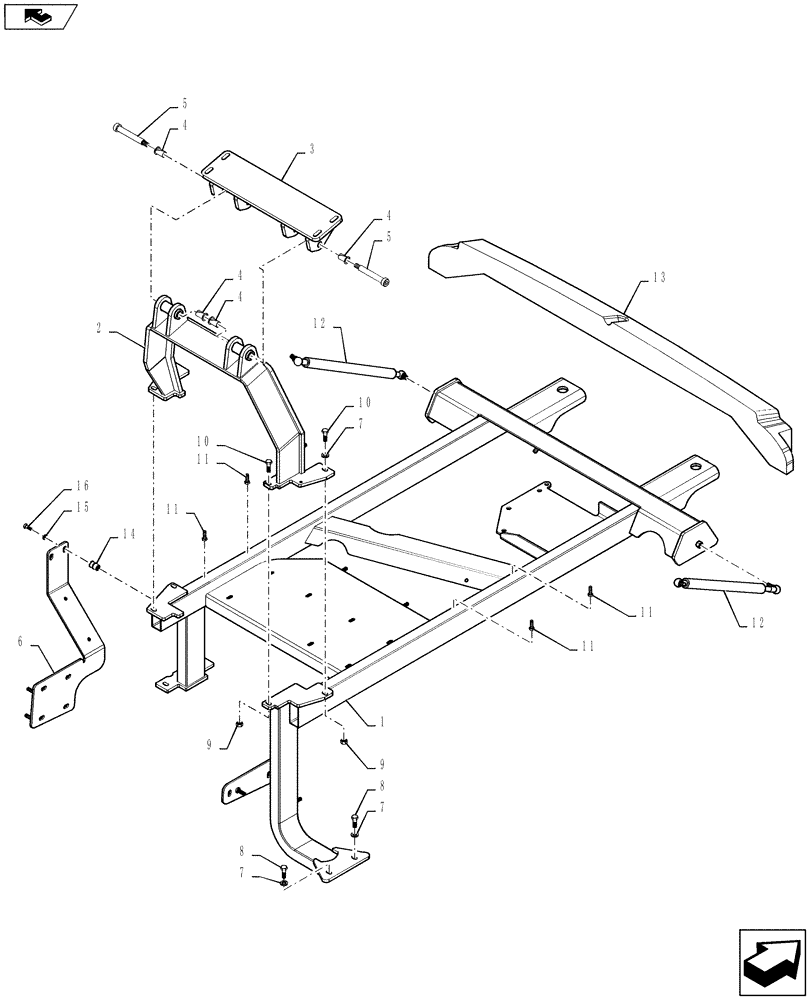

Запчасти Case IH STEIGER 600 (90.100.01[03]) - ENGINE HOOD, GRILLE, AND SUPPORT (90) - PLATFORM, CAB, BODYWORK AND DECALS

1

84398927

SUPPORT

Hood, Horizontal

1шт.

2

84358559

SUPPORT

Hood, Rear

1шт.

3

84355802

PLATE

Hood Pivot

1шт.

4

87711882

NYLON BEARING,15.9mm ID x 17.45mm OD x 29.34mm L

23 OD 16 ID x 29

4шт.

5

87711881

BOLT,M12 x 1.75 x 100mm

Shoulder, M16 X 100MM

2шт.

6

84291725

BRACKET

Precleaner Mounting

1шт.

7

895-11010

WASHER,11mm ID x 20mm OD x 2mm Thk

4шт.

8

627-10035

BOLT,Hex, M10 x 1.5 x 35mm, Cl 10.9, Full Thd

4шт.

9

829-1410

NUT,M10 x 1.5, Cl 10.9

4шт.

10

627-10035

BOLT,Hex, M10 x 1.5 x 35mm, Cl 10.9, Full Thd

4шт.

For service, remove studs from Rear Hood Support and replace with M10 bolts and washers

1шт.

11

613-8025

BOLT,Hex, M8 x 1.25 x 25mm, Cl 8.8, Full Thd

8шт.

12

87710344

CYLINDER

Hood, Serial Range: -ZBF125463

2шт.

12

84427096

GAS STRUT

Hood, Start Serial: ZBF125464

2шт.

13

84295992

FOAM

Top

1шт.

14

408566A1

INSERT,M8

Threaded

6шт.

15

895-11008

WASHER,9mm ID x 16mm OD x 1.6mm Thk

2шт.

16

627-8035

BOLT,Hex, M8 x 1.25 x 35mm, Cl 10.9, Full Thd

2шт.
