Запчасти Case IH STEIGER 600 (88.037.01) - DIA KIT - FRONT TOW HOOK (88) - ACCESSORIES

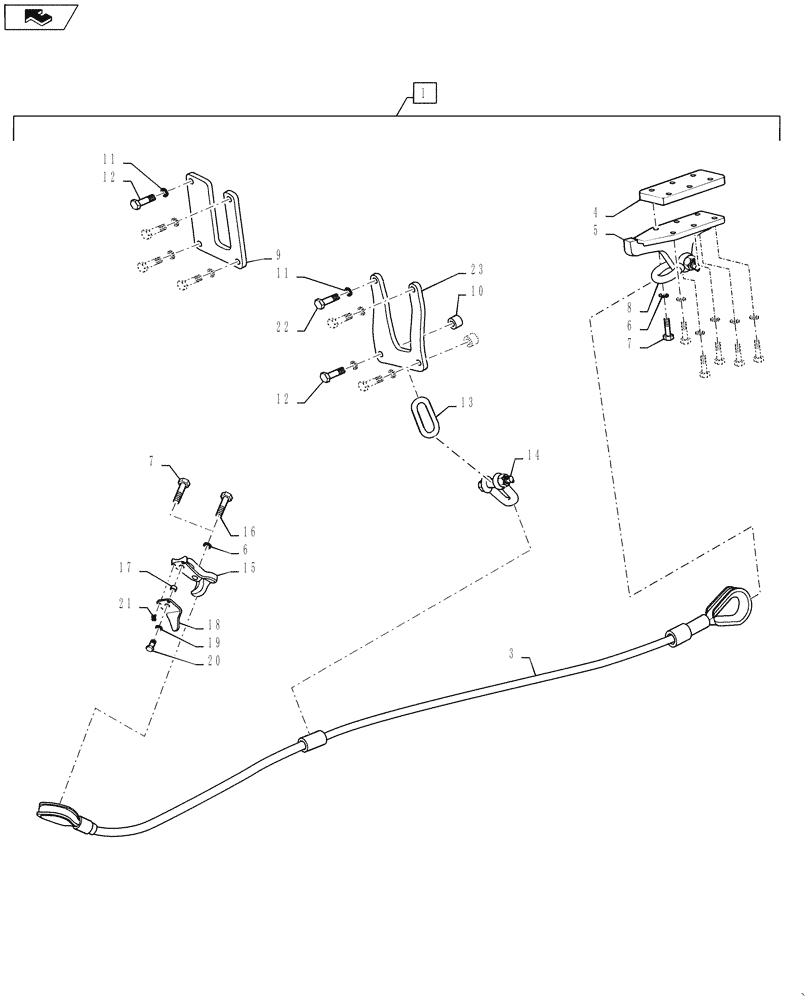

Схема запчастей Case IH STEIGER 600 - (88.037.01) - DIA KIT - FRONT TOW HOOK (88) - ACCESSORIES
22
17
18
5
7
14
3
23
8
1
10
7
11
16
20
13
6
21
12
11
19
home
9
12
15
6
4

Артикул

Название

Примечание

Количество

1

84145979

KIT

Front Tow Hook Installation - Steiger 350-600, Incl 2 - 23

1шт.

See Figure 37.100.07 for Assembly

1шт.

2

84146030

INSTRUCTION

Install

1шт.

3

379523A1

CABLE ASSY.,31.75mm OD x 4750mm L

Tow Cable

1шт.

4

87548081

MOUNTING PLATE

Tow Cable Mount

1шт.

5

87548080

MOUNTING PLATE

Tow Cable

1шт.

6

87016608

WASHER,25.8mm ID x 44.5mm OD x 5mm Thk

7шт.

7

86639184

BOLT,Hex, M24 x 80mm, Cl 10.9, Full Thd

7шт.

8

87539843

SHACKLE

1шт.

9

84131002

MOUNT

Tow Cable Center

1шт.

10

409751A1

SPACER,21.5mm ID x 50mm OD x 40mm Thk

MS20 x 40mm

2шт.

11

86625260

WASHER,21.8mm ID x 37.5mm OD x 4mm Thk

4шт.

12

9843612

BOLT,Hex, M20 x 2.5 x 100mm, Cl 10.9

4шт.

13

409753A1

LINK,196.85mm L

1.00 inch

1шт.

14

369838A1

SHACKLE

Tow Cable

1шт.

15

84194283

MOUNT

Front Tow Cable

1шт.

16

87015585

BOLT,Hex, M24 x 100mm, Cl 10.9

1шт.

17

70-5967T1

SPACER,16.7mm ID x 22.2mm OD x 11.2mm

Spacer

1шт.

18

84194615

LATCH HOOK

1шт.

19

86625266

WASHER,17.5mm ID x 30mm OD x 4mm Thk

1шт.

20

374835

BOLT,Hex, M16 x 2 x 40mm, Cl 10.9, Full Thd

1шт.

21

19-1041

LOCK PIN,7/16" x 2"

1шт.

22

11124831

BOLT,Hex, M20 x 55, 10.9, Full Thd

2шт.

23

84335072

MOUNT

Tow Cable - Front Axle

1шт.

Выбрано товаров: 24
