Запчасти Case IH STEIGER 600 (10.202.02[01]) - AIR INTAKE - STEIGER 550 & 600, QUADTRAC 550 & 600 (10) - ENGINE

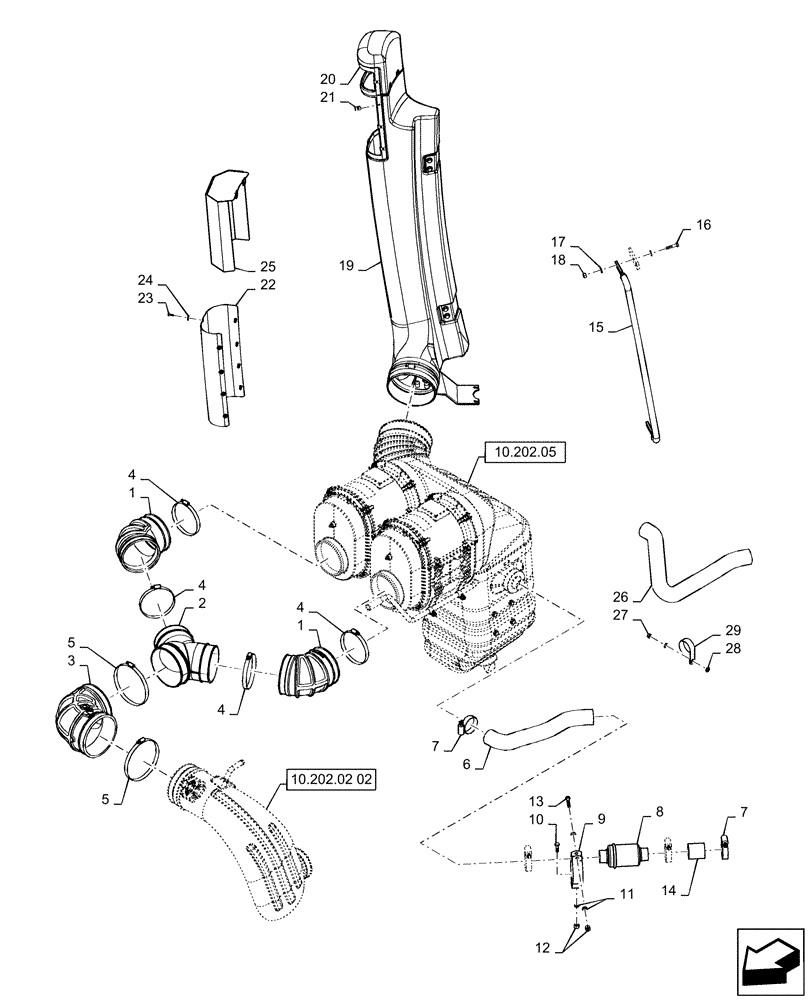

Схема запчастей Case IH STEIGER 600 - (10.202.02[01]) - AIR INTAKE - STEIGER 550 & 600, QUADTRAC 550 & 600 (10) - ENGINE
17
22
12
4
21
27
10.202.05
13
16
1
9
23
4
29
28
18
15
4
1
5
5
2
19
4
11
25
26
20
6
8
14
7
10
10.202.02 02
7
3
24

Артикул

Название

Примечание

Количество

1

84372722

INTAKE AIR HOSE

Elbow

2шт.

2

84372725

DUCT

Y-Tube

1шт.

3

84372724

INTAKE AIR HOSE

Elbow

1шт.

4

84319920

HOSE CLAMP,146mm - 168mm

CLAMP, Hose, 5.75/6.625 Constant Torque

4шт.

5

84246771

CLAMP,7-1/4" - 8-1/8", Worm Gear

Hose, 8.125/7.25 Constant Torque

2шт.

6

84290506

HOSE

Formed Rubber, Steiger 550 & 600 Only

1шт.

7

214-3240

HOSE CLAMP,1-3/4" - 2-5/8", HD Worm, W/ Liner

4шт.

8

87443913

VALVE

Check

1шт.

9

87300581

CLAMP

Valve

1шт.

10

627-8025

BOLT,Hex, M8 x 1.25 x 25mm, Cl 10.9, Full Thd

9шт.

11

895-11008

WASHER,9mm ID x 16mm OD x 1.6mm Thk

3шт.

12

832-10408

NUT,M8 x 1.25, Cl 8.8

4шт.

13

827-8045

BOLT,Hex, M8 x 1.25 x 45mm, Cl 10.9

1шт.

14

84157240

HOSE,50.80 mm ID x 65.00 mm, SAE 30R7, SAE J30

Jumper

1шт.

15

84255662

HANDLE

Grab

1шт.

16

827-10045

BOLT,Hex, M10 x 1.5 x 45mm, Cl 10.9

8шт.

17

895-15010

WASHER,11mm ID x 24mm OD x 2mm Thk

27шт.

18

832-46410

NUT,M10 x 1.5, Cl 8

8шт.

19

84265255

AIR INTAKE TUBE

Duct

1шт.

20

84270531

AIR INTAKE TUBE

Duct, Extention

1шт.

21

76047274

NUT,M6 x 1

12шт.

22

84270536

SCREEN

Air Inlet

1шт.

23

86016585

SCREW,Phil Pan Hd, M6 x 20mm, Cl 4.8

M6 X 20 PHD H 4.8 BZN

12шт.

24

86639315

WASHER,6.6mm ID x 18mm OD x 1.6mm Thk

6.6 X 18 X 1.6 MM CST BZN

12шт.

25

84283227

CAP

Shipping

1шт.

26

84282917

HOSE

Formed Rubber, Quadtrac 550 & 600 Only

1шт.

27

515-25635

CLAMP,2 1/2", Insul, 1/2" Bolt

1шт.

28

895-11010

WASHER,11mm ID x 20mm OD x 2mm Thk

2шт.

29

829-1410

NUT,M10 x 1.5, Cl 10.9

1шт.

Выбрано товаров: 29
