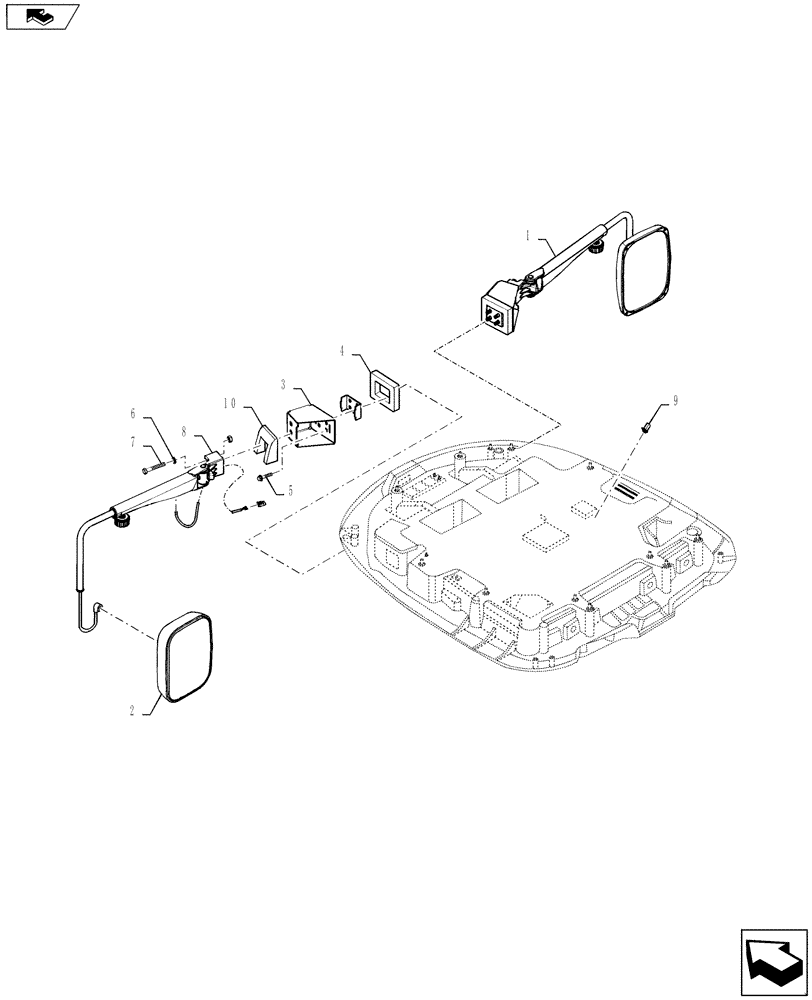

Запчасти Case IH STEIGER 600 (55.510.06) - EXTERIOR MIRRORS - ELECTRIC ADJUST (55) - ELECTRICAL SYSTEMS

1

87363082

ARM

Mirror, RH

1шт.

2

87363066

MIRROR,238mm x 328mm

Head, Electric

2шт.

3

84307672

BRACKET

Mirror

2шт.

4

84401325

FOAM INSULATION

Seal, Mirror

2шт.

5

87522185

FLANGE BOLT,Hex, M10 x 50mm, Cl 10.9

8шт.

6

86639330

WASHER,13.3mm ID x 24.5mm OD x 3mm Thk

4шт.

7

514-865

BOLT,Hex, M12 x 1.75 x 80mm, Cl 10.9

4шт.

8

87363077

ARM

Mirror, LH

1шт.

9

82037339

SWITCH ASSY

Mirror

1шт.

10

84307675

SEAL

Mirror

2шт.

11

276424A1

ELEC CONNECTOR,Female, 3 Pin

To Cab Harness (Not Shown)

1шт.

12

87531093

REPLACEMENT MIRROR

Acrylic (Not Shown)

1шт.
