(55.301.06) - POWER DISCONNECT - STARTER - WHEELED

Запчасти Case IH STEIGER 600 (55.301.06) - POWER DISCONNECT - STARTER - WHEELED (55) - ELECTRICAL SYSTEMS

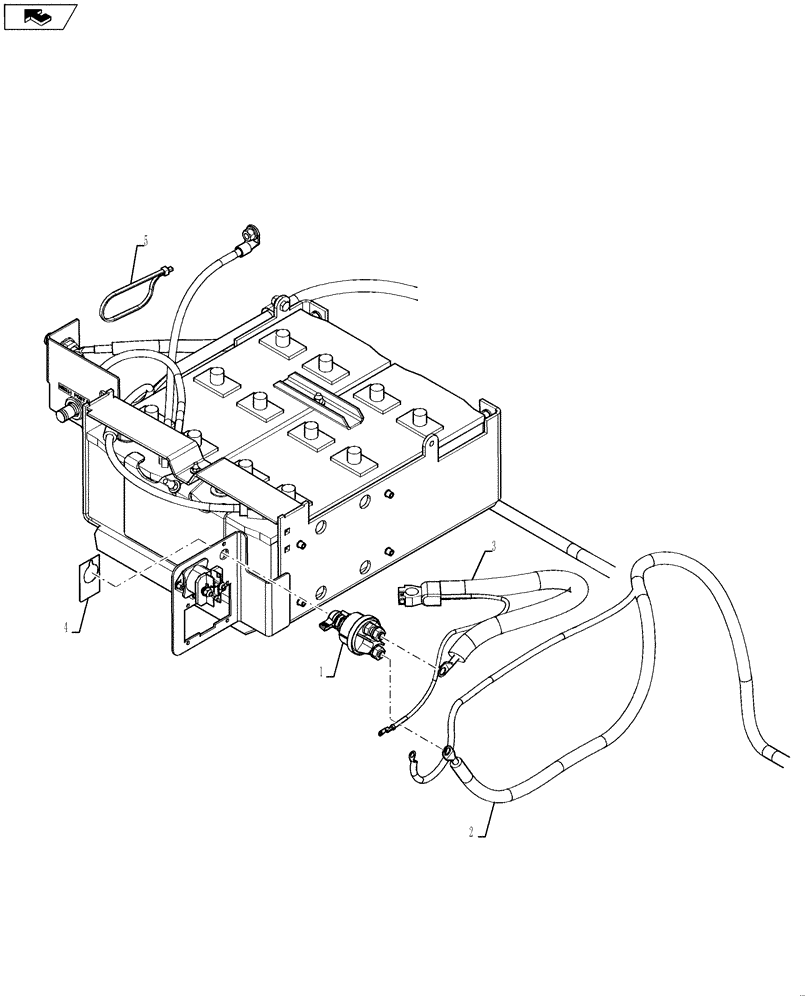

Схема запчастей Case IH STEIGER 600 - (55.301.06) - POWER DISCONNECT - STARTER - WHEELED (55) - ELECTRICAL SYSTEMS
2
1
5
3
home
4
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

87572750

SWITCH

Starter Disconnect

1шт.

2

84367595

CABLE

Starter To Disconnect

1шт.

3

84367612

CABLE

24V To Disconnect

1шт.

4

84367028

DECAL

24V Starter Disconnect

1шт.

5

L18331

CABLE TIE,375.9mm L, Nylon, Black

CABLE STRAP

1шт.
