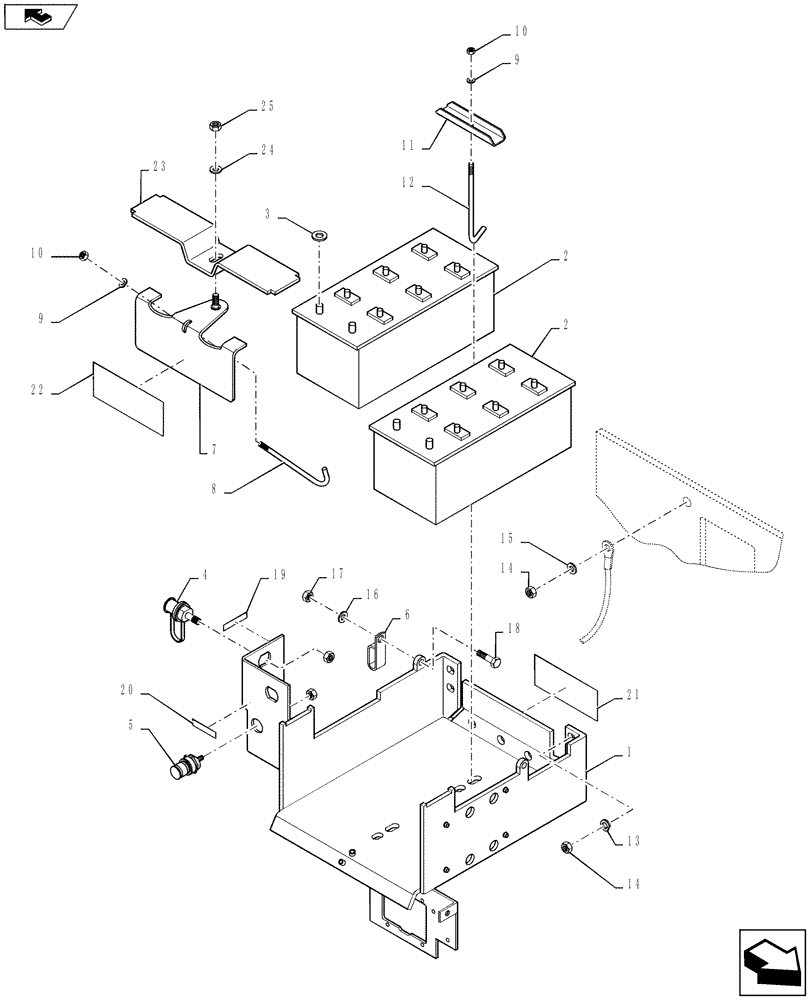

Запчасти Case IH STEIGER 600 (55.301.04) - BATTERIES AND TRAY ASSEMBLY - WHEELED (55) - ELECTRICAL SYSTEMS

1

84360205

BATTERY TRAY

Assembly

1шт.

2

BCH4DLTW

WET BATTERY,BCI 4DLT, 12V, 1000CCA

NA

2шт.

2

CCH4DLTW

WET BATTERY,BCI 4DLT, 12V, 1000CCA

Canada

2шт.

3

87637103

WASHER

Lead Post Corrosion

2шт.

4

1964554C1

TERMINAL

Terminal, Jump Start, Positive, Long

1шт.

5

84258928

TERMINAL CONNECTOR

Jump Start, Negative, Long

1шт.

6

L111928

CLAMP

Double

1шт.

7

84346930

BRACKET

Battery Hold-Down Assembly

1шт.

8

365357A1

ROD

Battery Hold-Down

1шт.

9

896-15008

WASHER,9mm ID x 21mm OD x 2.5mm Thk

2шт.

10

832-10408

NUT,M8 x 1.25, Cl 8.8

2шт.

11

84213124

BRACKET

Channel, Battery Hold-Down

1шт.

12

87413678

ROD

Battery Hold-Down

1шт.

13

892-11012

LOCK WASHER,M12

7шт.

14

829-1412

NUT,M12, Cl 10.9

8шт.

15

895-11012

WASHER,13.5mm ID x 24mm OD x 2.5mm Thk

1шт.

16

895-18010

WASHER,10.5mm ID x 18mm OD x 1.6mm Thk

1шт.

17

829-1410

NUT,M10 x 1.5, Cl 10.9

1шт.

18

627-10020

BOLT,Hex, M10 x 1.5 x 20mm, Cl 10.9, Full Thd

1шт.

19

87427096

DECAL

Charging Post

1шт.

20

87427317

DECAL

Negative Post

1шт.

21

87427097

DECAL

Danger, Battery

1шт.

22

87422330

IMPORTANT DECAL

Battery

1шт.

23

84315779

BRACKET

Battery Post Shield

1шт.

24

895-25006

WASHER,6.6mm ID x 18mm OD x 1.6mm Thk

1шт.

25

832-46406

NUT,M6 x 1, Cl 8

1шт.
