(55.100.33[02]) - HARNESS, SPOOL ADAPTER - EHR VALVES - 5, 6, & 8 SPOOL

Запчасти Case IH STEIGER 600 (55.100.33[02]) - HARNESS, SPOOL ADAPTER - EHR VALVES - 5, 6, & 8 SPOOL (55) - ELECTRICAL SYSTEMS

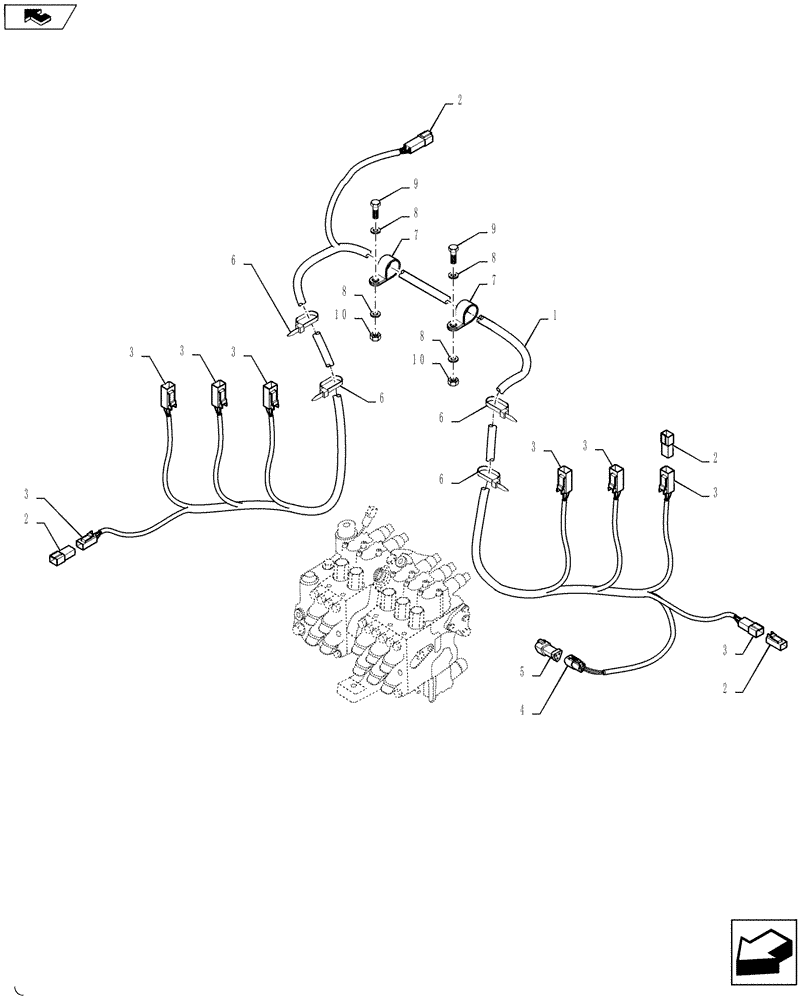

Схема запчастей Case IH STEIGER 600 - (55.100.33[02]) - HARNESS, SPOOL ADAPTER - EHR VALVES - 5, 6, & 8 SPOOL (55) - ELECTRICAL SYSTEMS
6
9
home
2
2
8
7
8
3
1
2
10
2
7
3
3
8
5
10
4
8
6
3
6
6
3
9
3
3
3
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

84158327

WIRE HARNESS

1шт.

2

225326C1

ELEC CONNECTOR,Male, 4 Pin

4 Pin, Remote Valve, To Rear Frame Harness

4шт.

3

239451A1

MULTIPOLE CONNECTOR,Female, 4 Pin

4 Pin, Remote Valve

8шт.

4

225295C1

ELEC CONNECTOR,Female, 3 Pin

3 Pin, Bus 2 Terminator

4шт.

5

84058092

CONTACT HOUSING,120 Ohm Resistor

3 Pin

1шт.

6

435437A1

CABLE TIE,3/16" x 7 1/4"

CABLE STRAP

7шт.

7

86637999

CLAMP,19mm, Coat, 11.9mm Bolt Hole, P Type

2шт.

8

86624176

WASHER,11mm ID x 20mm OD x 2mm Thk

4шт.

9

9515003

BOLT,Hex, M10 x 1.5 x 30mm, Cl 10.9

2шт.

10

86500689

NUT,M10 x 1.5, Cl 10

2шт.
