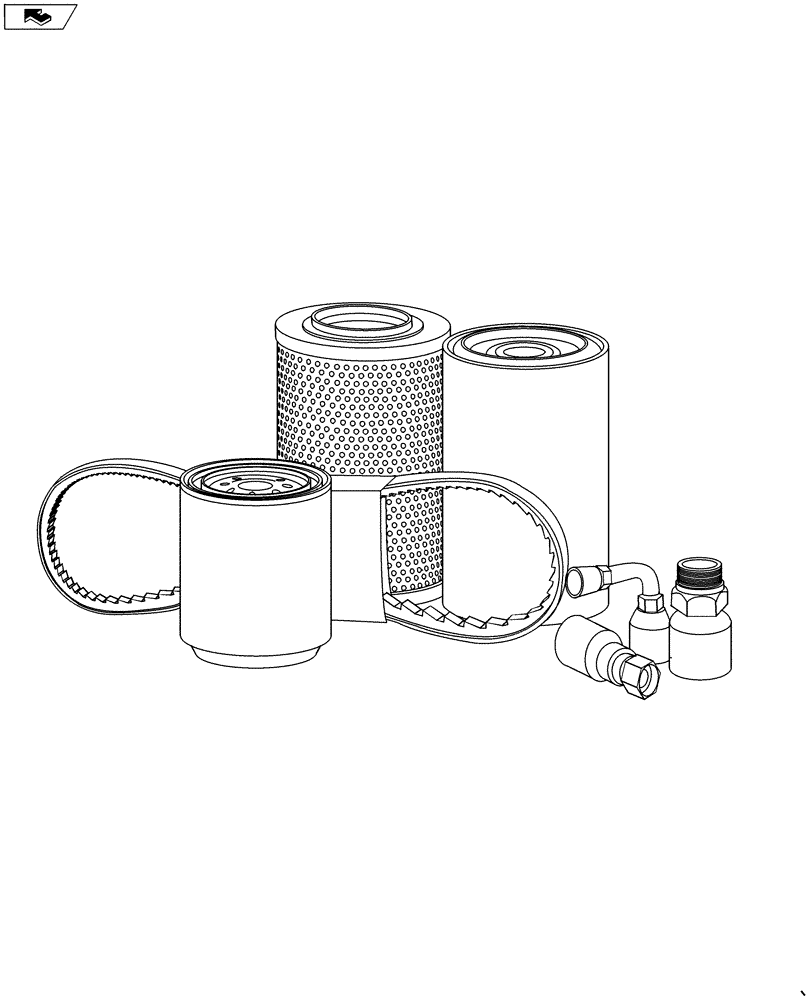

Запчасти Case IH STEIGER 600 (05.100.03[11]) - FILTERS & CAPACITIES, STEIGER 600 TIER 2 (05) - SERVICE & MAINTENANCE

Схема запчастей Case IH STEIGER 600 - (05.100.03[11]) - FILTERS & CAPACITIES, STEIGER 600 TIER 2 (05) - SERVICE & MAINTENANCE
home

Артикул

Название

Примечание

Количество

*

REF

INSTRUCTION

Antifreeze, Engine Coolant Drain And Flush, Case IH ES COMPLEAT, 18.4 Gal (70 L)

1шт.

1

84572228

ELEMENT

Engine Oil Filter

1шт.

*

REF

INSTRUCTION

Oil, Engine Crankcase, Case IH Akcela Unitek CJ-4, 7.2 Gal (27.25 L)

1шт.

2

87356545

AIR FILTER

Primary

2шт.

3

87356547

AIR FILTER

Secondary

2шт.

4

5801470547

ELEMENT

Engine Breather

1шт.

5

87684088

CAB FILTER,CAB

Cab

1шт.

6

386751A1

CAB FILTER

Cab Recirculated Air

1шт.

7

283094A1

FILTER

Cab Recirculation

1шт.

8

84211797

AIR FILTER

HVAC Intake, Cab Roof

1шт.

9

84196445

HYDRAULIC OIL FILTER

Spin On, Standard Flow

1шт.

10

84196445

HYDRAULIC OIL FILTER

Spin On, High Flow

2шт.

11

87408715

FILTER STRAINER

Hydraulic Tank Screen

2шт.

12

87714123

FILTER

Main Aux Valve, 100-150 Micron

1шт.

13

1957867C1

FILTER SCREEN

Hydraulic Pump, High Flow

1шт.

*

REF

INSTRUCTION

Hydraulic Oil, Case IH Akcela NEXPLORE, 66 Gal (250 L)

1шт.

If Three Point HItch Equipped, Add 5 Gal (19 L)

1шт.

14

47833556

HYDRAULIC OIL FILTER,98.8mm OD x 239.8mm L x 500 Microns

Transmission Lube Filter

1шт.

15

427524A1

BREATHER

Transmission

1шт.

16

87362229

FILTER SCREEN

Powershift Regulator Valve

1шт.

17

428677A1

FILTER

Conical, Powershift Regulator Valve

1шт.

*

REF

INSTRUCTION

Transmission Oil, Case IH Akcela HY-TRAN Ultra, 18 Gal (68 L)

1шт.

18

84423586

FUEL FILTER

w/Water Separator, Frame Mounted

1шт.

19

84572242

CARTRIDGE, FUEL FILT

Engine Mounted

1шт.

*

REF

INSTRUCTION

Grease, Chassis Lube, Akcela Multi-Purpose 251H EP, As Required

1шт.

Выбрано товаров: 25
