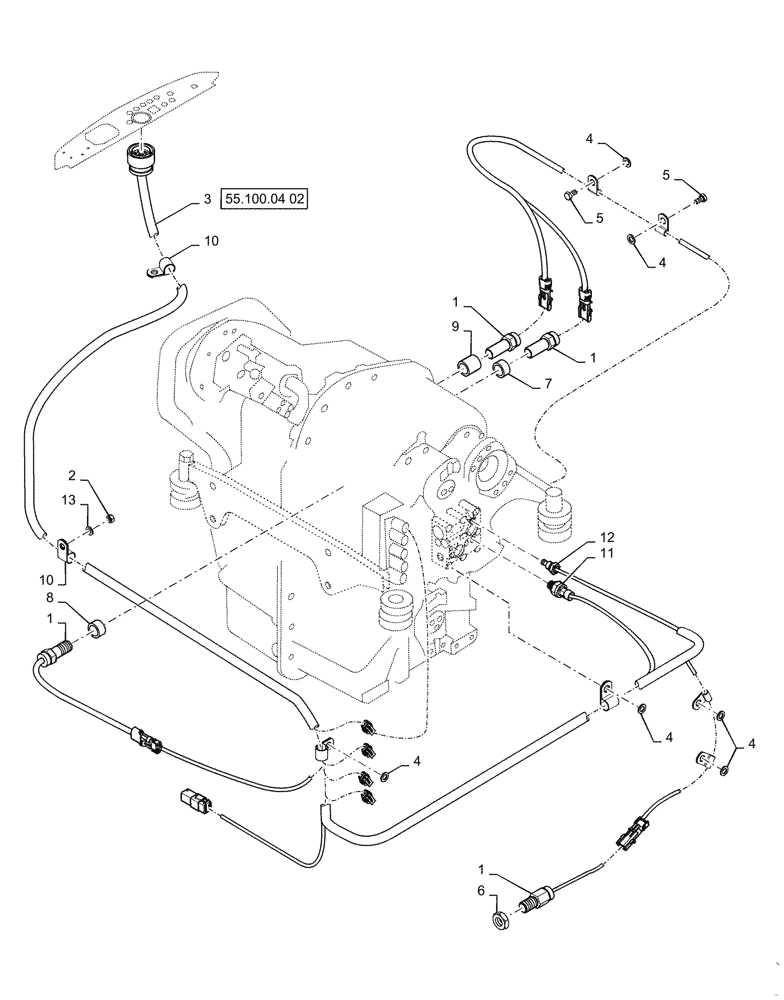

Запчасти Case IH STEIGER 600 (55.100.05[01]) - HARNESS - TRANSMISSION LAYOUT (55) - ELECTRICAL SYSTEMS

1

47942959

Transmission Gear Speed (Variable Reluctance Probe)

SENSOR

4шт.

2

829-1408

NUT,Hex, M8 x 1.25, Cl 10.9

1шт.

3

84195943

WIRE HARNESS

Transmission, Refer to 55.100.05(01)

1шт.

4

895-18010

WASHER,10.5mm ID x 18mm OD x 1.6mm Thk

6шт.

5

627-8016

BOLT,Hex, M8 x 1.25 x 16mm, Cl 10.9, Full Thd

2шт.

6

934120R1

THIN NUT,Thin, M20 x 1.5

1шт.

7

84233293

SPACER,20.5mm ID x 28.5mm OD x 14.4mm W

14.389mm Speed Sensor, Short Yellow Zinc, 8C & 8.5C Only, Spacer Not Used For 9C

1шт.

8

87351748

SPACER,20.5mm ID x 28.5mm OD x 15.22mm W

15.217mm Speed Sensor, Red

1шт.

9

87351750

SPACER,20.5mm ID x 28.5mm OD x 29.39mm W

29.385mm Speed Sensor, Long Yellow Zinc, 8C & 8.5C Only

1шт.

9

87715474

SPACER,20.5mm ID x 28.5mm OD x 21.19mm W

21.185mm Speed Sensor, Yellow Zinc, 9C Only

1шт.

10

515-24190

CLAMP,3/4", Insul, 7/16" Bolt

2шт.

11

86987513

SENSOR

PWM Transmission Pressure

1шт.

12

87521424

TEMPERATURE SENDER

Transmission

1шт.

13

895-11008

WASHER,9mm ID x 16mm OD x 1.6mm Thk

1шт.
