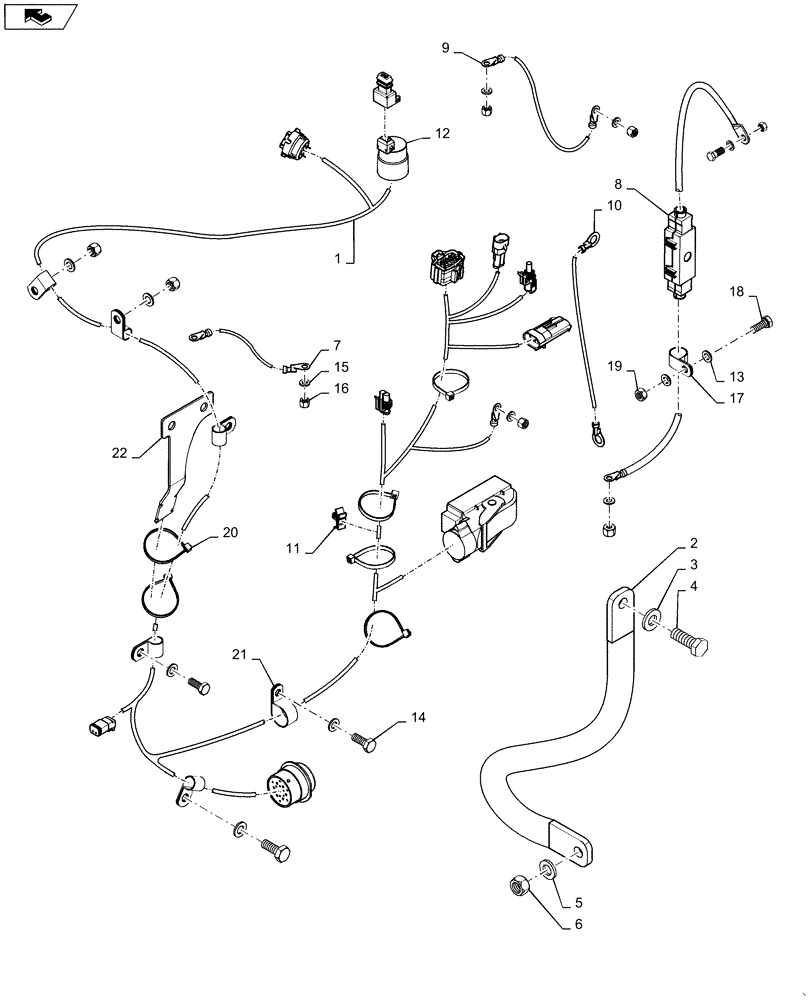

Запчасти Case IH STEIGER 600 (55.100.03[02]) - ENGINE HARNESS GROUP - 13L 2-STAGE - STEIGER 550 & 600, QUADTRAC 550 & 600 (55) - ELECTRICAL SYSTEMS

1

84388309

WIRE HARNESS

Engine, Iveco 13L 2-Stage, Refer To 55.100.04(02)

1шт.

2

87362573

GROUND CABLE

Engine to Chassis

1шт.

3

896-15018

WASHER,20mm ID x 41mm OD x 5mm Thk

1шт.

4

87384304

BOLT,Hex, M18 x 2 x 50mm, Cl 10.9

M18 x 2 x 50 CL10.9

1шт.

5

896-11012

WASHER,13.5mm ID x 24mm OD x 3mm Thk

1шт.

6

829-1412

NUT,M12, Cl 10.9

1шт.

7

87548592

CABLE

Grid Heater To Ground

1шт.

8

84364235

CABLE

Alternator To Grid Heater Relay, Incl 23

1шт.

9

84364241

CABLE,345mm L

Grid Heater Relay To Grid Heater

1шт.

10

87353517

GROUND CABLE

AC Compressor

1шт.

11

392699A1

FASTENER

Tree

1шт.

12

293797A1

RESTRICTION SWITCH

Air

1шт.

13

895-11008

WASHER,9mm ID x 16mm OD x 1.6mm Thk

9шт.

14

627-8020

BOLT,Hex, M8 x 1.25 x 20mm, Cl 10.9, Full Thd

3шт.

15

895-11006

WASHER,6.6mm ID x 12mm OD x 1.6mm Thk

2шт.

16

832-10406

NUT,M6 x 1, Cl 8

2шт.

17

515-22190

CLAMP,3/4", Insul, 5/16" Bolt

1шт.

18

627-8025

BOLT,Hex, M8 x 1.25 x 25mm, Cl 10.9, Full Thd

1шт.

19

832-10408

NUT,M8 x 1.25, Cl 8.8

5шт.

20

L11541

CABLE TIE,203.2mm L, Nylon

15 IN

4шт.

21

515-22254

CLAMP,1", Insul, 5/16" Bolt

1шт.

22

84423577

BRACKET

Engine Harness Guide

1шт.

23

87319927

FUSE

250 Amp (Not Shown)

1шт.
