Запчасти Case IH STEIGER 600 (44.100.32) - HUBS & WHEEL MOUNTING, 140MM AXLE - 600 SERIES AXLE (44) - WHEELS

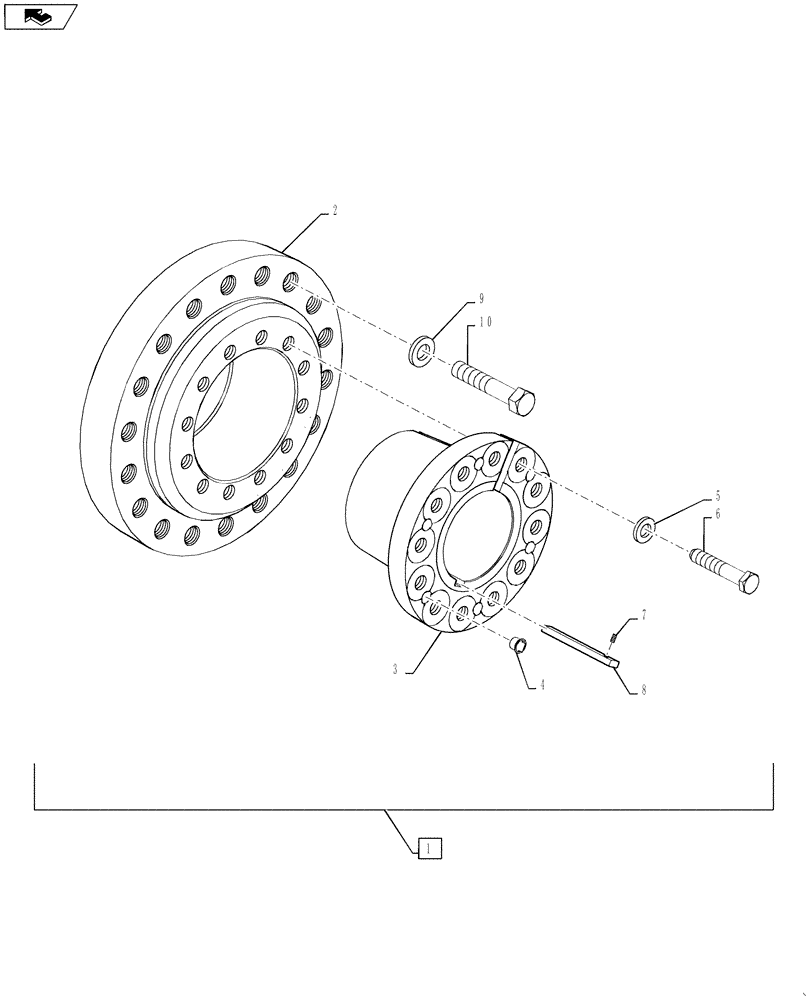

Схема запчастей Case IH STEIGER 600 - (44.100.32) - HUBS & WHEEL MOUNTING, 140MM AXLE - 600 SERIES AXLE (44) - WHEELS
5
home
9
3
7
10
6
8
4
2
1

Артикул

Название

Примечание

Количество

1

84396659

HUB

Assembly, 140mm Axle, 18-Bolt, Incl 2 - 10

1шт.

2

87698871

HUB

Wheel, 18-Bolt

1шт.

3

87698873

BUSHING

140mm

1шт.

4

303401A1

PLUG

Bushing Jackbolt

6шт.

5

396-31081

WASHER,20.63mm ID x 38.1mm OD x 5.56mm Thk

12шт.

6

228273A1

BOLT,Hex, M20 x 2.5 x 110mm, Cl 10.9

12шт.

7

38-11608

LOCK PIN,1/4" x 1/2", Slotted

1шт.

8

A63219

KEY

3/4 x 6

1шт.

9

896-11024

WASHER,26mm ID x 44mm OD x 5mm Thk

1шт.

10

827-24100

BOLT,Hex, M24 x 3 x 100mm, Cl 10.9

1шт.

Выбрано товаров: 10
