(39.100.10[02]) - FUEL TANK CAP AND BREATHER - EUROPE, ASN ZBF126024

Запчасти Case IH STEIGER 600 (39.100.10[02]) - FUEL TANK CAP AND BREATHER - EUROPE, ASN ZBF126024 (39) - FRAMES AND BALLASTING

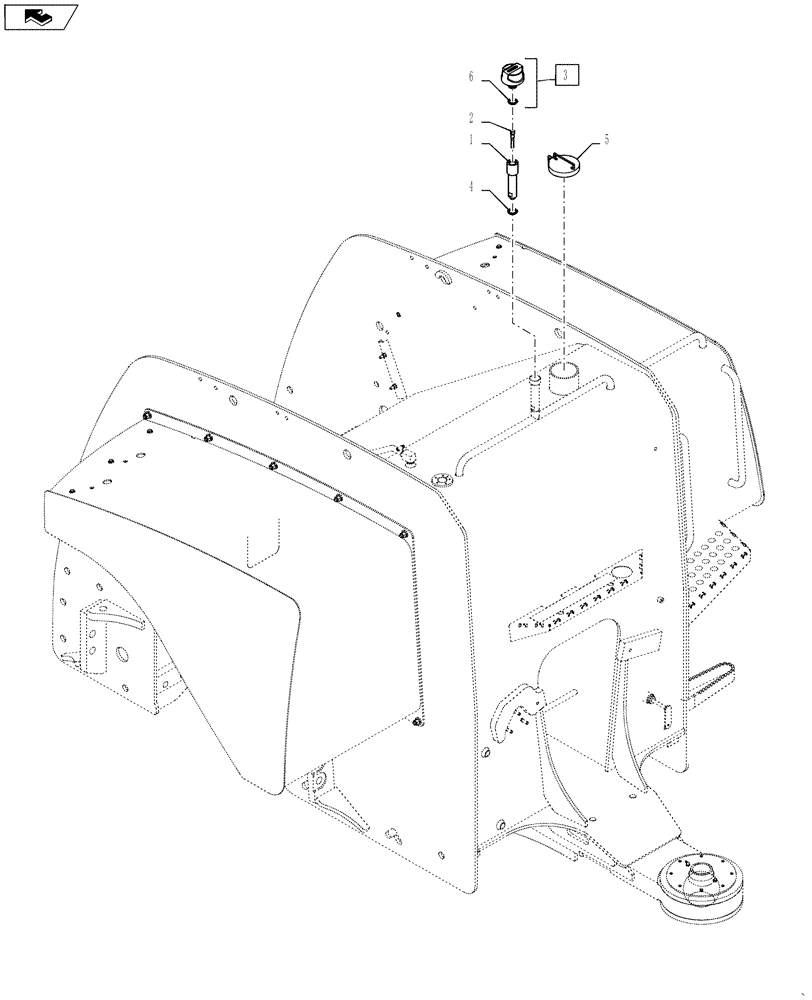

Схема запчастей Case IH STEIGER 600 - (39.100.10[02]) - FUEL TANK CAP AND BREATHER - EUROPE, ASN ZBF126024 (39) - FRAMES AND BALLASTING
3
5
4
1
2
6
home
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

84418177

VENTING SCREW

Fuel Tank Breather Boss

1шт.

2

84416905

VENT

Fuel Tank

1шт.

3

84412494

BREATHER

Incl 6

1шт.

4

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

1шт.

5

84403709

FILLER CAP,Locking

Fuel, Locking

1шт.

6

167266

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

1шт.

Выбрано товаров: 6
