Запчасти Case IH STEIGER 600 (39.100.09) - AUXILIARY VALVE MOUNT & OPTIONAL PTO BRACKET - WITHOUT PTO & THREE POINT HITCH (39) - FRAMES AND BALLASTING

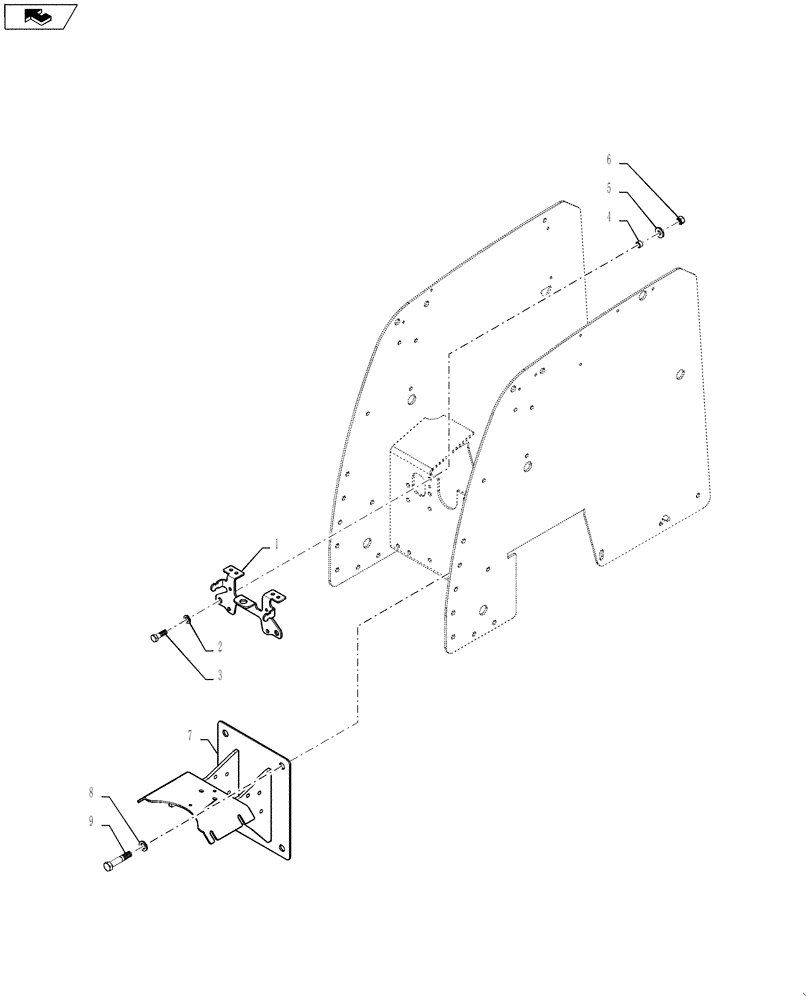

Схема запчастей Case IH STEIGER 600 - (39.100.09) - AUXILIARY VALVE MOUNT & OPTIONAL PTO BRACKET - WITHOUT PTO & THREE POINT HITCH (39) - FRAMES AND BALLASTING
7
5
2
3
6
9
8
4
1
home

Артикул

Название

Примечание

Количество

1

84271889

BRACKET

Optional PTO

1шт.

2

896-11016

WASHER,17.5mm ID x 30mm OD x 4mm Thk

2шт.

3

627-16050

BOLT,Hex, M16 x 2 x 50mm, Cl 10.9, Full Thd

2шт.

4

70-5967T1

SPACER,16.7mm ID x 22.2mm OD x 11.2mm

22 OD 17 ID 11 W

2шт.

5

496-41066

WASHER,5/8" ID x 1-1/2" OD x 3/16" Thk

2шт.

6

829-1416

NUT,M16, Cl 10

2шт.

7

87311759

MOUNTING PARTS

Auxiliary Valve

1шт.

8

896-11020

WASHER,22mm ID x 37mm OD x 4mm Thk

4шт.

9

827-20100

BOLT,Hex, M20 x 2.5 x 100mm, Cl 10.9

4шт.

Выбрано товаров: 9
