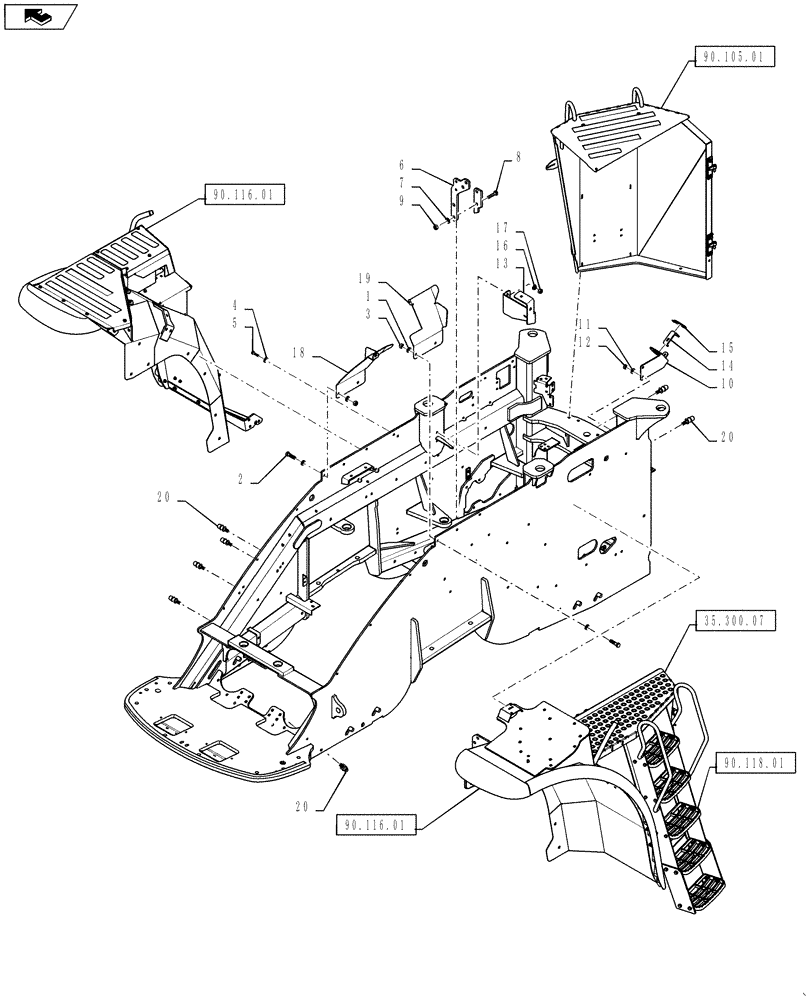

Запчасти Case IH STEIGER 600 (39.100.01) - FRONT FRAME - WITHOUT SUSPENDED CAB - WHEELED (39) - FRAMES AND BALLASTING

1

896-11012

WASHER,13.5mm ID x 24mm OD x 3mm Thk

10шт.

2

627-12045

BOLT,Hex, M12 x 1.75 x 45mm, Cl 10.9, Full Thd

4шт.

3

829-1412

NUT,M12, Cl 10.9

6шт.

4

896-15012

WASHER,13.5mm ID x 28mm OD x 4mm Thk

2шт.

5

827-12050

BOLT,Hex, M12 x 1.75 x 50mm, Cl 10.9

2шт.

6

84270878

SUPPORT

Fender

1шт.

7

896-15016

WASHER,17.5mm ID x 34mm OD x 5mm Thk

8шт.

8

627-16055

BOLT,Hex, M16 x 2 x 55mm, Cl 10.9, Full Thd

4шт.

9

829-1416

NUT,M16, Cl 10

4шт.

10

84475372

BRACKET

DEF, LH Fill

1шт.

11

895-15010

WASHER,11mm ID x 24mm OD x 2mm Thk

2шт.

12

829-1410

NUT,M10 x 1.5, Cl 10.9

2шт.

13

84356265

BRACKET, SUPPORTING

Routing Support

1шт.

14

84360092

BRACKET, SUPPORTING

DEF, LH Fill Lock

1шт.

15

L18331

CABLE TIE,375.9mm L, Nylon, Black

CABLE STRAP

1шт.

16

896-11008

WASHER,9mm ID x 17mm OD x 2mm Thk

2шт.

17

829-1408

NUT,Hex, M8 x 1.25, Cl 10.9

2шт.

18

84376411

FAN BOTTOM SHIELD

RH Side

1шт.

19

84376409

FAN BOTTOM SHIELD

LH Side

1шт.

20

426285A1

STUD

Threaded, Captive

31шт.
