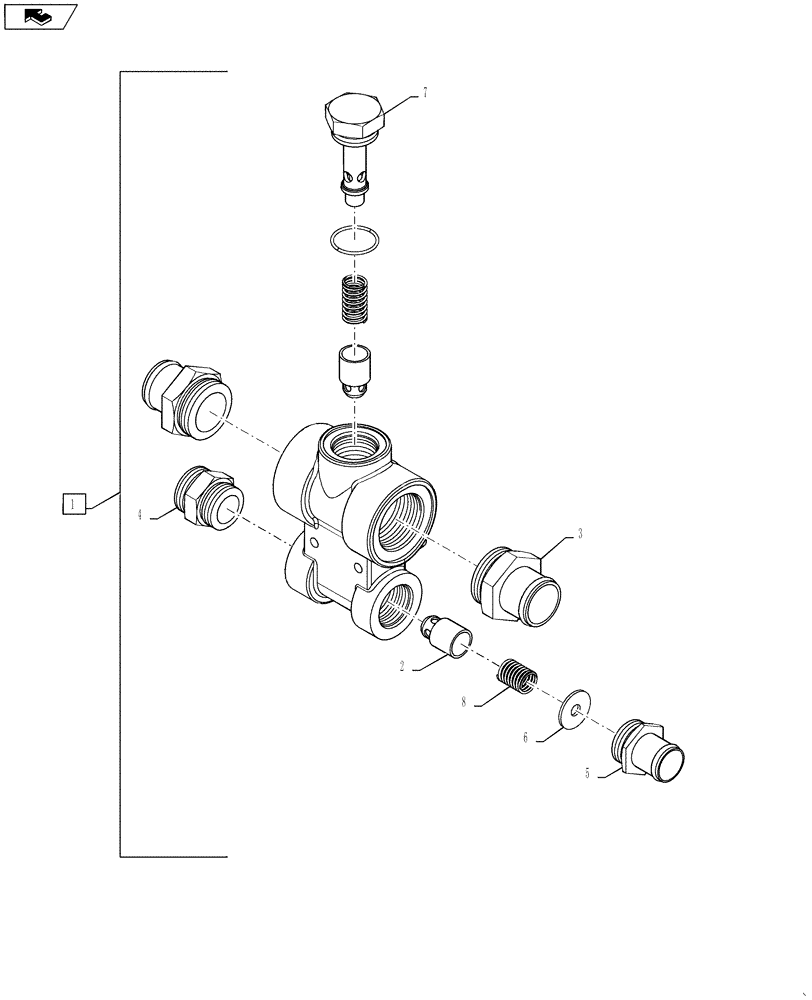

Запчасти Case IH STEIGER 600 (35.962.02) - CHARGE RELIEF VALVE (35) - HYDRAULIC SYSTEMS

1

84197046

VALVE

Assembly, charge Relief, Incl 2 - 8

1шт.

2

107453A1

PLUNGER

Poppet, Lube Relief

2шт.

3

84188435

HYD CONNECTOR,2-1/2” - 12 x 2-15/16” L

2 HOSE 2-1/2-12

2шт.

4

201-148

ELBOW UNION

Union Elbow CONNECTOR, 1.5 ORFS-ORB 1.5

1шт.

5

217-174

FITTING,1-1/2" Hose Barb x 1-7/8" - 12 Male ORB

1шт.

6

84193990

WASHER,12.9mm ID x 43mm OD x 3mm Thk

Spring Retainer/Orifice

1шт.

7

84196675

PLUG,1-7/8" - 12

Check Retainer

1шт.

8

431858A1

SPRING

Relief

2шт.
