Запчасти Case IH STEIGER 600 (35.962.01) - SOLENOID VALVE, DIFFERENTIAL LOCK (35) - HYDRAULIC SYSTEMS

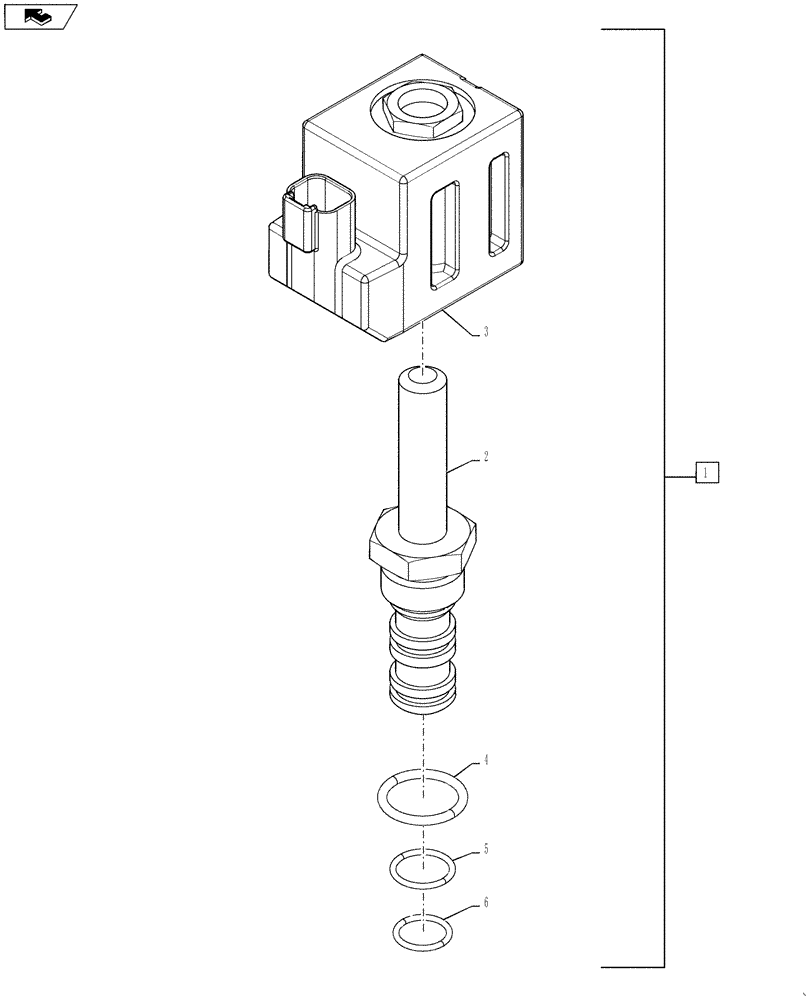

Схема запчастей Case IH STEIGER 600 - (35.962.01) - SOLENOID VALVE, DIFFERENTIAL LOCK (35) - HYDRAULIC SYSTEMS
3
5
2
6
4
home
1

Артикул

Название

Примечание

Количество

1

384977A1

VALVE

Solenoid, Incl 2 - 6

1шт.

2

384976A1

CARTRIDGE

Solenoid

1шт.

3

353941A1

COIL

Solenoid, 2GPM

1шт.

4

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

1шт.

5

238-5015

O-RING,0.07" Thk x 0.551" ID, -15, Cl 5, 75 Duro

1шт.

6

238-5014

O-RING,0.07" Thk x 0.489" ID, -14, Cl 5, 75 Duro

1шт.

Выбрано товаров: 6
