Запчасти Case IH STEIGER 600 (35.300.07) - HYDRAULIC OIL TANK - WHEELED (35) - HYDRAULIC SYSTEMS

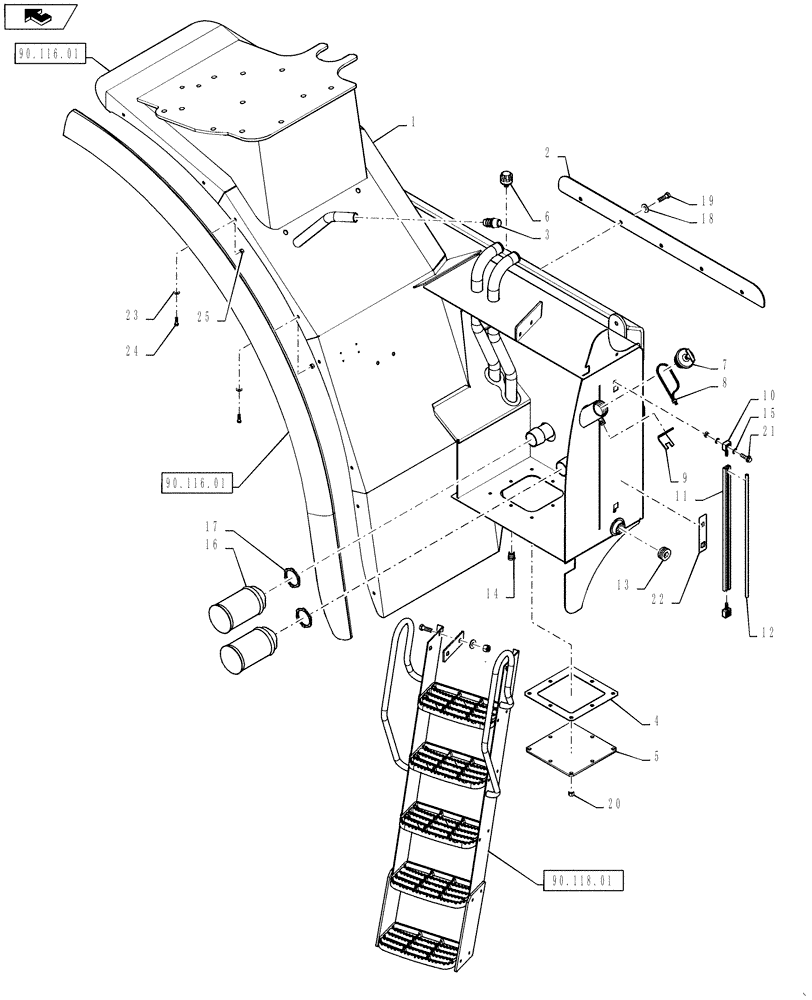

Схема запчастей Case IH STEIGER 600 - (35.300.07) - HYDRAULIC OIL TANK - WHEELED (35) - HYDRAULIC SYSTEMS
18
1
14
12
home
9
6
3
23
16
5
90.116.01
24
20
90.118.01
90.116.01
21
7
2
4
10
8
25
15
11
19
22
13
17

Артикул

Название

Примечание

Количество

1

84332604

TANK

Hydraulic Oil / LH Fender

1шт.

2

84348149

BRACKET, SUPPORTING

Step Kick Plate

1шт.

3

363226A1

BUMPER

Door

1шт.

4

84183968

GASKET

Hydraulic Tank Access

1шт.

5

84183969

COVER

Hydraulic Tank Access

1шт.

6

1971726C1

BREATHER,1/4" - 18

1шт.

7

325737A1

CAP

Hydraulic Oil Tank Filler

1шт.

8

L18331

CABLE TIE,375.9mm L, Nylon, Black

CABLE STRAP 15 IN

1шт.

9

87646822

BRACKET

Retainer, Fill Cap Lock

1шт.

10

352767A1

FITTING

Sight Gauge

2шт.

11

349869A1

CHANNEL

Hydraulic Sight Gauge

1шт.

12

355179A1

HOSE

Hydraulic Sight Gauge

1шт.

13

217-445

PLUG,Hex Soc, 1-1/4" - 11-1/2 NPTF

1шт.

14

217-410

PLUG,Hex Hd, 1/2" - 14 NPT

1шт.

15

337248A1

O-RING,0.139" Thk x 0.484" ID, -206, Cl 5, 75 Duro

4шт.

16

87408715

FILTER STRAINER

Strainer, Suction

2шт.

17

435032A1

LOCK NUT

2шт.

18

895-11010

WASHER,11mm ID x 20mm OD x 2mm Thk

5шт.

19

627-10020

BOLT,Hex, M10 x 1.5 x 20mm, Cl 10.9, Full Thd

5шт.

20

832-10408

NUT,M8 x 1.25, Cl 8.8

8шт.

21

844-10035

BOLT,Hex, M10 x 35mm, Cl 8.8

2шт.

22

84308758

DECAL

Hydraulic Oil Level

1шт.

23

896-11012

WASHER,13.5mm ID x 24mm OD x 3mm Thk

15шт.

24

627-12045

BOLT,Hex, M12 x 1.75 x 45mm, Cl 10.9, Full Thd

5шт.

25

829-1412

NUT,M12, Cl 10.9

10шт.

Выбрано товаров: 25
