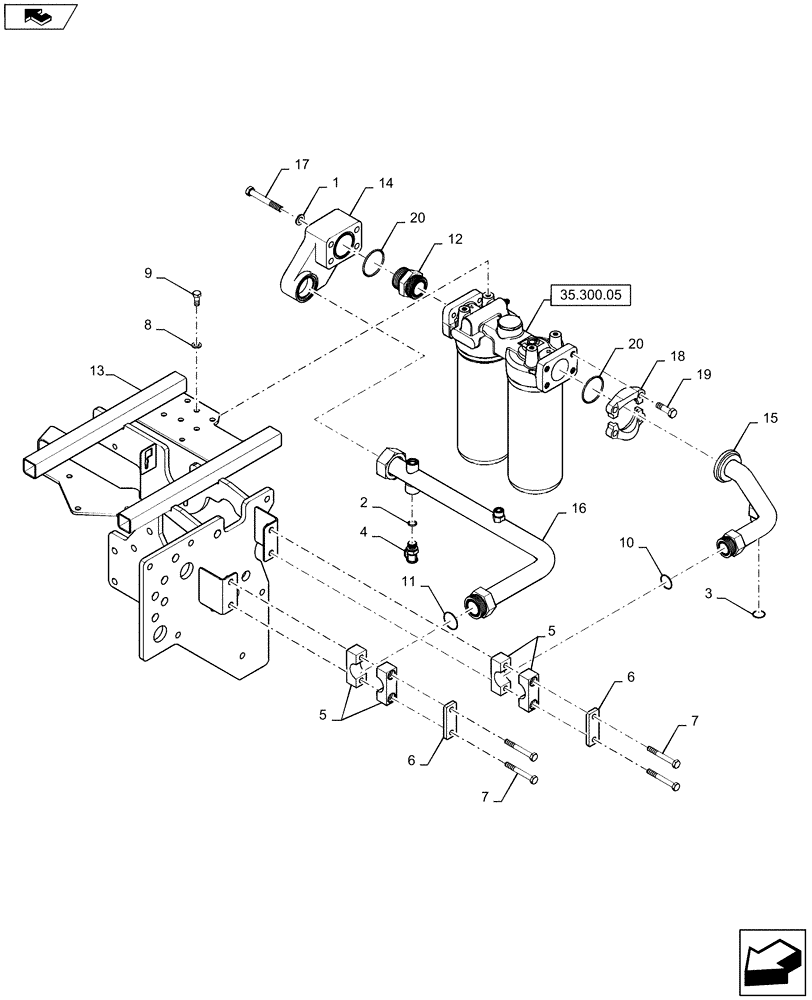

Запчасти Case IH STEIGER 600 (35.300.02) - HYDRAULICS - FILTER, FILTER SUPPORT, & PLUMBING, HIGH FLOW - WHEELED (35) - HYDRAULIC SYSTEMS

1

895-11012

WASHER,13.5mm ID x 24mm OD x 2.5mm Thk

4шт.

2

238-6014

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

1шт.

3

238-6021

O-RING,15/16 X 1 - 1/16, Cl 6

1шт.

4

358968A1

FITTING

Diagnostic

1шт.

5

8500621

BLOCK

Tube Mounting

2шт.

6

8500858

PLATE

Clamp Cover

2шт.

7

827-10080

BOLT,Hex, M10 x 1.5 x 80mm, Cl 10.9

4шт.

8

895-11010

WASHER,11mm ID x 20mm OD x 2mm Thk

4шт.

9

627-10025

BOLT,Hex, M10 x 1.5 x 25mm, Cl 10.9, Full Thd

4шт.

10

238-6025

O-RING,0.07" Thk x 1.176" ID, -25, Cl 6, 90 Duro

1шт.

11

238-6029

O-RING,0.07" Thk x 1.489" ID, -29, Cl 6, 90 Duro

1шт.

12

700-148

HYD CONNECTOR,2" - 12 Male ORFS x M48 x 2 Male ORB

1шт.

13

84295567

SUPPORT

Assy

1шт.

14

84191470

ADAPTER

Dual Filter

1шт.

15

84183785

HYD TUBE

Filter Inlet, High Flow

1шт.

16

84543509

HYD TUBE

Filter Outlet, High Flow, Start Serial: ZCF131137

1шт.

17

827-12090

BOLT,Hex, M12 x 1.75 x 90mm, Cl 10.9

4шт.

18

A14141

FLANGE

Split Half Clamp, 2.0

2шт.

19

627-12040

BOLT,Hex, M12 x 1.75 x 40mm, Cl 10.9, Full Thd

4шт.

20

238-6228

O-RING,0.139" Thk x 2.234" ID, -228, Cl 6, 90 Duro

2шт.
