Запчасти Case IH STEIGER 600 (35.300.01) - HYDRAULICS - FILTER, FILTER SUPPORT, & PLUMBING, STANDARD FLOW - WHEELED (35) - HYDRAULIC SYSTEMS

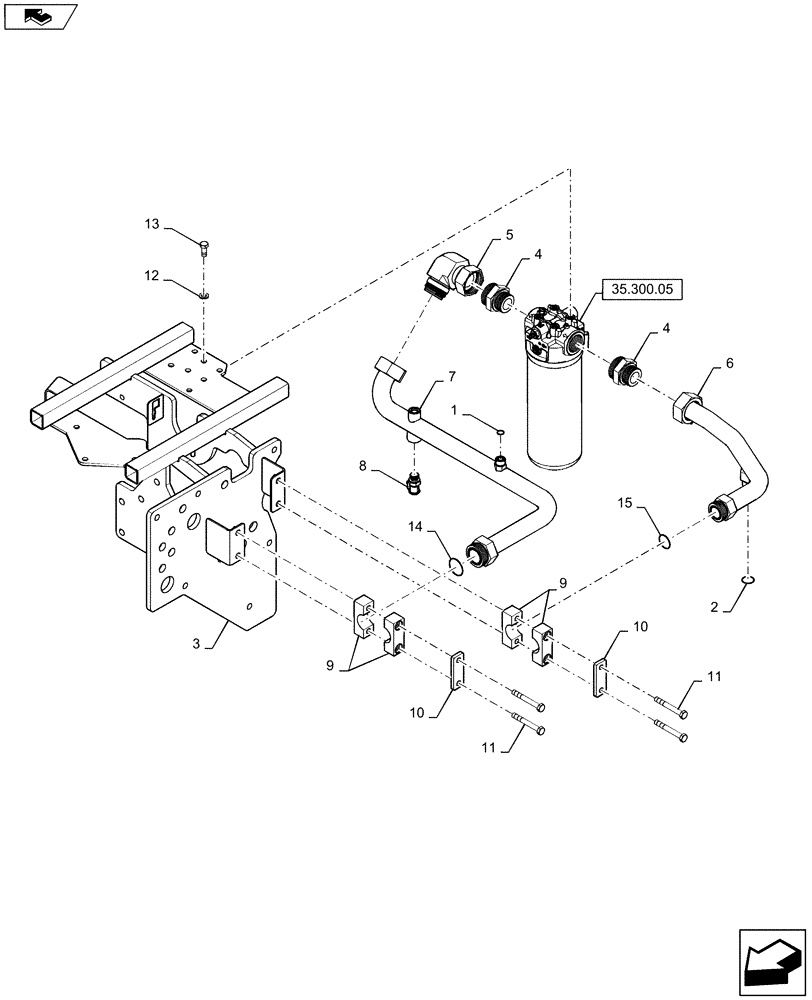

Схема запчастей Case IH STEIGER 600 - (35.300.01) - HYDRAULICS - FILTER, FILTER SUPPORT, & PLUMBING, STANDARD FLOW - WHEELED (35) - HYDRAULIC SYSTEMS
4
10
10
4
5
1
2
6
home
9
8
3
12
7
11
11
9
15
13
35.300.05
14

Артикул

Название

Примечание

Количество

1

238-6014

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

1шт.

2

238-6021

O-RING,15/16 X 1 - 1/16, Cl 6

1шт.

3

NSS

NOT SOLD SEPARAT

Filter Assembly, Single, Standard Flow - Ref. Figure 35.300.05

1шт.

4

86997863

HYD CONNECTOR,2" - 12 ORFS x M42 x 2 ORB

STR -24 ORFS X M42 X 2 ORB - Incl 14, 17

2шт.

5

84191685

ELBOW UNION,2" - 12 ORFS x 2" - 12

90, SWVL 38MM ORFS-ORFS - Incl 14

1шт.

6

84183779

HYD TUBE

Filter Inlet, Standard Flow

1шт.

7

84298510

TUBE

Filter Outlet, Standard Flow / Hi Flow, Serial Range: -ZCF130702

1шт.

7

84543519

HYD TUBE

Filter Outlet, Standard / Hi Flow , Start Serial: ZCF130703

1шт.

8

358968A1

FITTING

Diagnostic

1шт.

9

8500621

BLOCK

Tube Mounting

2шт.

10

8500858

PLATE

Clamp Cover

2шт.

11

827-10080

BOLT,Hex, M10 x 1.5 x 80mm, Cl 10.9

4шт.

12

895-11010

WASHER,11mm ID x 20mm OD x 2mm Thk

4шт.

13

627-10025

BOLT,Hex, M10 x 1.5 x 25mm, Cl 10.9, Full Thd

4шт.

14

9840589

O-RING,0.07" Thk x 1.489" ID, -29, Cl 6, 90 Duro

Incl in 4 - 5

1шт.

15

238-6029

O-RING,0.07" Thk x 1.489" ID, -29, Cl 6, 90 Duro

1шт.

16

84295567

SUPPORT

Assembly

1шт.

17

86598105

O-RING,2.9mm Thk x 38.6mm ID, Cl 6, 90 Duro

Incl in 4

2шт.

Выбрано товаров: 18
