Запчасти Case IH STEIGER 600 (35.220.01[01]) - REMOTE HYDRAULIC HOSES - WHEELED (35) - HYDRAULIC SYSTEMS

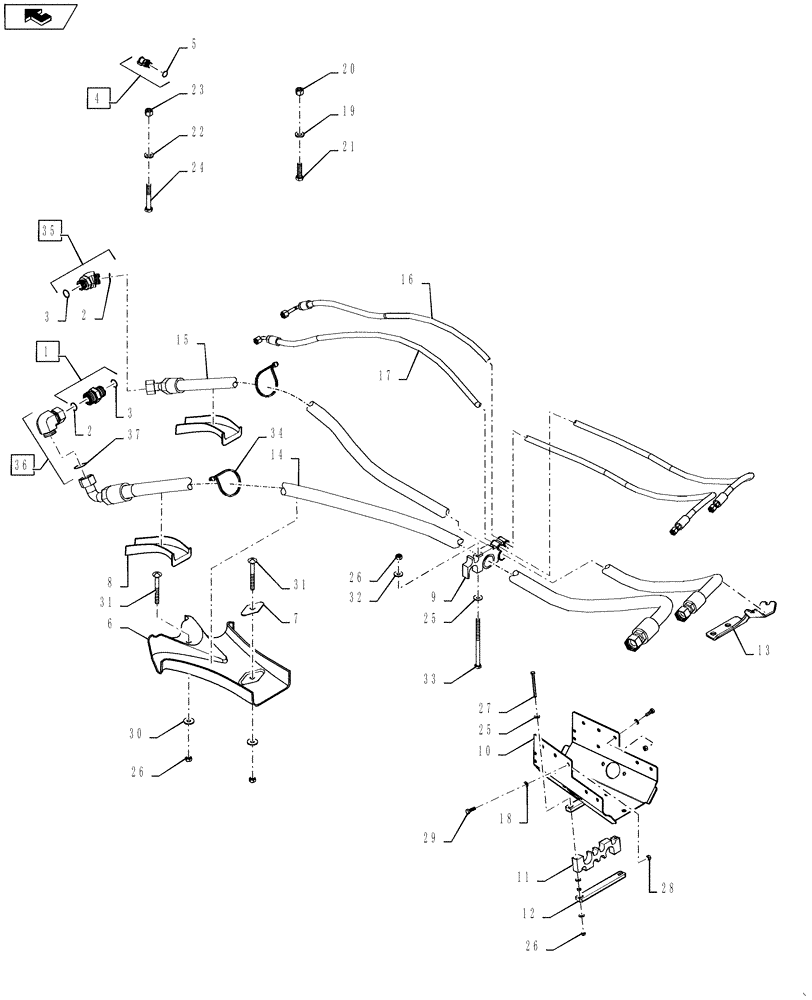

Схема запчастей Case IH STEIGER 600 - (35.220.01[01]) - REMOTE HYDRAULIC HOSES - WHEELED (35) - HYDRAULIC SYSTEMS
9
21
30
16
32
18
36
31
2
26
home
37
3
27
11
7
4
3
25
34
35
33
29
26
17
22
20
28
12
25
31
1
24
15
2
14
23
13
6
8
5
26
19
10

Артикул

Название

Примечание

Количество

1

700-134

HYD CONNECTOR,1-11/16" - 12 Male ORFS x M33 x 2 Male ORB

Incl 2 - 3

1шт.

2

238-6025

O-RING,0.07" Thk x 1.176" ID, -25, Cl 6, 90 Duro

1шт.

3

637-64296

O-RING,2.9mm Thk x 29.6mm ID, Cl 6, 90 Duro

1шт.

4

358968A1

FITTING

Diagnostic, Incl 5

1шт.

5

637-63153

O-RING,2.2mm Thk x 15.3mm ID, Cl 6, 90 Duro

1шт.

6

84193123

CHANNEL

Support, Remote Hoses

1шт.

7

84193124

PLATE

Channel Hold Down

1шт.

8

84214880

CHANNEL

Support, Remote Hoses

2шт.

9

84474214

CLAMP

Clamp Insert, Serial Range: -ZCF129192

1шт.

9

84494898

CLAMP

Clamp Insert, Start Serial: ZCF129192

1шт.

10

84363118

BRACKET, SUPPORTING

Hose Mount

1шт.

11

362419A1

CLAMP

Bracket, Collar

1шт.

12

405520A1

PLATE

Center Link

1шт.

13

84361533

BRACKET, SUPPORTING

Articulation Hose Support, Serial Range: -ZCF129192

1шт.

13

84493192

BRACKET

Articulation Hose support, Start Serial: ZCF129192

1шт.

14

84244526

HOSE ASSY.,31.75mm ID x 3171mm L, SAE 100R1

Auxiliary Return

1шт.

15

84244527

HOSE ASSY.,25.4mm ID x 3141mm L, SAE 100R17

Auxiliary Supply

1шт.

16

84244529

HOSE ASSY.,9.53mm ID x 3231mm L, SAE 100R1

Pilot Pressure

1шт.

17

84244528

HOSE ASSY.,9.53mm ID x 3205mm L, SAE 100R17

Auxiliary Load Sense

1шт.

18

895-11010

WASHER,11mm ID x 20mm OD x 2mm Thk

8шт.

19

896-11012

WASHER,13.5mm ID x 24mm OD x 3mm Thk

8шт.

20

832-10412

NUT,M12 x 1.75, Cl 8

4шт.

21

627-12040

BOLT,Hex, M12 x 1.75 x 40mm, Cl 10.9, Full Thd

4шт.

22

896-11010

WASHER,11mm ID x 21mm OD x 2.5mm Thk

4шт.

23

832-10410

NUT,M10 x 1.5, Cl 8

2шт.

24

827-10070

BOLT,Hex, M10 x 1.5 x 70mm, Cl 10.9

2шт.

25

895-15008

WASHER,9mm ID x 20mm OD x 1.6mm Thk

7шт.

26

829-1408

NUT,Hex, M8 x 1.25, Cl 10.9

7шт.

27

627-8100

BOLT,Hex, M8 x 1.25 x 100mm, Cl 10.9, Full Thd

2шт.

28

829-1410

NUT,M10 x 1.5, Cl 10.9

4шт.

29

627-10030

BOLT,Hex, M10 x 1.5 x 30mm, Cl 10.9, Full Thd

4шт.

30

895-25008

WASHER,9mm ID x 24mm OD x 2mm Thk

2шт.

31

120040

CARRIAGE BOLT,Short Nk, M8 x 80mm, Cl 8.8

2шт.

32

895-11008

WASHER,9mm ID x 16mm OD x 1.6mm Thk

2шт.

33

16046231

SCREW,Hex, M8 x 1.25 x 150mm, Cl 10.9

M8 x 150, Cl 10.9

2шт.

34

L18331

CABLE TIE,375.9mm L, Nylon, Black

CABLE STRAP 15" IN

4шт.

35

700-318

ELBOW,45 Degree Elbow, 1-7/16" - 12 Male ORFS x M33 x 2 Male ORB

For Non-TPH Stack Return Line, Incl 2 - 3

1шт.

36

701-359

ELBOW,90 Degree Elbow, 1-11/16" - 12 Male ORFS x 1-11/16" - 12 Female ORFS

For Non-TB Stack Supply Line, Incl 37

1шт.

37

9824051

O-RING,0.07" Thk x 1.176" ID, -25, Cl 6, 90 Duro

1шт.

38

284895A1

HOSE PROTECTION

Covers Ref 14 - 17 at Articulation (Not Shown)

1шт.

39

440567A1

CABLE TIE

Secures Ref 38 Hose Bundle To Ref 13 (Not Shown)

1шт.

40

84495279

RETAINER

Hose, 50mm (Not Shown), Start Serial: ZCF129192

1шт.

41

84495283

RETAINER

Hose, 41mm (Not Shown), Start Serial: ZCF129192

1шт.

Выбрано товаров: 43
