Запчасти Case IH STEIGER 600 (35.204.10) - AUXILIARY VALVE STACK - 6 SPOOL, W/ THREE POINT HITCH & TRAILER BRAKES (35) - HYDRAULIC SYSTEMS

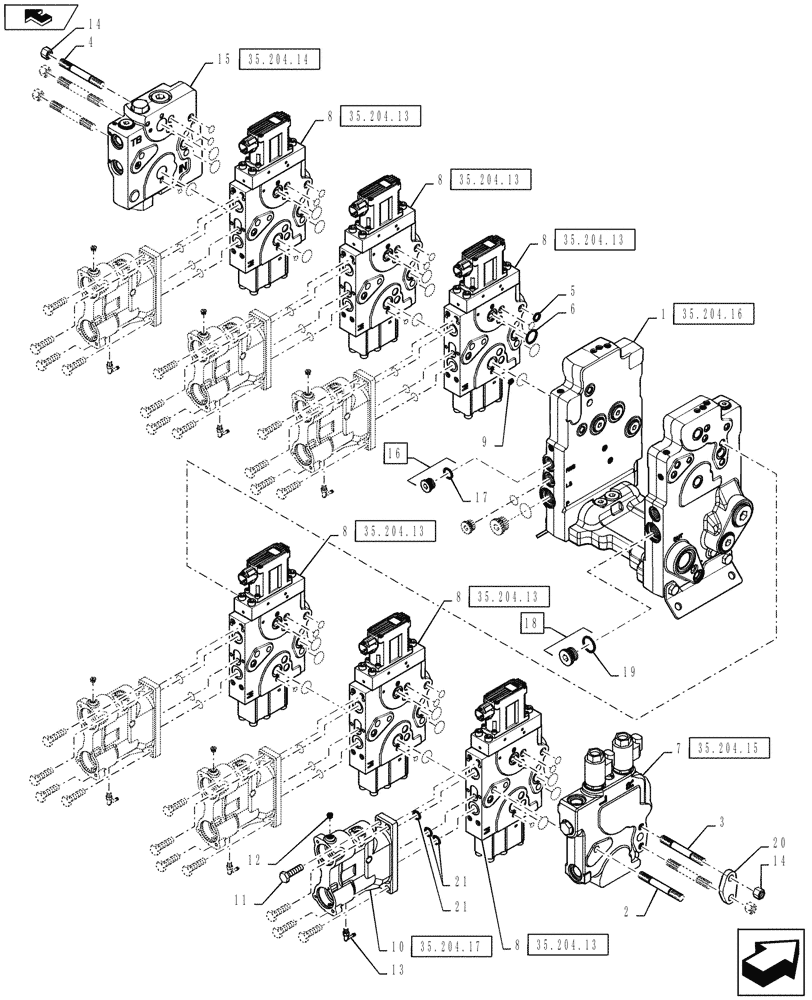

Схема запчастей Case IH STEIGER 600 - (35.204.10) - AUXILIARY VALVE STACK - 6 SPOOL, W/ THREE POINT HITCH & TRAILER BRAKES (35) - HYDRAULIC SYSTEMS
35.204.17
10
5
home
7
15
9
1
13
6
2
3
17
8
14
19
14
8
18
8
8
4
12
20
8
16
21
8
11
21
35.204.15
35.204.14
35.204.13
35.204.13
35.204.13
35.204.13
35.204.13
35.204.13
35.204.16

Артикул

Название

Примечание

Количество

1

87698823

HYD VALVE SECTION

Connector Assembly

1шт.

2

87604617

STUD,M12 x 1.75 x 235mm L

Tie, M12 X 1.75 x 235 mm L

1шт.

3

84203873

STUD

Tie, M12 X 1.75 x 245 mm L

2шт.

4

87713488

THREADED TIE-ROD

Tie, M12 X 1.75 x 240 mm L

3шт.

5

87635379

O-RING,2.62mm Thk x 9.19mm ID, -110, 80 Duro

32шт.

6

87635382

O-RING,2.62mm Thk x 20.29mm ID, -117, 80 Duro

25шт.

7

84203467

HYD VALVE SECTION

Three Point Hitch

1шт.

8

87496186

HYD VALVE SECTION

Aux., Main

6шт.

8

47434186R

REMAN-HYD VALVE

Reman For New PN 87496186

6шт.

8

47434186C

CORE-VALVE HYD

Return Number

6шт.

9

87635376

O-RING,2.62mm Thk x 3.63mm ID, -105, 80 Duro

21шт.

10

435375A1

VALVE

6шт.

11

628-10025

BOLT,Hex, M10 x 1.5 x 25mm, Cl 10.9, Full Thd

24шт.

12

217-429

PLUG,Hex Soc, 1/8" - 27 NPTF

6шт.

13

1289481C1

ELBOW,1/8" NPT x 1/4" Hose Barb

90 DEG 1/8 NPT BARBED

6шт.

14

829-1312

NUT,M12 x 1.75, Cl 10

6шт.

15

84305371

VALVE

Trailer Brake

1шт.

16

221578A1

PLUG,M18 x 1.5 ORB

Incl 18

2шт.

17

637-63153

O-RING,2.2mm Thk x 15.3mm ID, Cl 6, 90 Duro

2шт.

18

221580A1

PLUG,M27 x 2 ORB

Incl 19

2шт.

19

637-64236

O-RING,2.9mm Thk x 23.6mm ID, Cl 6, 90 Duro

2шт.

20

84203478

COVER

Hitch Inlet

1шт.

21

87635387

O-RING,2.62mm Thk x 21.89mm ID, -118, 80 Duro

18шт.

Выбрано товаров: 23
