Запчасти Case IH STEIGER 600 (35.128.02[01]) - 500 & 600 SERIES WHEELED AXLE - AXLE LUBE FRONT, WITH AND WITHOUT DIFFERENTIAL LOCK (35) - HYDRAULIC SYSTEMS

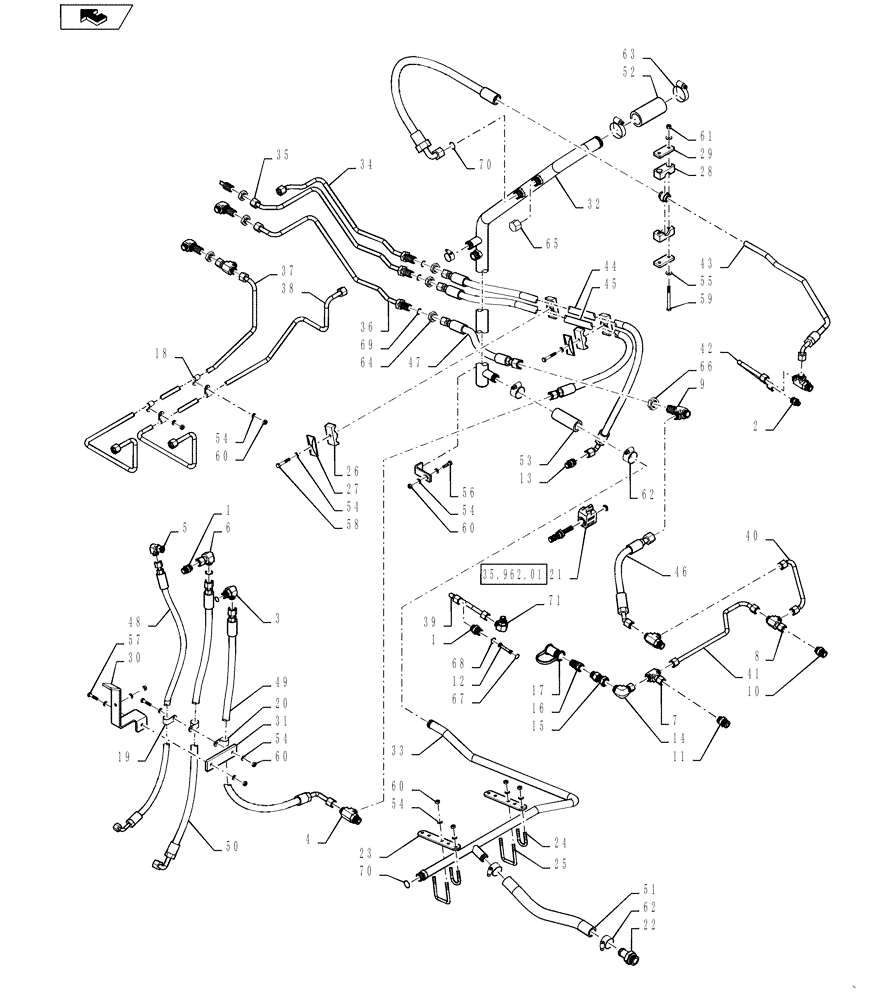

Схема запчастей Case IH STEIGER 600 - (35.128.02[01]) - 500 & 600 SERIES WHEELED AXLE - AXLE LUBE FRONT, WITH AND WITHOUT DIFFERENTIAL LOCK (35) - HYDRAULIC SYSTEMS
44
67
71
1
37
51
54
36
30
2
17
65
49
12
6
60
53
29
13
70
54
24
11
32
54
14
69
28
9
60
35.962.01
16
62
18
35
39
58
34
7
56
46
4
61
55
8
63
21
38
15
45
5
43
68
40
62
31
3
50
54
25
59
64
20
70
10
27
48
57
33
19
47
26
66
54
home
23
60
60
1
52
41
42
22

Артикул

Название

Примечание

Количество

1

700-102

HYD CONNECTOR,13/16" - 16 Male ORFS x M18 x 1.5 Male ORB

2шт.

2

700-103

HYD CONNECTOR,1" - 14 Male ORFS x M22 x 1.5 Male ORB

1шт.

3

700-305

ELBOW,90 Degree Elbow, 13/16" - 16 Male ORFS x M18 x 1.5 Male ORB

2шт.

4

700-445

TEE,13/16" - 16 Male ORFS x 13/16" - 16 Male ORFS x M22 x 1.5 Male ORB

3шт.

5

701-319

ELBOW,90° Elbow, 11/16" - 16 Male ORFS x 11/16" - 16 Female ORFS

1шт.

6

701-320

ELBOW,90 Degree Elbow, 13/16" - 16 Male ORFS x 13/16" - 16 Female ORFS

2шт.

7

701-411

TEE,13/16" - 16 Male ORFS x 13/16" - 16 Male ORFS x 13/16" - 16 Female ORFS

1шт.

8

701-416

TEE,13/16" - 16 Male ORFS x 13/16" - 16 Male ORFS x 13/16" - 16 Female ORFS

3шт.

9

84191902

RUN TEE

Bulkhead, ORFS-ORFS-ORFS 16MM

1шт.

10

84513641

CHECK VALVE,M22 x 1.5 ORB x 13/16" - 16 ORFS

Check Relief, 25 PSI, Start Serial: ZBF128637

1шт.

11

84214146

FITTING

Adapter, Orifice

1шт.

12

87400028

ORIFICE

Front Pinion Cover

1шт.

13

341195A1

ORIFICE

Axles W/ Diff Lock Only

1шт.

14

84168350

90 ELBOW,1" - 14 ORFS x 13/16" - 16 Female Swivel

JUMP SWIVEL ORFS 5/8 - 1/2

1шт.

15

87643583

HYD CONNECTOR,5/8" ORFS x M22 x 1.5 ORFS

M22X1.5 ORB X 1-14 SWL ORFS

1шт.

16

392690A1

COUPLING

Male

1шт.

17

399032A1

CAP

Dust Plug

1шт.

18

515-23127

CLAMP,1/2", Insul, 3/8" Bolt

4шт.

19

515-23206

CLAMP,13/16", Insul, 3/8" Bolt

1шт.

20

515-23238

CLAMP,15/16", Insul, 3/8" Bolt

2шт.

21

384977A1

VALVE

Solenoid, Axles W/ Diff Lock Only

1шт.

22

390348A1

STEM

STR BEAD HOSE 1.0ID X M33ORB

1шт.

23

87535336

BRACKET

Cross Tube, LF

2шт.

24

253105A1

U-BOLT,Coined, M8 x 1.25 x 33.8 x 50mm

BOLT "U"

2шт.

25

396490A1

U-BOLT

M8 - 1.25, Rectangular

2шт.

26

50-2551T1

CLAMP

Tube

4шт.

27

50-2533T1

PLATE

Cover

2шт.

28

84341623

CLAMP,16mm ID

Tube Clamp Isolation

1шт.

29

367658A1

PLATE

Clamp Cover

2шт.

30

84214397

BRACKET, SUPPORTING

1шт.

31

L50641

CONNECTING STRIP

Clamp, Return Tube

1шт.

32

84281569

RIGID TUBE

Main Axle Drain

1шт.

33

84248762

TUBE

Axle Drain, Front

1шт.

34

84281559

RIGID TUBE

Park Brake Pressure

1шт.

35

84281561

RIGID TUBE

Service Brake Pressure

1шт.

36

84281563

RIGID TUBE

Axle Lube Pressure

1шт.

37

84281565

RIGID TUBE

Park Brake Pressure

1шт.

38

84215623

TUBE

Steering Drain

1шт.

39

84214260

TUBE

Axle Lube Crossover

1шт.

40

84214262

TUBE

Axle Lube Crossover

1шт.

41

84214264

TUBE

Axle Lube Crossover

1шт.

42

416697A1

TUBE

Axles W/ Diff Lock Only

1шт.

43

84341620

TUBE

Brake Drain

1шт.

44

84244575

HOSE ASSY.,12.7mm ID x 1280mm L, SAE 100R1

Park Brake, Front

1шт.

45

84244574

HOSE ASSY.

Service Brake

1шт.

46

84244571

HOSE ASSY.,12.7mm ID x 424mm L, SAE 100R1

Axle Lube, Front

1шт.

47

84244572

HOSE ASSY.

Axle Lube

1шт.

48

84341616

HOSE ASSY.,9.53mm ID x 1029mm L, SAE 100R17

Brake LS

1шт.

49

84341619

HOSE ASSY.,12.7mm ID x 1219mm L, SAE 100R17

Brake Signal

1шт.

50

84341615

HOSE ASSY.,12.7mm ID x 1067mm L, SAE 100R17

Brake Supply

1шт.

51

395933A1

HOSE,1.00" ID x 15.00"

1шт.

52

1-4571

HOSE

1.5" ID x 4.5" OAL

1шт.

53

435457A1

HOSE,1.00" ID x 4.00"

1шт.

54

895-11008

WASHER,9mm ID x 16mm OD x 1.6mm Thk

19шт.

55

895-15008

WASHER,9mm ID x 20mm OD x 1.6mm Thk

4шт.

56

627-8030

BOLT,Hex, M8 x 1.25 x 30mm, Cl 10.9, Full Thd

1шт.

57

627-8035

BOLT,Hex, M8 x 1.25 x 35mm, Cl 10.9, Full Thd

2шт.

58

827-8050

BOLT,Hex, M8 x 1.25 x 50mm, Cl 10.9

2шт.

59

827-8090

BOLT,Hex, M8 x 1.25 x 90mm, Cl 10.9

2шт.

60

829-1408

NUT,Hex, M8 x 1.25, Cl 10.9

14шт.

61

832-10408

NUT,M8 x 1.25, Cl 8.8

2шт.

62

214-1420

HOSE CLAMP,#20, 0.81" - 1.75", Type F Worm

1шт.

63

214-1436

HOSE CLAMP,#36, 1.81" - 2.75", Type F Worm

2шт.

64

701-903

NUT,13/16" - 16

3шт.

65

701-906

CAP,1" - 14

2шт.

66

701-919

BHD LOCK NUT,1" - 14

1шт.

67

238-5011

O-RING,0.07" Thk x 0.301" ID, -11, Cl 5, 75 Duro

1шт.

68

238-5111

O-RING,0.103" Thk x 0.424" ID, -111, Cl 5, 75 Duro

1шт.

69

238-6014

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

3шт.

70

238-6016

O-RING,0.07" Thk x 0.614" ID, -16, Cl 6, 90 Duro

4шт.

71

700-326

ELBOW,90 Degree Elbow, 13/16" - 16 Male ORFS x M22 x 1.5 Male ORB

Axles W/Out Diff Lock Only

1шт.
