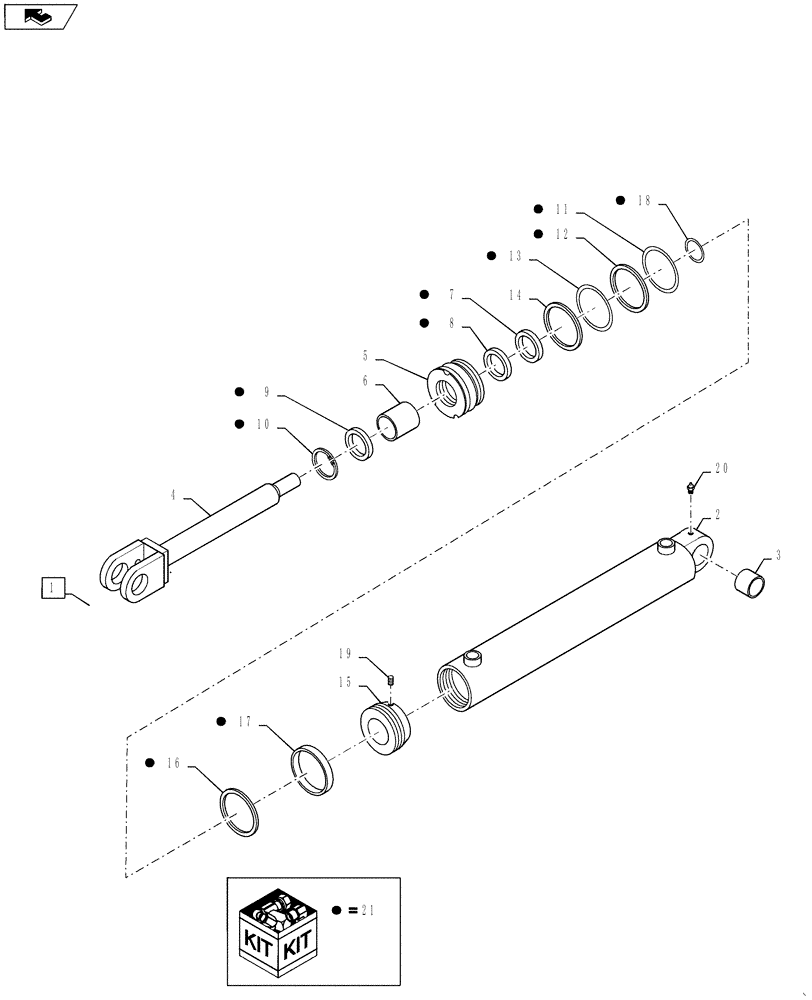

Запчасти Case IH STEIGER 600 (35.116.01) - CYLINDER ASSY - THREE POINT HITCH (35) - HYDRAULIC SYSTEMS
№
Артикул
Название
Примечание
Количество
1
87304298
CYLINDER
Three Point Hitch, Lift, Incl 1 - 20
1шт.
2
87378711
TUBE
Barrel
1шт.
3
87378707
BUSHING
Wear
1шт.
4
87378708
ROD
Piston
1шт.
5
87378710
COVER
End, TPH Cylinder Assy.
1шт.
6
87378717
BUSHING
Wear
1шт.
7
NSS
NOT SOLD SEPARAT
Seal, Wiper, Incl in 21
1шт.
8
NSS
NOT SOLD SEPARAT
Ring, Back-up, Incl in 21
1шт.
9
NSS
NOT SOLD SEPARAT
Washer, Incl in 21
1шт.
10
NSS
NOT SOLD SEPARAT
Ring, Snap, Incl in 21
1шт.
11
NSS
NOT SOLD SEPARAT
O-Ring, Incl in 21
1шт.
12
NSS
NOT SOLD SEPARAT
Ring, Backup, Incl in 21
1шт.
13
NSS
NOT SOLD SEPARAT
O-Ring, Incl in 21
1шт.
14
87378712
WASHER
Teflon, End Cap
1шт.
15
87378709
PISTON
TPH Cylinder Assy.
1шт.
16
NSS
NOT SOLD SEPARAT
Seal, Piston, Teflon, Incl in 21
1шт.
17
NSS
NOT SOLD SEPARAT
Ring, Wear, Incl in 21
2шт.
18
NSS
NOT SOLD SEPARAT
O-Ring, Incl in 21
1шт.
19
877-20816
SET SCREW,M8 x 16mm
1шт.
20
219-36
LUBE NIPPLE,45 Degree Elbow, 1/8" - 27 NPTF
1шт.
21
87378692
SEAL KIT
Seal, Incl 7 - 13, 16 - 18
1шт.
Выбрано товаров: 21
