Запчасти Case IH STEIGER 600 (35.106.02) - HYDRAULIC PUMP MOUNTING & FITTINGS - STANDARD HYDRAULICS (35) - HYDRAULIC SYSTEMS

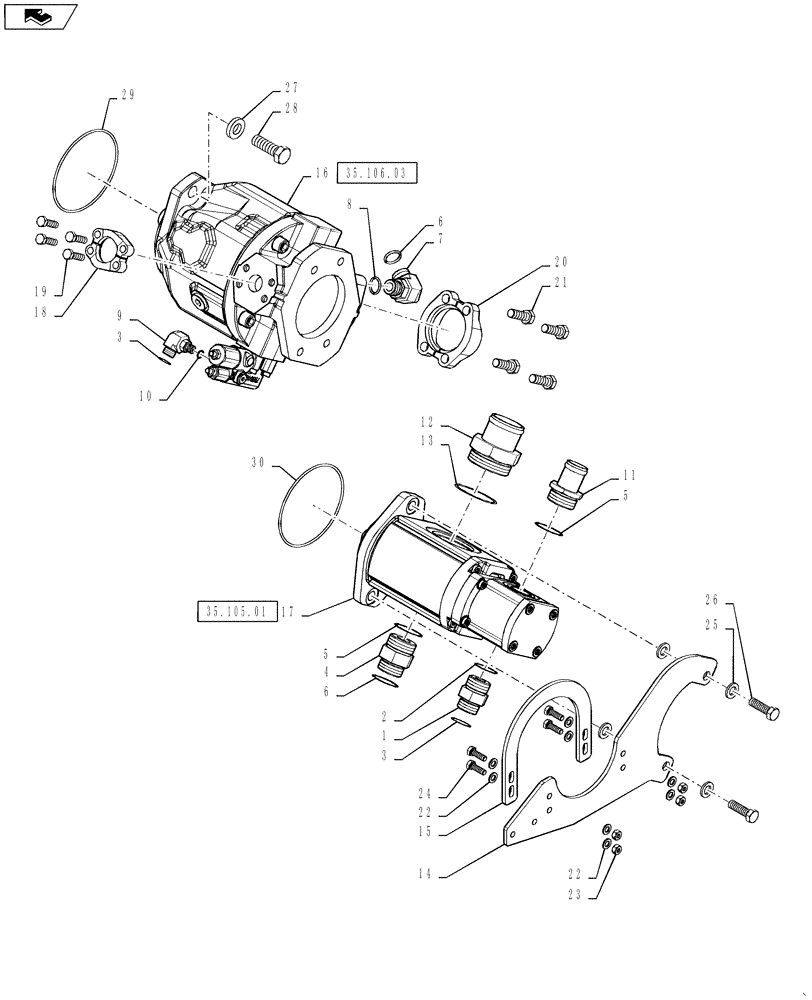

Схема запчастей Case IH STEIGER 600 - (35.106.02) - HYDRAULIC PUMP MOUNTING & FITTINGS - STANDARD HYDRAULICS (35) - HYDRAULIC SYSTEMS
18
10
11
20
26
home
17
22
5
19
12
4
25
35.106.03
35.105.01
15
29
5
9
14
16
28
27
1
3
2
3
24
23
6
30
7
6
13
8
21
22

Артикул

Название

Примечание

Количество

1

201-129

HYD CONNECTOR,1-3/16" - 12 ORFS x 1-5/16" - 12 ORB

Incl 2, 3

1шт.

2

237-6016

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

1шт.

3

238-6012

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

2шт.

4

201-122

HYD CONNECTOR,1 7/16"-12 ORFS x 1 5/8"-12 ORB

Incl 5, 6

1шт.

5

237-6020

O-RING,0.118" Thk x 1.475" ID, -920, Cl 6, 90 Duro

5шт.

6

238-6021

O-RING,15/16 X 1 - 1/16, Cl 6

2шт.

7

201-306

90 ELBOW,90 Degree Elbow, 1" - 14 Male ORFS x 7/8" - 14 Male ORB

Incl 6, 8

1шт.

8

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

1шт.

9

201-311

ELBOW,90 Degree Elbow, 11/16" - 16 Male ORFS x 7/16" - 20 Male ORB

Incl 3, 10

1шт.

10

237-6004

O-RING,0.072" Thk x 0.351" ID, -904, Cl 6, 90 Duro

1шт.

11

217-178

FITTING,1-1/4" Hose Barb x 1-5/8" - 12 Male ORB

Incl 5

1шт.

12

84188435

HYD CONNECTOR,2-1/2” - 12 x 2-15/16” L

2-1/2-12, Incl 13

1шт.

13

218-5013

O-RING,0.118" Thk x 2.337" ID, -932, Cl 6, 90 Duro

1шт.

14

84288313

BRACKET

Draiveshaft Guard, PS4 Transmission

1шт.

14

84288315

BRACKET

Draiveshaft Guard, PS6 Transmission (Not Shown)

1шт.

15

87419159

PLATE

Draiveshaft Guard, PS4 Transmission

1шт.

15

84140506

BRACKET

Draiveshaft Guard, PS6 Transmission (Not Shown)

1шт.

16

87308197

PUMP

Piston, Standard Hydraulics, 71CC

1шт.

16

87308197R

REMAN-HYD PUMP,71 CC

Reman For PN 87308197

1шт.

16

87308197C

CORE-HYDRAULIC PUMP

Return Number

1шт.

17

84130469

HYDRAULIC PUMP,110 CC

Axle/Main Charge

1шт.

17

84130469R

REMAN-HYD PUMP

Axle/Main Charge

1шт.

17

84130469C

CORE-HYDRAULIC PUMP

Return Number

1шт.

18

A12306

FLANGE

Split Half Clamp, 1.0

2шт.

19

426-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 8

4шт.

20

A14141

FLANGE

Split Half Clamp, 2.0

2шт.

21

426-824

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 8

4шт.

22

895-11008

WASHER,9mm ID x 16mm OD x 1.6mm Thk

8шт.

23

829-1408

NUT,Hex, M8 x 1.25, Cl 10.9

4шт.

24

627-8025

BOLT,Hex, M8 x 1.25 x 25mm, Cl 10.9, Full Thd

4шт.

25

896-11012

WASHER,13.5mm ID x 24mm OD x 3mm Thk

4шт.

26

627-12040

BOLT,Hex, M12 x 1.75 x 40mm, Cl 10.9, Full Thd

2шт.

27

86637955

WASHER,0.66" ID x 1.25" OD x 0.24" Thk

0.656X1.25X0.239 HTS ZND HDN

2шт.

28

627-16050

BOLT,Hex, M16 x 2 x 50mm, Cl 10.9, Full Thd

2шт.

29

238-5250

O-RING,0.139" Thk x 4.984" ID, -250, Cl 5, 75 Duro

1шт.

30

436514A1

O-RING

1шт.

Выбрано товаров: 36
