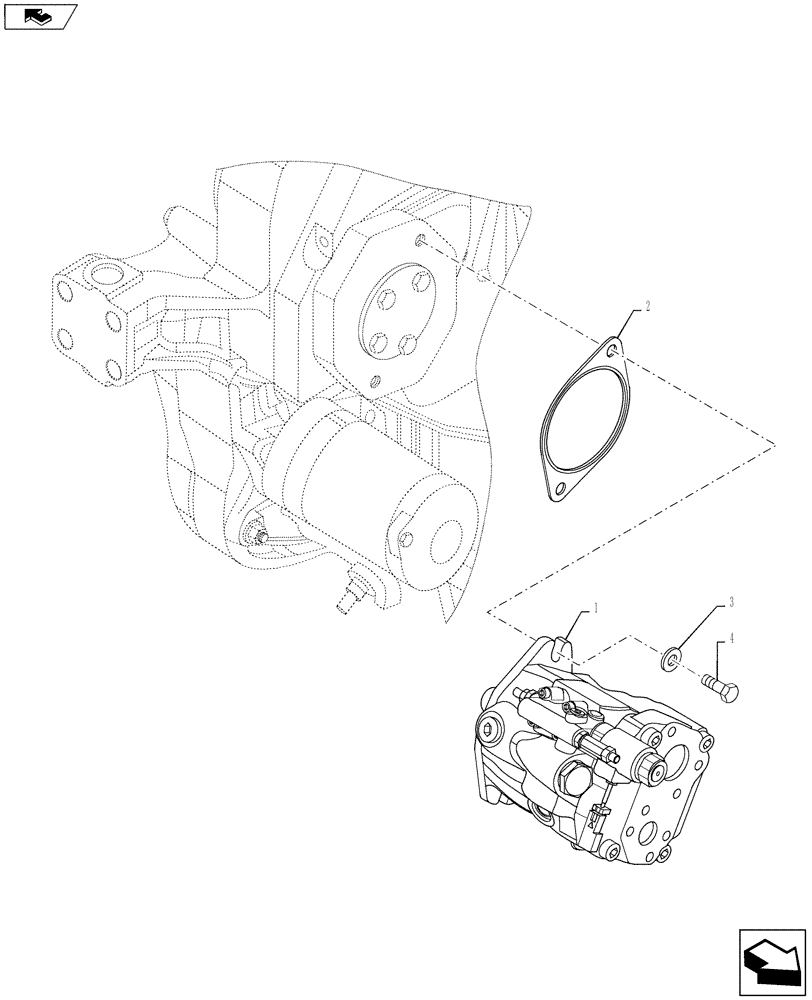

Запчасти Case IH STEIGER 600 (35.106.01) - HYDRAULIC PUMP, VARIABLE DISPLACEMENT (35) - HYDRAULIC SYSTEMS

1

84208938

HYDRAULIC PUMP,45 CC

CCW Variable Displacement, Steiger 500, QuadTrac 450 & 500, Incl 5 - 10

1шт.

1

84208938R

REMAN-HYD PUMP

CCW Variable Displacement, Steiger 500, QuadTrac 450 & 500

1шт.

1

84208938C

CORE-HYDRAULIC PUMP

Return Number

1шт.

1

84194336

HYDRAULIC PUMP,63 CC

CCW Variable Displacement, Steiger 550 & 600, QuadTrac 550 & 600, Incl 5 - 10

1шт.

1

84194336R

REMAN-HYD PUMP

CCW Variable Displacement, Steiger 550 & 600, QuadTrac 550 & 600

1шт.

1

84194336C

CORE-HYDRAULIC PUMP

Return Number

1шт.

2

87742605

GASKET

Hydraulic Pump

1шт.

3

896-15012

WASHER,13.5mm ID x 28mm OD x 4mm Thk

2шт.

4

627-12035

BOLT,Hex, M12 x 1.75 x 35mm, Cl 10.9, Full Thd

2шт.

5

436536A1

PILOT VALVE

(Not Shown) Use With Ref 11 Gasket

1шт.

Service Part For Ref 1

1шт.

5

436536A1R

REMAN-HYD VALVE

(Not Shown) Use With Ref 11 Gasket

1шт.

5

Service Part For Ref 1

1шт.

5

436536A1C

CORE-VALVE HYD

Core Return Number

1шт.

6

436751A1

SOLENOID

Coil (Not Shown)

1шт.

Service Part For Ref 1

1шт.

7

436750A1

O-RING

(Not Shown)

1шт.

Service Part For Ref 1

1шт.

8

87414121

SEAL

Shaft (Not Shown)

1шт.

Service Part For Ref 1

1шт.

9

87414122

O-RING

(Not Shown)

1шт.

Service Part For Ref 1

1шт.

10

436535A1

O-RING,2.5mm Thk x 125mm ID

(Not Shown)

1шт.

Service Part For Ref 1

1шт.

11

87553152

GASKET

Pilot Valve (Not Shown)

1шт.

Service Part For Ref 1

1шт.
