Запчасти Case IH STEIGER 580 (88.100.55[15]) - DIA KIT, FRONT ROOF LED WORK LAMP (88) - ACCESSORIES

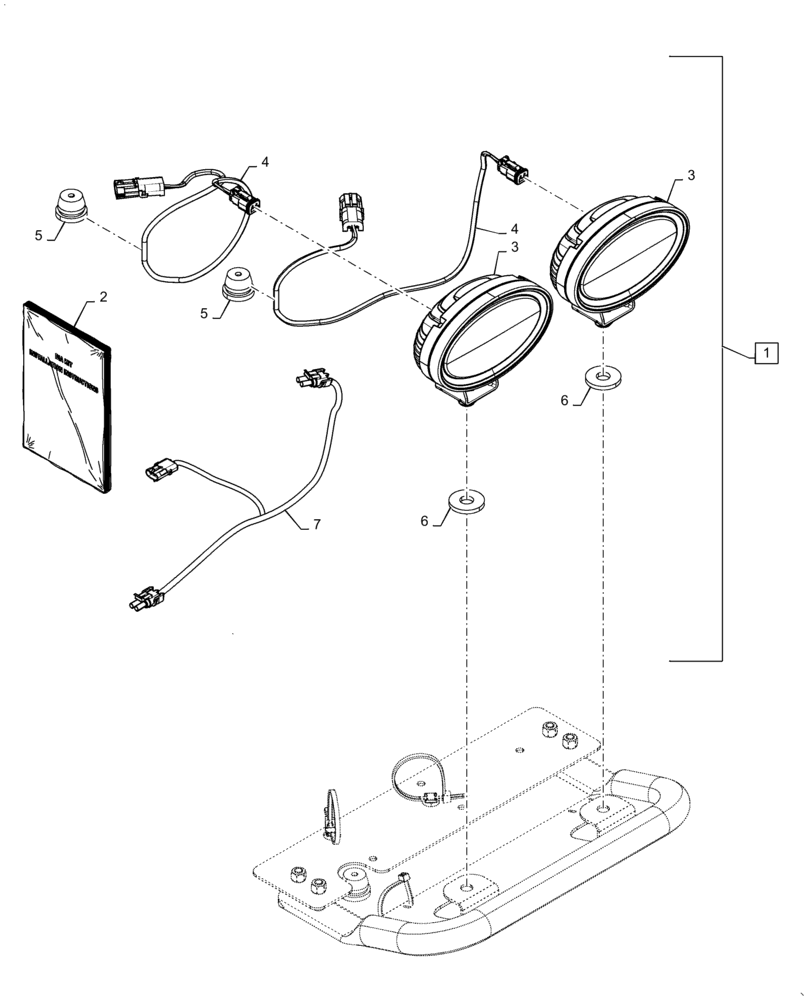

Схема запчастей Case IH STEIGER 580 - (88.100.55[15]) - DIA KIT, FRONT ROOF LED WORK LAMP (88) - ACCESSORIES
6
3
1
4
2
5
6
4
5
3
7

Артикул

Название

Примечание

Количество

1

47841042

SERVICE KIT

Front Roof LED Work Lights, Incl 2 - 7

1шт.

2

47841111

INSTRUCTION

Front Roof LED Kit

1шт.

3

47796457

LAMP

Work, Oval, 40W, 60° Flood

2шт.

4

47825679

WIRE HARNESS

LED Adapter

2шт.

5

182049A1

GROMMET

Rubber

2шт.

6

237486A1

WASHER

Non-Metallic

2шт.

7

47841392

WIRE HARNESS

LED Y-Adapter

2шт.

Выбрано товаров: 7
