Запчасти Case IH STEIGER 580 (88.100.55[08]) - DIA KIT, TRACTOR, 4 TO 8 SPOOL REMOTE (88) - ACCESSORIES

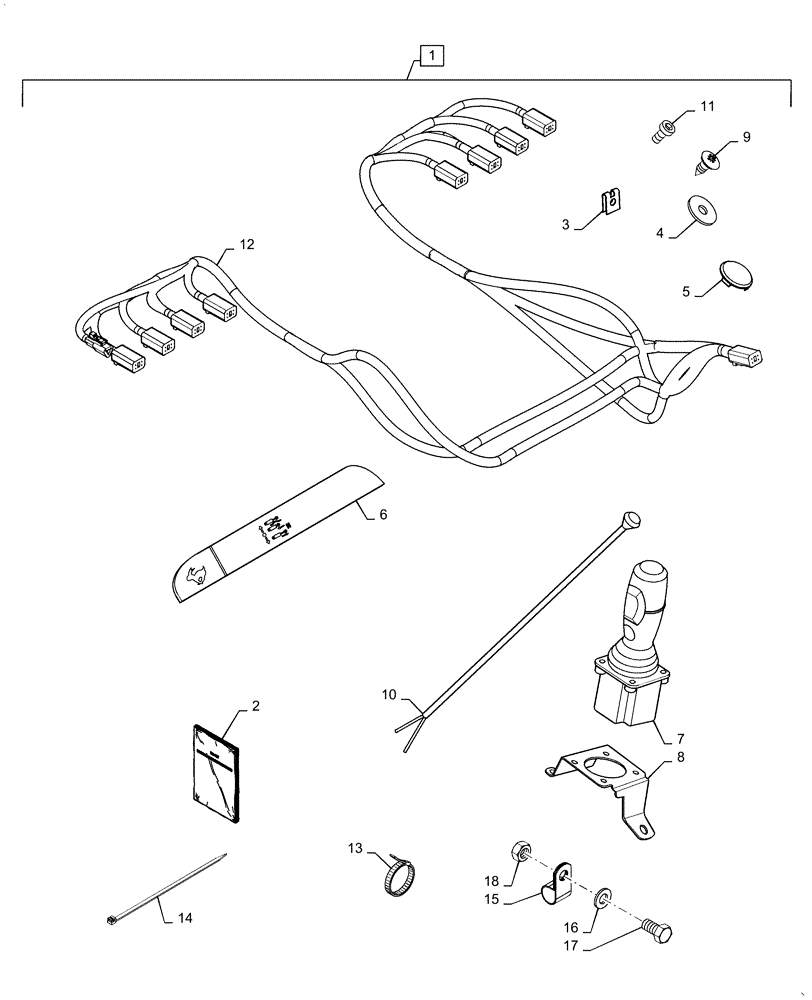

Схема запчастей Case IH STEIGER 580 - (88.100.55[08]) - DIA KIT, TRACTOR, 4 TO 8 SPOOL REMOTE (88) - ACCESSORIES
7
11
14
13
3
10
1
12
4
15
8
17
16
5
6
18
9
2

Артикул

Название

Примечание

Количество

1

84330952

KIT

DIA KIT, 4 To 8 Spool Remote, Incl 2 - 18

1шт.

2

47495729

INSTRUCTION

Install

1шт.

3

84148337

SPRING NUT

4.8 x 14.6 x 7 ZND

5шт.

4

14498801

WASHER,6.4mm ID x 16.3mm OD x 1mm Thk

1шт.

5

87725444

BLANK-OFF PLUG,57.5mm OD, Black

Blanking Less Joystick

1шт.

6

84126448

DECAL

EHR With Joystick

1шт.

7

84208738

JOYSTICK

Prop Rocker

1шт.

7

84208738R

REMAN-JOYSTICK

Prop Rocker

1шт.

7

84208738C

CORE-JOYSTICK

Return Number

1шт.

8

84202338

BRACKET

Joystick

1шт.

9

86639293

HEX SOC SCREW,M4 x 12mm, Cl 8.8

4шт.

10

87485775

SWITCH ASSY

Joystick Float

1шт.

11

15687901

SELF-TAP SCREW,Cross Pan Hd, M4.2 x 9.50mm

2шт.

12

84158327

WIRE HARNESS

EHR Valves

1шт.

13

L18331

CABLE TIE,375.9mm L, Nylon, Black

Tie Hose

6шт.

14

435437A1

CABLE TIE,3/16" x 7 1/4"

1шт.

15

86637999

CLAMP,19mm, Coat, 11.9mm Bolt Hole, P Type

2шт.

16

895-11010

WASHER,11mm ID x 20mm OD x 2mm Thk

4шт.

17

627-10030

BOLT,Hex, M10 x 1.5 x 30mm, Cl 10.9, Full Thd

2шт.

18

829-1410

NUT,M10 x 1.5, Cl 10.9

2шт.

Выбрано товаров: 20
