Запчасти Case IH STEIGER 580 (05.100.03[01]) - FILTERS (05) - SERVICE & MAINTENANCE

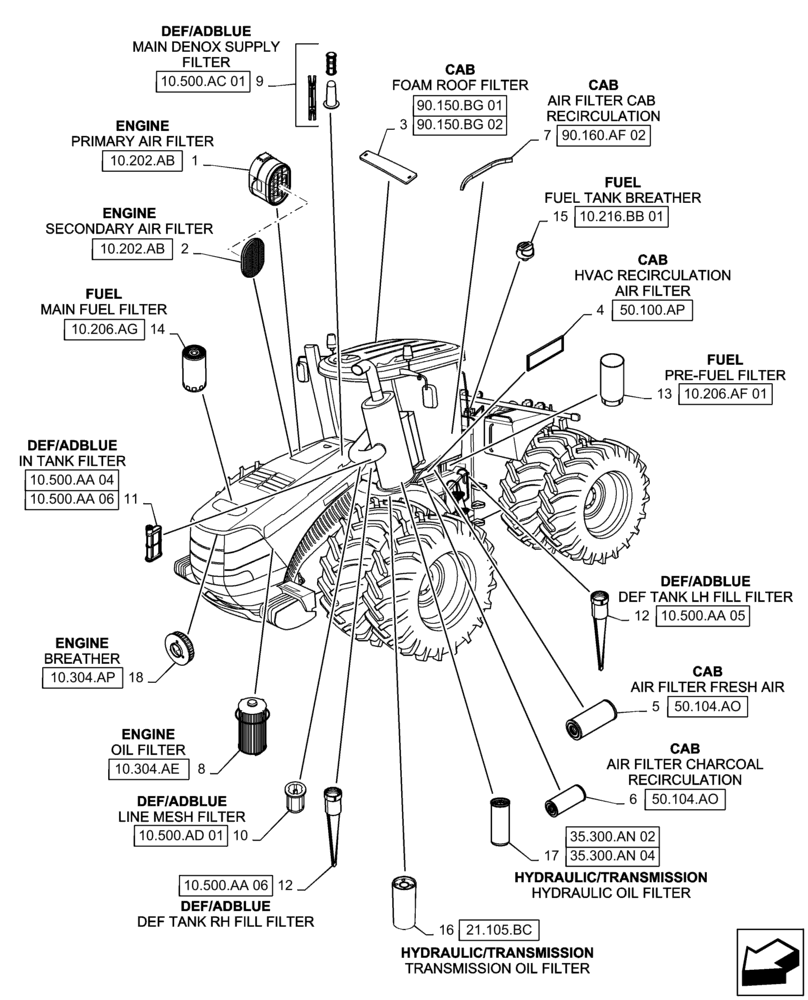

Схема запчастей Case IH STEIGER 580 - (05.100.03[01]) - FILTERS (05) - SERVICE & MAINTENANCE
16
14
3
10.500.aa 06
1
7
6
9
10.206.af 01
10.304.ap
12
18
90.150.bg 01
4
10.202.ab
10.202.ab
35.300.an 02
8
35.300.an 04
11
50.100.ap
10.206.ag
10.216.bb 01
10
50.104.ao
21.105.bc
10.500.aa 04
90.160.af 02
5
13
17
90.150.bg 02
2
12
10.500.aa 06
10.304.ae
50.104.ao
15
10.500.ac 01
10.500.aa 05
10.500.ad 01

Артикул

Название

Примечание

Количество

1

87356545

AIR FILTER

Primary, Replace Every 1200 Hours

2шт.

2

87356547

AIR FILTER

Secondary, Replace Every 1200 Hours

2шт.

3

84211797

AIR FILTER

Cab Roof, Replace As Required

1шт.

4

386751A1

CAB FILTER

HVAC, Recirculated Air, Replace Every 1800 Hours

1шт.

5

87684088

CAB FILTER,CAB

Replace Every 1800 Hours

1шт.

6

87267363

AIR FILTER,Cab Charcoal Recirculation

Replace Every 1800 Hours

1шт.

7

283094A1

FILTER

Cab Recirculation, Replace As Required

1шт.

8

84572228

ELEMENT

Engine Oil, 13L, Replace Every 600 Hours

1шт.

9

47364243

FILTER

Main DEF Denox, Replace Every 1200 Hours

1шт.

10

84367903

FILTER

DEF Inline Mesh Filter, Replace As Required, Serial Range: ZEF300001-ZEF303000

1шт.

11

47681405

FILTER ASSY,70 Micron

DEF Tank Level Sensor, Replace As Required, Start Serial: ZEF303001

1шт.

12

47680524

FILTER, DEF,100 Micron

DEF Tank Pre-Fill, Replace As Required, Start Serial: ZEF304110

2шт.

13

84423586

FUEL FILTER

Pre-Filter, Replace Every 600 Hours

1шт.

14

5801516883

ELEMENT

Fuel, 13L, Replace Every 600 Hours

1шт.

15

84412494

BREATHER

Fuel Tank, Replace Every 600 Hours

1шт.

16

84255607

HYDRAULIC OIL FILTER,Spin-on, M87 x 2.5, 98.8mm OD x 239.8mm L

Transmission Oil, Replace Every 1200 Hours

1шт.

17

84196445

HYDRAULIC OIL FILTER

Spin-On, Replace Every 1800 Hours

1шт.

Standard Flow Uses Quantity 1, High Flow Uses Quantity 2

1шт.

18

5801470547

ELEMENT

Engine Breather, Replace Every 1200 Hours

1шт.

Выбрано товаров: 19
