Запчасти Case IH STEIGER 580 (55.302.AI) - BATTERY - TRAY & CABLES (55) - ELECTRICAL SYSTEMS

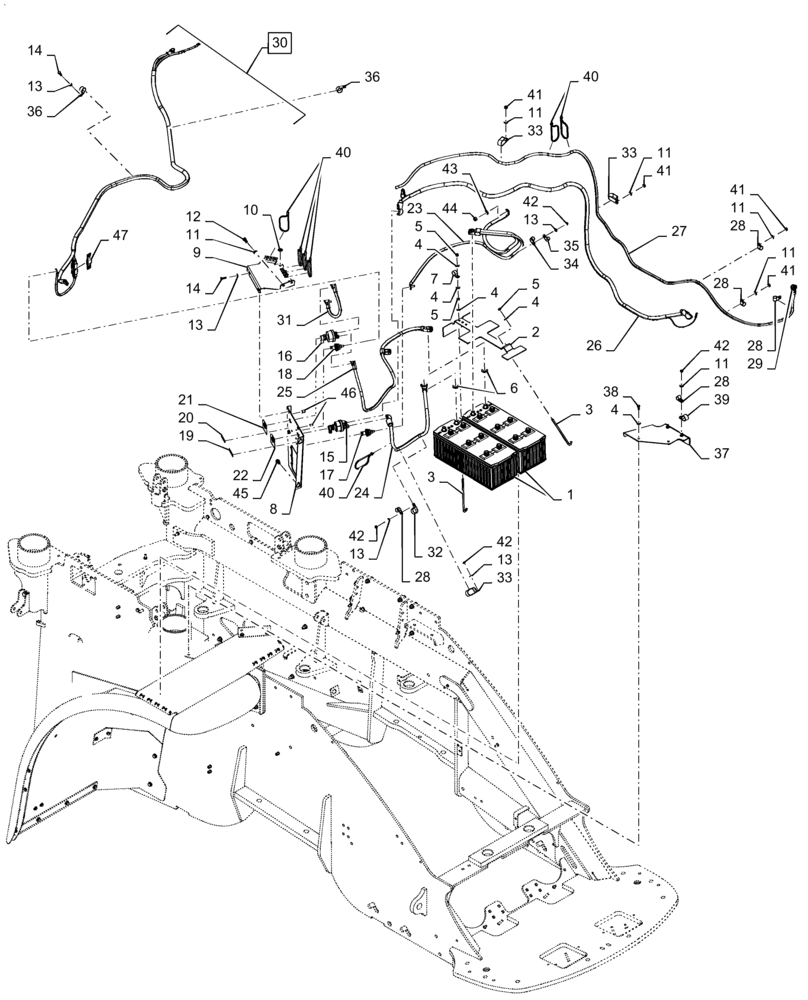

Схема запчастей Case IH STEIGER 580 - (55.302.AI) - BATTERY - TRAY & CABLES (55) - ELECTRICAL SYSTEMS
47
26
33
4
4
37
44
38
4
40
9
2
14
5
34
15
32
33
41
42
42
25
10
5
35
18
28
42
11
43
5
13
41
13
20
30
11
46
16
28
11
13
36
28
1
42
40
33
28
11
17
41
3
24
22
6
39
36
41
13
3
29
8
40
23
21
11
4
7
45
12
28
19
31
14
4
11
27
13

Артикул

Название

Примечание

Количество

1

BCH4DLTW

WET BATTERY,BCI 4DLT, 12V, 1000CCA

12V, 1000CCA, NA

2шт.

1

CCH4DLTW

WET BATTERY,BCI 4DLT, 12V, 1000CCA

12V, 1000CCA, Canada Only

2шт.

2

47430564

BRACKET

Battery Hold Down

1шт.

3

47550268

THREADED ROD

Battery Hold Down

2шт.

4

896-15008

WASHER,9mm ID x 21mm OD x 2.5mm Thk

6шт.

5

832-10408

NUT,M8 x 1.25, Cl 8.8

3шт.

6

87637103

WASHER

Battery Post

2шт.

7

515-22254

CLAMP,1", Insul, 5/16" Bolt

1шт.

8

47552347

PANEL

Battery Panel

1шт.

9

47535275

BRACKET

Battery Cover

1шт.

10

L126856

RIVET

Bumper

2шт.

11

896-11010

WASHER,11mm ID x 21mm OD x 2.5mm Thk

7шт.

12

627-10025

BOLT,Hex, M10 x 1.5 x 25mm, Cl 10.9, Full Thd

2шт.

13

896-11008

WASHER,9mm ID x 17mm OD x 2mm Thk

5шт.

14

627-8025

BOLT,Hex, M8 x 1.25 x 25mm, Cl 10.9, Full Thd

2шт.

15

87572750

SWITCH

Battery Disconnect

1шт.

16

87458467

ROTARY SWITCH

Battery Master Disconnect

1шт.

17

84258928

TERMINAL CONNECTOR

Jump Start, Negative

1шт.

18

1964554C1

TERMINAL

Jump Start, Positive

1шт.

19

47537970

DECAL

Negative

1шт.

20

47537975

DECAL

Positive

1шт.

21

47537976

DECAL

12V Battery Disconnect

1шт.

22

47377829

DECAL

24V Battery Disconnect

1шт.

23

47377888

ELECTRIC CABLE

Chassis Ground

1шт.

24

47377880

ELECTRIC CABLE

24V Power

1шт.

25

47377886

ELECTRIC CABLE

12V Power

1шт.

26

47377474

ELECTRIC CABLE

Starter

1шт.

27

47377891

ELECTRIC CABLE

Alternator

1шт.

28

515-23206

CLAMP,13/16", Insul, 3/8" Bolt

5шт.

29

47554509

BOOT

Alternator Cable

1шт.

30

47377905

ELECTRIC CABLE

Cab Power, Incl 47

1шт.

31

84199726

CABLE

12V Disconnect Switch

1шт.

32

515-23317

CLAMP,31.75mm ID, 10.3mm Bolt Hole, P Type

1шт.

33

L111928

CLAMP

Double

3шт.

34

515-23190

CLAMP,3/4", Insul, 3/8" Bolt

1шт.

35

515-23159

CLAMP,5/8", Insul, 3/8" Bolt

1шт.

36

515-23286

CLAMP,1-1/8", Insul, 3/8" Bolt

2шт.

37

84564873

BRACKET

DEF Bundle

1шт.

38

627-8020

BOLT,Hex, M8 x 1.25 x 20mm, Cl 10.9, Full Thd

2шт.

39

515-24302

CLAMP,1 3/16", Insul, 7/16" Bolt

1шт.

40

L18331

CABLE TIE,375.9mm L, Nylon, Black

15"

7шт.

41

829-1410

NUT,M10 x 1.5, Cl 10.9

4шт.

42

829-1408

NUT,Hex, M8 x 1.25, Cl 10.9

4шт.

43

896-11012

WASHER,13.5mm ID x 24mm OD x 3mm Thk

1шт.

44

829-1412

NUT,M12, Cl 10.9

1шт.

45

844-10020

BOLT,Hvy Hex, M10 x 20mm, Cl 8.8

2шт.

46

408566A1

INSERT,M8

Threaded, M8

2шт.

47

87455597

FUSE,200A

Cab Power

1шт.

Выбрано товаров: 48
