Запчасти Case IH STEIGER 580 (25.108.AA[02]) - AXLE CARRIER ASSY, 550, 580, 600, 620 (25) - FRONT AXLE SYSTEM

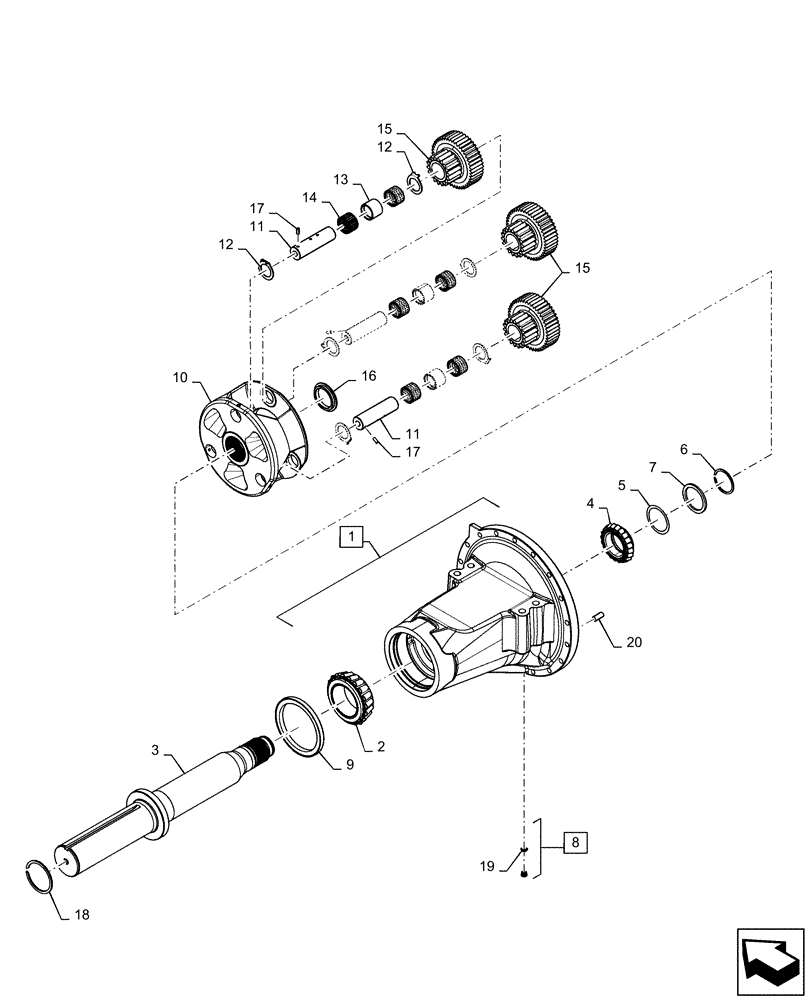

Схема запчастей Case IH STEIGER 580 - (25.108.AA[02]) - AXLE CARRIER ASSY, 550, 580, 600, 620 (25) - FRONT AXLE SYSTEM
19
4
14
15
13
7
8
1
5
9
12
10
6
18
16
3
20
15
17
11
12
17
11
2

Артикул

Название

Примечание

Количество

1

87710032

AXLE CARRIER

600 Series, Incl 20

1шт.

2

87746866

ROLLER BEARING,136.53mm ID x 190.5mm OD x 39.69mm W

Cone and Cup Assy, Lower

1шт.

3

47574037

SHAFT

Asembly, 600 Series Axle, 140mm OD

1шт.

4

87746863

ROLLER BEARING,105mm ID x 160mm OD x 35mm W

Cone and Cup Assy, Upper

1шт.

5

437392A1

SHIM,105.85mm ID x 130mm OD x 0.76mm Thk

1шт.

5

437393A1

SHIM,105.85mm ID x 130mm OD x 0.3mm Thk

1шт.

5

437394A1

SHIM,105.85mm ID x 130mm OD x 0.13mm Thk

1шт.

5

437395A1

SHIM,105.85mm ID x 130mm OD x 0.1mm Thk

1шт.

5

437396A1

SHIM,105.85mm ID x 130mm OD x 0.076mm Thk

1шт.

6

435222A1

RING, SNAP

Rear Axle Retaining, 96.72mm ID

1шт.

7

436752A1

THRUST BEARING,105.4mm ID x 130.9mm OD x 7.5mm Thk

105.4mm ID x 131mm OD

1шт.

8

221578A1

PLUG,M18 x 1.5 ORB

Incl 19

1шт.

9

87711037

SHAFT SEAL,220mm ID x 265mm OD x 19mm Thk

220mm ID x 265mm OD

1шт.

10

47518392

PLANET CARRIER

Compound Gear Assembly

1шт.

11

446312A1

SHAFT, PLANETARY CAR

18 Teeth / 44 Teeth

3шт.

12

397449A1

THRUST WASHER,59mm ID x 84mm OD x 3mm Thk

59mm ID x 84mm OD

6шт.

13

84150840

SPACER

Needle Bearing, 58.3mm ID x 70.75mm OD

3шт.

14

84150830

NEEDLE BEARING,Needle, 7.94mm OD x 65.43mm L

Planetary Gear Assembly

156шт.

15

357347A2

GEAR,44T/18T

Planetary Gear Assembly

3шт.

16

435216A1

SPACER,90.85mm ID x 109.95mm OD x 17mm L

92.85mm ID x 128mm OD

1шт.

17

838-31025

PIN,M10 x 25, Coiled

3шт.

18

800-11140

RING

Retaining, 140mm

4шт.

19

9617873

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

1шт.

20

87742360

DOWEL,M20 x 50mm, HDN

2шт.

Выбрано товаров: 24
