Запчасти Case IH STEIGER 580 (25.102.AD[02]) - FRONT AXLE HOUSING & COVERS, 550, 580, 600, 620 (25) - FRONT AXLE SYSTEM

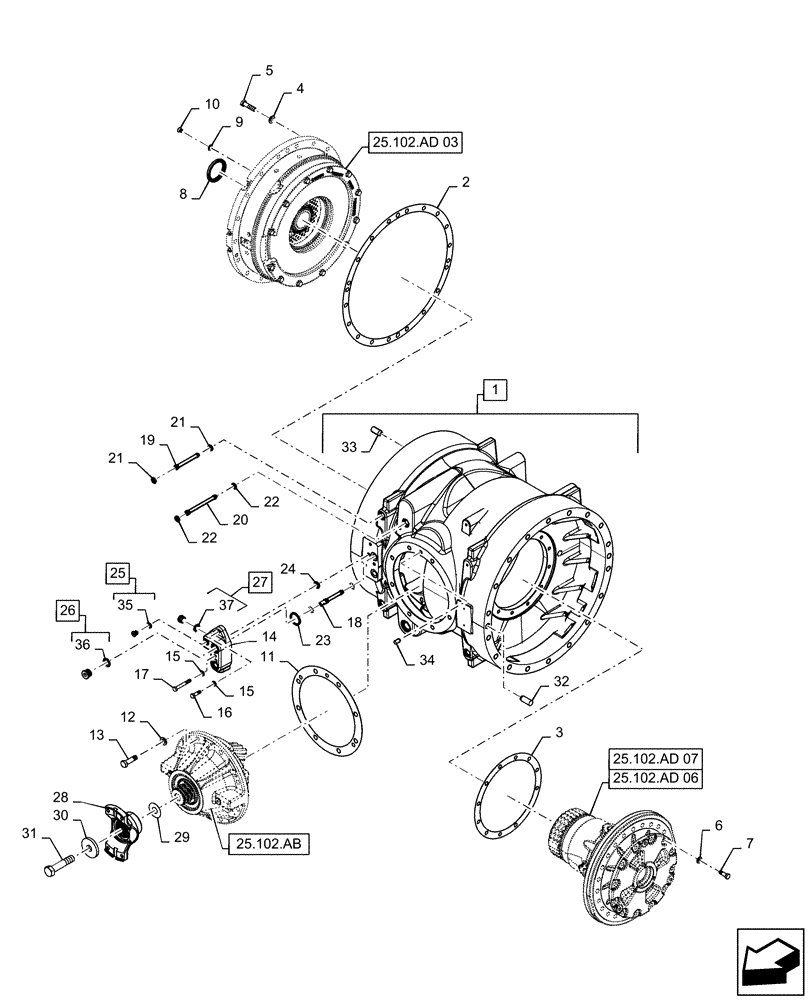

Схема запчастей Case IH STEIGER 580 - (25.102.AD[02]) - FRONT AXLE HOUSING & COVERS, 550, 580, 600, 620 (25) - FRONT AXLE SYSTEM
17
11
16
6
27
25.102.ad 07
24
2
31
15
33
15
29
1
21
37
21
20
34
10
4
9
35
13
25.102.ad 03
5
18
14
12
23
22
32
3
25
36
7
28
22
19
25.102.ab
8
25.102.ad 06
30
26

Артикул

Название

Примечание

Количество

1

47499009

HOUSING

Assembly, Center 600 Series, Incl 32 - 34

1шт.

2

279709A1

SHIM,513.5mm ID x 573mm OD x 0.076mm Thk

1шт.

2

279710A1

SHIM,513.5mm ID x 573mm OD x 0.102mm Thk

1шт.

2

279711A1

SHIM,513.5mm ID x 573mm OD x 0.127mm Thk

1шт.

2

279712A1

SHIM,513.5mm ID x 573mm OD x 0.508mm Thk

1шт.

3

255121A1

SHIM,290mm ID x 345mm OD x 0.076mm Thk

1шт.

3

255122A1

SHIM,290mm ID x 345mm OD x 0.102mm Thk

1шт.

3

255123A1

SHIM,290mm ID x 345mm OD x 0.13mm Thk

1шт.

3

255124A1

SHIM,290mm ID x 345mm OD x 0.5mm Thk

1шт.

4

896-12014

WASHER,15.5mm ID x 28mm OD x 3mm Thk

18шт.

5

828-14055

BOLT,Hex, M14 x 2 x 55mm, Cl 10.9

18шт.

6

896-12012

WASHER,13.5mm ID x 24mm OD x 3mm Thk

12шт.

7

628-12035

BOLT,Hex, M12 x 1.75 x 35mm, Cl 10.9, Full Thd

12шт.

8

139059C1

SEAL,70mm ID x 90mm OD x 8mm Thk

Oil

1шт.

9

95-81100

WASHER,33/64" x 7/8" x .049"

3шт.

10

843-1812

SCREW,Flat, M8 x 12mm, Class 4.8

3шт.

11

279715A4

SHIM,288mm ID x 363mm OD x 0.102mm Thk

1шт.

11

279716A4

SHIM,288mm ID x 363mm OD x 0.127mm Thk

1шт.

11

279717A4

SHIM,288mm ID x 363mm OD x 0.508mm Thk

1шт.

11

279714A4

SHIM,288mm ID x 363mm OD x 0.076mm Thk

1шт.

12

896-12016

WASHER,17.5mm ID x 30mm OD x 4mm Thk

8шт.

13

828-16055

BOLT,Hex, M16 x 2 x 55mm, Cl 10.9

8шт.

14

47434754

MANIFOLD

Axle Lube

1шт.

15

895-11010

WASHER,11mm ID x 20mm OD x 2mm Thk

3шт.

16

628-10035

BOLT,Hex, M10 x 1.5 x 35mm, Cl 10.9, Full Thd

2шт.

17

828-10075

BOLT,Hex, M10 x 1.5 x 75mm, Cl 10.9

1шт.

18

86985628

TUBE,7.50mm ID x 11.85mm OD x 117mm L

2шт.

19

84468365

TUBE

Service Break Jumper

1шт.

20

298567A1

TUBE,11.85 mm OD, 156 mm Length

1шт.

21

47795329

O-RING,0.07" Thk x 0.426" ID, -13, Cl 8, Duro 90

4шт.

22

47795330

O-RING,0.07" Thk x 0.551" ID, -15, Cl 8, 90 Duro

4шт.

23

238-5122

O-RING,0.103" Thk x 1.11" ID, -122, Cl 5, 75 Duro

2шт.

24

238-5110

O-RING,0.103" Thk x 0.362" ID, -110, Cl 5, 75 Duro

1шт.

25

221576A1

PLUG,Hex Soc, M14 x 1.5, ORB

Incl 35

1шт.

26

221580A1

PLUG,M27 x 2 ORB

Incl 36

1шт.

27

218-5211

PLUG,Hex Soc, 7/8"-14 ORB

Incl 37

1шт.

28

87659899

YOKE

9 C, Sliding

1шт.

29

178545A1

SHIM,25mm ID x 60mm OD x 0.076mm Thk

1шт.

29

178546A1

SHIM,25mm ID x 60mm OD x 0.101mm Thk

1шт.

29

178547A1

SHIM,25mm ID x 60mm OD x 0.130mm Thk

1шт.

29

220779A1

SHIM,25mm ID x 60mm OD x 0.5mm Thk

1шт.

30

228967A2

WASHER,25mm ID x 78mm OD x 10mm Thk

25mm ID x 78mm OD x 10mm Thk

1шт.

31

828-24110

BOLT,Hex, M24 x 3 x 110mm, Cl 10.9

1шт.

32

87742360

DOWEL,M20 x 50mm, HDN

4шт.

33

837-16040

DOWEL,M16 x 40

2шт.

34

837-12025

DOWEL,M12 x 25

1шт.

35

86598099

O-RING,2.2mm Thk x 11.3mm ID, Cl 6

1шт.

36

86598103

O-RING,2.9mm Thk x 23.6mm ID, Cl 6, 90 Duro

1шт.

37

167269

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

1шт.

Выбрано товаров: 49
