(21.155.02) - POWER SHIFT TRANSMISSION - SHAFT ASSEMBLIES AND CLUTCHES, PS6, 9C

Запчасти Case IH STEIGER 550 (21.155.02) - POWER SHIFT TRANSMISSION - SHAFT ASSEMBLIES AND CLUTCHES, PS6, 9C (21) - TRANSMISSION

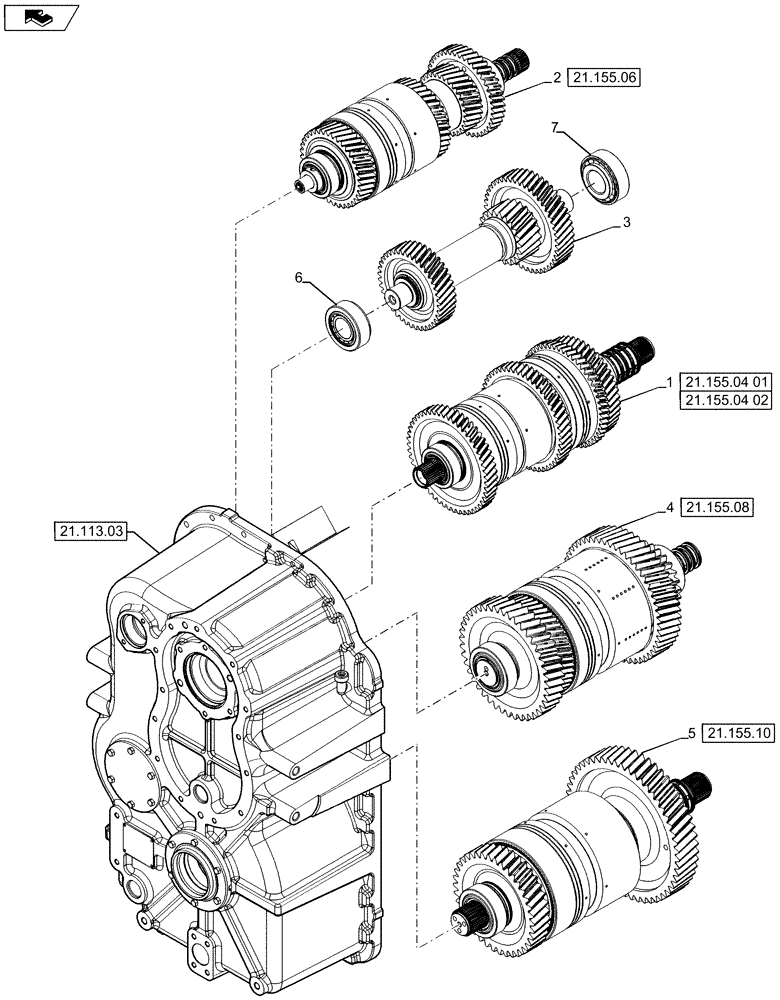

Схема запчастей Case IH STEIGER 550 - (21.155.02) - POWER SHIFT TRANSMISSION - SHAFT ASSEMBLIES AND CLUTCHES, PS6, 9C (21) - TRANSMISSION
4
21.155.04 02
21.155.08
home
7
1
6
3
21.155.06
21.155.10
21.155.04 01
5
2
21.113.03
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

84314626

SHAFT

1st, 7" Clutch

1шт.

2

84314687

SHAFT

2nd, 7" Clutch

1шт.

3

84315276

SHAFT

3rd

1шт.

4

84314689

SHAFT

4th, 9" Clutch

1шт.

5

84314739

SHAFT

5th, 9" Clutch

1шт.

6

84315279

ROLLER BEARING

Taper

1шт.

7

84315281

ROLLER BEARING

Taper

1шт.

Выбрано товаров: 7
