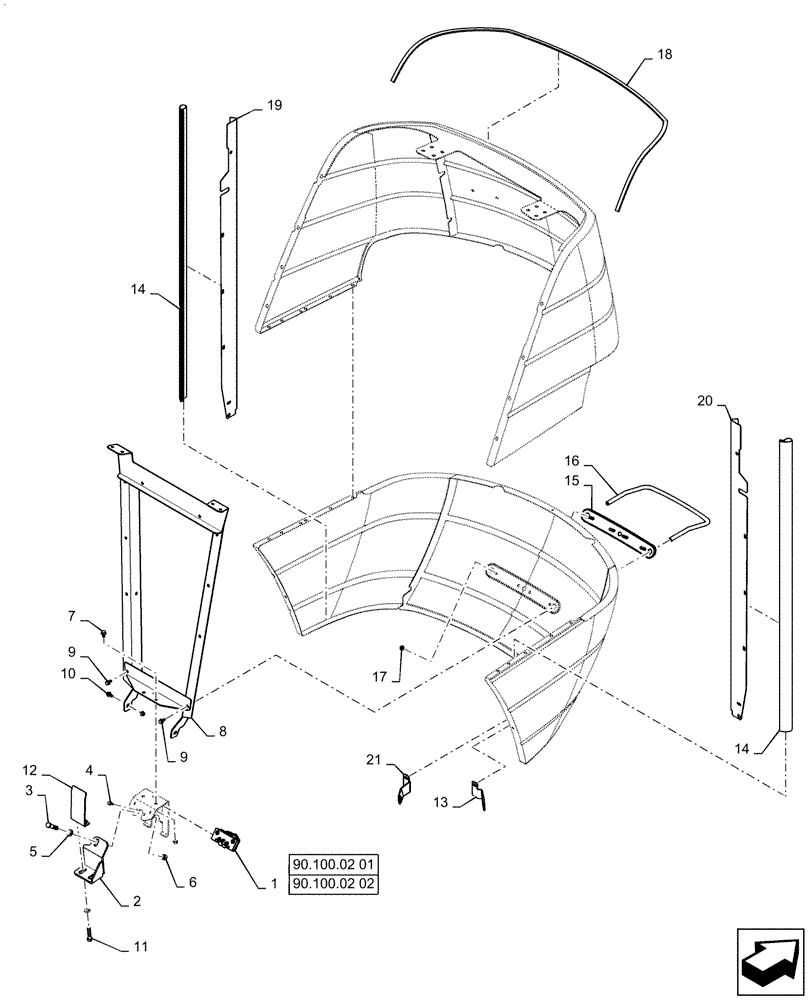

Запчасти Case IH STEIGER 550 (90.100.01[02]) - ENGINE HOOD, GRILLE, AND SUPPORT (90) - PLATFORM, CAB, BODYWORK AND DECALS

1

84394414

LATCH

Latch, Hood

1шт.

See Figure 90.100.02(01) or 90.100.02(02) for Latch Linkage Assembly

1шт.

2

84390041

PLATE

Plate, Striker

1шт.

3

87556445

BOLT

Striker

1шт.

4

844-6020

BOLT,Hvy Hex, M6 x 20mm, Cl 8.8

16шт.

5

895-15012

WASHER,M12 x 28 x 2.5

3шт.

6

832-46412

NUT,M12 x 1.75, Cl 8

1шт.

7

844-8020

BOLT,Hvy Hex, M8 x 20mm, Cl 8.8

2шт.

8

84199643

SUPPORT

Grille

1шт.

9

844-8016

BOLT,Hex, M8 x 16mm, Cl 8.8

5шт.

10

844-8025

BOLT,Hvy Hex, M8 x 25mm, Cl 8.8

10шт.

11

827-12050

BOLT,Hex, M12 x 1.75 x 50mm, Cl 10.9

2шт.

12

84484807

BACKING PLATE

1шт.

13

84347352

BRACKET

Hood Locking, Hood Side

1шт.

14

87350510

SEAL

Bulk Bulb Seal - 4.4 ft. required

2шт.

15

87498055

PLATE

Trigger Support

1шт.

16

84197327

HANDLE

Hood

1шт.

17

131-431

PUSH-ON NUT,Self, Threading, 1/4"

8шт.

18

47388803

SEAL

Foam HP

1шт.

19

84341431

PLATE

Seal, LH

1шт.

20

84341430

PLATE

Seal, RH

1шт.

21

84347348

PLATE

Hood Locking, Radiator Side

1шт.
