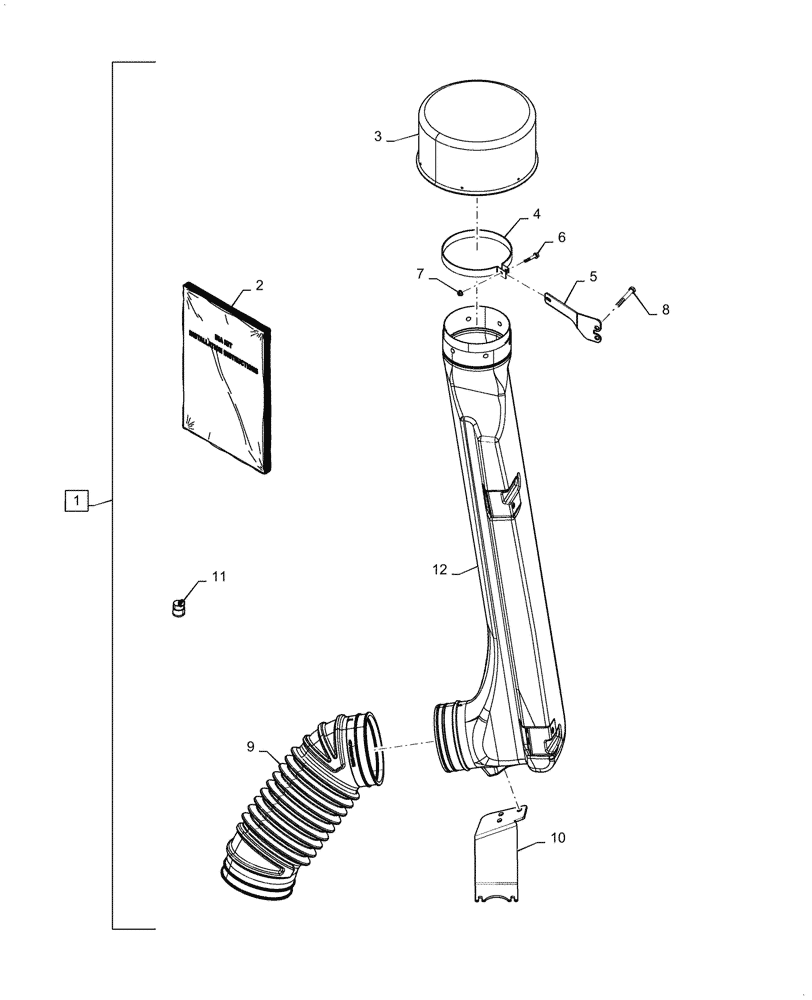

Запчасти Case IH STEIGER 550 (88.010.09) - DIA KIT, AIR CLEANER ASSY (88) - ACCESSORIES

1

48102957

Intake, Incl 2 - 12

AIR PRE-CLEANER ASSY

1шт.

2

48102958

Manual

INSTRUCTION

1шт.

3

48065755

Precleaner, Top Spin

COVER

1шт.

4

48102948

Intake Duct Support

CLAMP

1шт.

5

48102950

Bracket, Intake Duct Support

CLAMP

1шт.

6

844-8045

BOLT,Hvy Hex, M8 x 45mm, Cl 8.8

1шт.

7

825-2408

FLANGE NUT,M8 x 1.25, Flg, Cl 8

1шт.

8

827-12090

BOLT,Hex, M12 x 1.75 x 90mm, Cl 10.9

2шт.

9

47386152

BELLOWS

Air Intake

1шт.

10

84580303

BRACKET

Air Duct Support

1шт.

11

84418779

RESTRICTION SWITCH

Air

1шт.

12

48065751

Air, 8" OD

DUCT

1шт.
