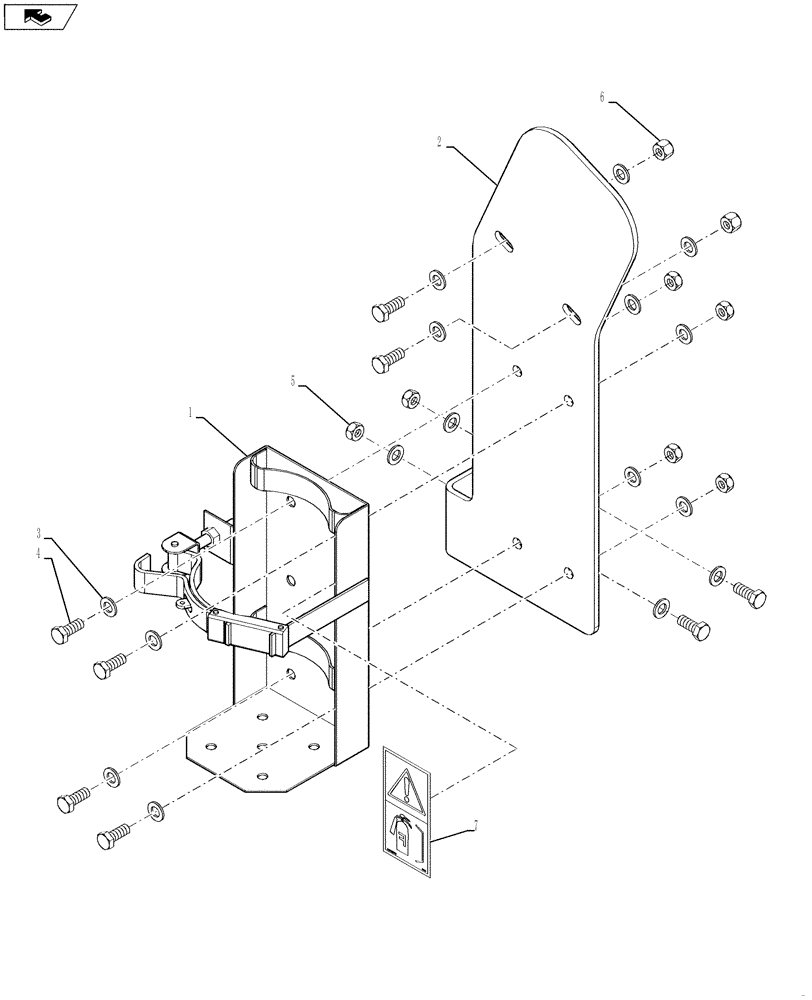

Запчасти Case IH STEIGER 550 (05.102.02) - FIRE EXTINGUISHER MOUNTING - WHEELED (EUROPE) (05) - SERVICE & MAINTENANCE

1

87427312

BRACKET, SUPPORTING

Fire Extinguisher

1шт.

2

84307073

BRACKET, SUPPORTING

Fire Extinguisher

1шт.

3

895-11010

WASHER,11mm ID x 20mm OD x 2mm Thk

16шт.

4

627-10025

BOLT,Hex, M10 x 1.5 x 25mm, Cl 10.9, Full Thd

8шт.

5

829-1410

NUT,M10 x 1.5, Cl 10.9

6шт.

6

832-10410

NUT,M10 x 1.5, Cl 8

2шт.

7

84269927

DECAL

Fire Extinguisher

1шт.
