Запчасти Case IH STEIGER 550 (41.216.03) - STEERING CYLINDER - STEIGER 550 & 600, QUADTRAC 550 & 600 (41) - STEERING

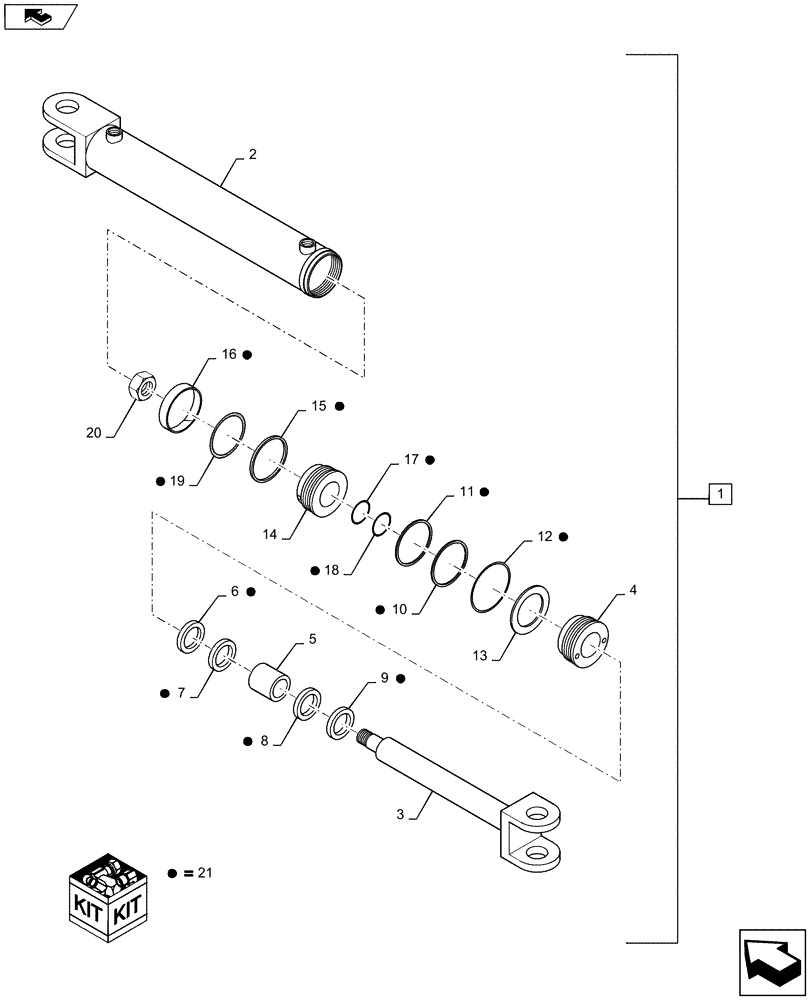

Схема запчастей Case IH STEIGER 550 - (41.216.03) - STEERING CYLINDER - STEIGER 550 & 600, QUADTRAC 550 & 600 (41) - STEERING
15
21
21
3
8
21
9
4
21
21
16
6
13
12
21
21
7
home
11
21
14
17
10
21
5
2
1
21
21
20
19
21
21
18
21

Артикул

Название

Примечание

Количество

1

87705053

CYLINDER,Double Acting, 50mm Rod, 526.7mm Stroke

Steering, Steiger 550 & 600, QuadTrac 550 & 560, Incl 2 - 20

1шт.

1

84577089

STEERING CYLINDER,Double Acting, 50mm Rod, 526.7mm Stroke

Steiger 550 & 600, QuadTrac 550 & 560, Incl 2 - 20

1шт.

2

84352041

TUBE

Cylinder, Used on Cylinder 87705053

1шт.

2

NSS

NOT SOLD SEPARAT

Cylinder Tube, Incl in 1, Used on Cylinder 84577089

1шт.

3

84352042

ROD

Cylinder, Used on Cylinder 87705053

1шт.

3

47376009

CYLINDER,50mm OD

Rod, Used on Cylinder 84577089

1шт.

4

84352097

COVER

Gland, Used on Cylinder 87705053

1шт.

4

47376049

CYLINDER,95.2mm Bore, 50mm Rod

Gland, Used on Cylinder 84577089

1шт.

5

87378380

BUSHING

Gland, Used on Cylinder 87705053

1шт.

5

47376052

SNAP RING

Retaining, Used on Cylinder 84577089

1шт.

6

NSS

NOT SOLD SEPARAT

Incl in 21

1шт.

7

NSS

NOT SOLD SEPARAT

Incl in 21

1шт.

8

NSS

NOT SOLD SEPARAT

Incl in 21

1шт.

9

NSS

NOT SOLD SEPARAT

Incl in 21

1шт.

10

NSS

NOT SOLD SEPARAT

Incl in 21

1шт.

11

NSS

NOT SOLD SEPARAT

Incl in 21

1шт.

12

NSS

NOT SOLD SEPARAT

Incl in 21

1шт.

13

84352373

WASHER

Used on Cylinder 87705053

1шт.

13

47376066

RING

Used on Cylinder 84577089

1шт.

14

84352367

PISTON

Used on Cylinder 87705053

1шт.

14

47376023

PISTON,111mm Bore, 50mm Rod

Used on Cylinder 84577089

1шт.

15

NSS

NOT SOLD SEPARAT

Incl in 21

1шт.

16

NSS

NOT SOLD SEPARAT

Incl in 21

1шт.

17

NSS

NOT SOLD SEPARAT

Incl in 21

1шт.

18

NSS

NOT SOLD SEPARAT

Incl in 21

1шт.

19

NSS

NOT SOLD SEPARAT

Incl in 21

1шт.

20

84352370

NUT

Used on Cylinder 87705053

1шт.

20

47376028

LOCK NUT

Used on Cylinder 84577089

1шт.

21

84353678

SEAL KIT

Steering Cylinder, Incl 6 - 12, 15 - 19, Used on Cylinder 87705053

1шт.

21

47376056

SEAL KIT

Steering Cylinder, Incl 6 - 12, 15 - 19, Used on Cylinder 84577089

1шт.

Выбрано товаров: 30
