Запчасти Case IH STEIGER 550 (39.127.01) - CENTER CONNECTING LINK - WHEELED (39) - FRAMES AND BALLASTING

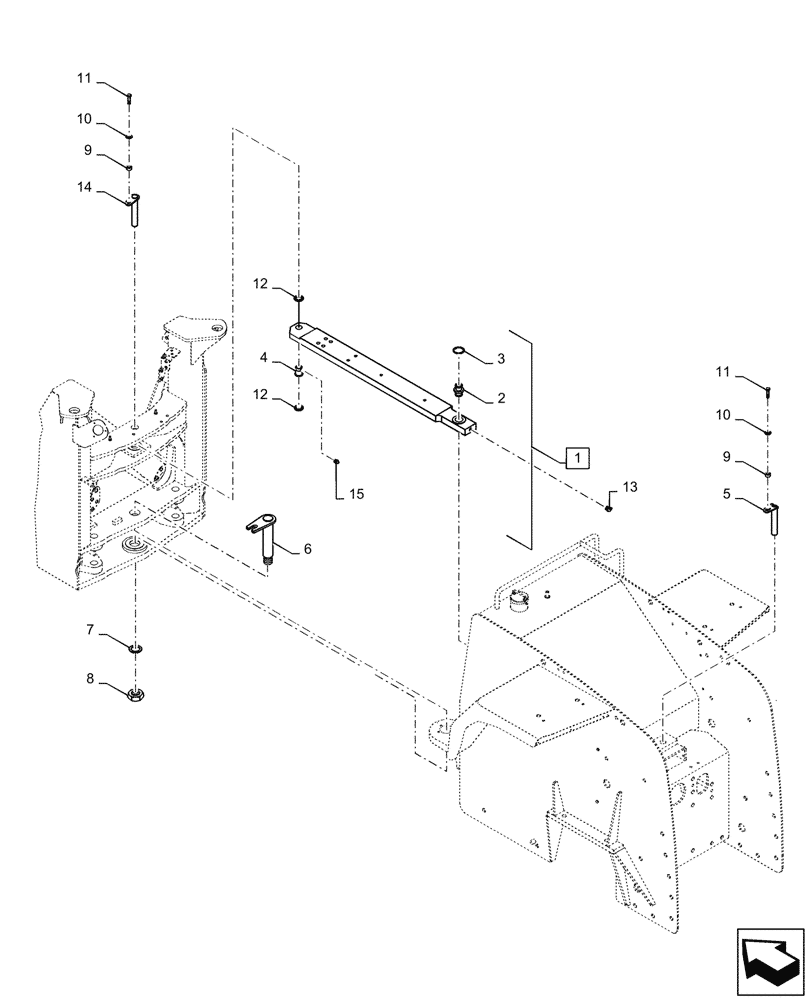

Схема запчастей Case IH STEIGER 550 - (39.127.01) - CENTER CONNECTING LINK - WHEELED (39) - FRAMES AND BALLASTING
8
9
9
1
2
3
14
11
5
12
7
10
4
6
12
11
10
15
13

Артикул

Название

Примечание

Количество

1

84221628

CONNECTING LINK

Center

1шт.

2

70-5468T1

SPHERICAL BEARING,1.751" ID x 3.5625" OD x 4"

Sealed

1шт.

3

101-21354

SNAP RING,#354, Int

1шт.

4

435529A1

BUSHING,44.5mm ID x 76.58mm OD x 96.01mm L

1шт.

5

195941A1

PIN,44.37mm OD x 205mm L

Flag

1шт.

6

87695889

PIN,87.3mm OD x 342mm L

Articulation Joint

1шт.

7

87698859

WASHER,2.31" ID x 3.5" OD x 0.25" Thk

1шт.

8

87698858

JAM NUT,2-1/4" - 12, Grade 5

1шт.

9

70-5967T1

SPACER,16.7mm ID x 22.2mm OD x 11.2mm

2шт.

10

896-11016

WASHER,17.5mm ID x 30mm OD x 4mm Thk

2шт.

11

627-16040

BOLT,Hex, M16 x 2 x 40mm, Cl 10.9, Full Thd

2шт.

12

D95143

WIPER SEAL,44.42mm ID x 57.17mm OD x 7.92mm Thk

2шт.

13

219-36

LUBE NIPPLE,45 Degree Elbow, 1/8" - 27 NPTF

1шт.

14

87399531

LARGE PIN,44.37mm OD x 210mm L

Flag

1шт.

15

219-1

LUBE NIPPLE,1/8" - 27 NPTF

1шт.

Выбрано товаров: 15
