Запчасти Case IH STEIGER 550 (39.100.06[02]) - REAR FRAME / FUEL TANKS AND FENDERS - STEIGER 550 & 600 ASN ZBF126024 (39) - FRAMES AND BALLASTING

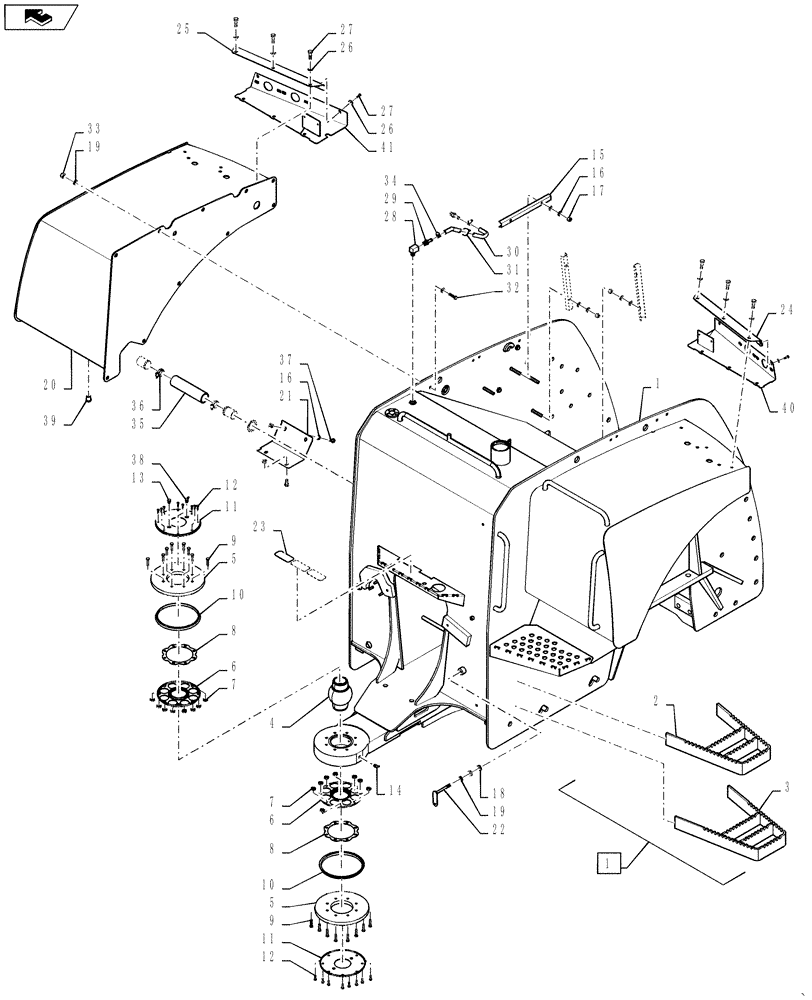

Схема запчастей Case IH STEIGER 550 - (39.100.06[02]) - REAR FRAME / FUEL TANKS AND FENDERS - STEIGER 550 & 600 ASN ZBF126024 (39) - FRAMES AND BALLASTING
40
14
29
5
16
6
4
22
27
5
1
16
33
8
38
35
home
19
15
26
32
11
31
2
8
10
41
36
9
12
3
34
7
37
25
39
26
24
7
17
21
20
6
23
10
12
27
9
18
1
30
28
13
19
11

Артикул

Название

Примечание

Количество

1

84416681

FRAME

Rear, Incl 2 - 3

1шт.

For Breather and Filler Cap See Fig 39.100.10 (01) (North America) or 39.100.10 (02) (Europe)

1шт.

2

248672A1

STEP

Lower Rear

1шт.

3

249875A1

STEP

Center Rear

1шт.

4

87644205

BEARING ASSY,119mm ID x 139.7mm OD x 182mm W

Spherical Plain Extended

1шт.

5

84179787

RING

Retaining

2шт.

6

84151002

HOUSING

Assy

2шт.

7

432444A1

SPACER

Retainer

16шт.

8

87644212

RETAINING PLATE

2шт.

9

827-10040

BOLT,Hex, M10 x 1.5 x 40mm, Cl 10.9, Full Thd

16шт.

10

84307902

RUBBER SEAL

Articulation Joint

2шт.

11

87644215

COVER

Articulation Joint

2шт.

12

463-61010

SCREW,Hex, #10 - 32 x 5/8"

16шт.

13

217-402

PLUG,Hex Hd, 1/8" - 27 NPT

3шт.

14

219-36

LUBE NIPPLE,45 Degree Elbow, 1/8" - 27 NPTF

1шт.

15

84348150

CHANNEL

Wire Guide

3шт.

16

895-11008

WASHER,9mm ID x 16mm OD x 1.6mm Thk

11шт.

17

832-10408

NUT,M8 x 1.25, Cl 8.8

6шт.

18

321232A1

BUSHING,11mm ID x 31mm OD x 6mm L

Rubber

2шт.

19

896-15012

WASHER,13.5mm ID x 28mm OD x 4mm Thk

14шт.

20

84153456

FUEL TANK

RH, Saddle/Fender

1шт.

21

84347298

COVER

Fuel Hose

1шт.

22

406390A1

HANDLE

Linkage Channel

1шт.

23

87750668

PAD,2" x 4-1/2"

Non-Slip

3шт.

24

84476765

MOUNTING PLATE

Light Pod, LH

1шт.

25

84476772

MOUNTING PLATE

Light Pod, RH

1шт.

26

895-15008

WASHER,9mm ID x 20mm OD x 1.6mm Thk

16шт.

27

627-8025

BOLT,Hex, M8 x 1.25 x 25mm, Cl 10.9, Full Thd

16шт.

28

217-1019

ELBOW,1/2" - 14 Female x 1/2" - 14 Male

1шт.

29

217-168

FITTING,1/2" Hose Barb x 1/2" Male NPTF

2шт.

30

84153461

HOSE

Breather

1шт.

31

L11541

CABLE TIE,203.2mm L, Nylon

Black, 7 - 8 Nylon

1шт.

32

827-12045

BOLT,Hex, M12 x 1.75 x 45mm, Cl 10.9, Full Thd

3шт.

33

832-10412

NUT,M12 x 1.75, Cl 8

10шт.

34

214-1410

HOSE CLAMP,#10, 0.56" - 1.06", Type F Worm

2шт.

35

84247008

FUEL HOSE,50.8mm ID x 245mm L, SAE 30R6

Transfer

1шт.

36

86050202

HOSE CLAMP,1.59” - 2.5”, Worm Gear

2шт.

37

627-8020

BOLT,Hex, M8 x 1.25 x 20mm, Cl 10.9, Full Thd

4шт.

38

219-40

LUBE NIPPLE,65 Degree Elbow, 1/8" - 27 NPTF

1шт.

39

217-410

PLUG,Hex Hd, 1/2" - 14 NPT

2шт.

40

84476768

MOUNTING PLATE

LH Light Pod, Years: -31-AUG-12

1шт.

40

47423446

PANEL

PANEL LH Light Pod, Start Year: 01-SEP-12

1шт.

41

84476775

MOUNTING PLATE

RH Light Pod, Years: -31-AUG-12

1шт.

41

47423448

PANEL

PANEL RH Light Pod, Start Year: 01-SEP-12

1шт.

Выбрано товаров: 44
