Запчасти Case IH STEIGER 550 (39.100.06[01]) - REAR FRAME / FUEL TANKS AND FENDERS - STEIGER 550 & 600 BSN ZBF126024 (39) - FRAMES AND BALLASTING

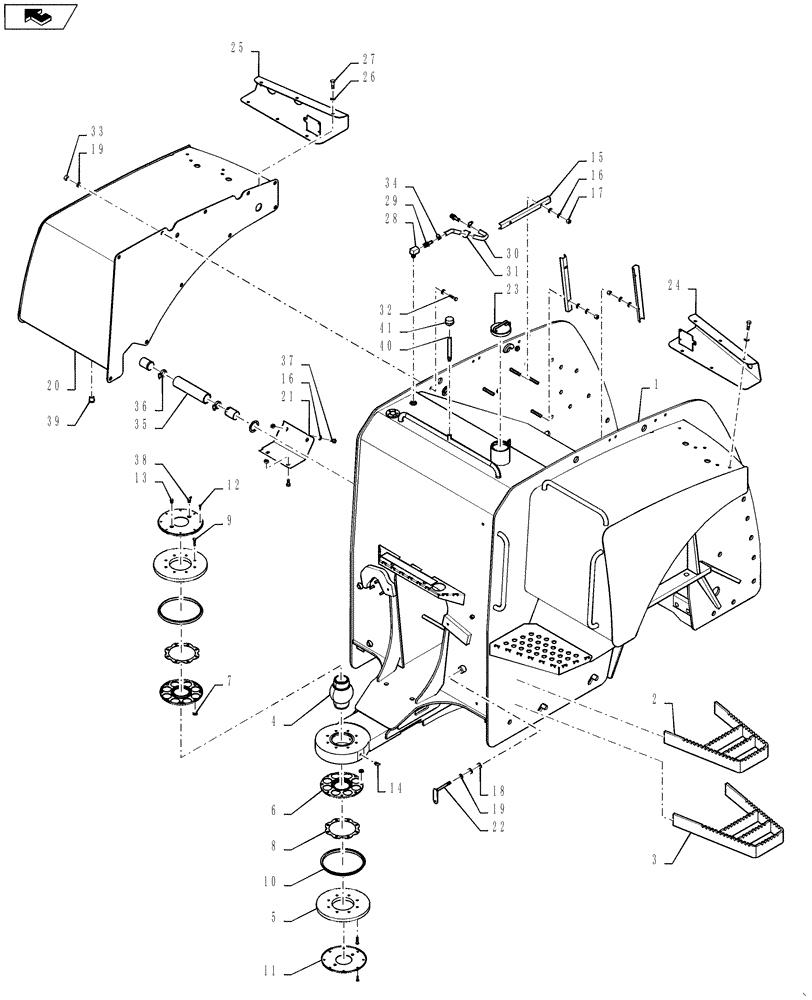

Схема запчастей Case IH STEIGER 550 - (39.100.06[01]) - REAR FRAME / FUEL TANKS AND FENDERS - STEIGER 550 & 600 BSN ZBF126024 (39) - FRAMES AND BALLASTING
24
16
4
29
30
26
2
38
32
34
36
22
19
31
16
33
27
14
41
8
25
21
12
6
1
10
28
17
15
home
18
5
23
40
20
7
37
3
9
39
35
11
19
13

Артикул

Название

Примечание

Количество

1

84153454

FRAME

Rear, Incl 2 - 3

1шт.

2

248672A1

STEP

Lower Rear

1шт.

3

249875A1

STEP

Center Rear

1шт.

4

87644205

BEARING ASSY,119mm ID x 139.7mm OD x 182mm W

Spherical Plain Extended

1шт.

5

84179787

RING

Retaining

2шт.

6

84151002

HOUSING

Assy

2шт.

7

432444A1

SPACER

Retainer

16шт.

8

87644212

RETAINING PLATE

2шт.

9

827-10040

BOLT,Hex, M10 x 1.5 x 40mm, Cl 10.9, Full Thd

16шт.

10

84307902

RUBBER SEAL

Articulation Joint

2шт.

11

87644215

COVER

Articulation Joint

2шт.

12

463-61010

SCREW,Hex, #10 - 32 x 5/8"

16шт.

13

217-402

PLUG,Hex Hd, 1/8" - 27 NPT

3шт.

14

219-36

LUBE NIPPLE,45 Degree Elbow, 1/8" - 27 NPTF

1шт.

15

84348150

CHANNEL

Wire Guide

3шт.

16

895-11008

WASHER,9mm ID x 16mm OD x 1.6mm Thk

11шт.

17

832-10408

NUT,M8 x 1.25, Cl 8.8

6шт.

18

321232A1

BUSHING,11mm ID x 31mm OD x 6mm L

Rubber

2шт.

19

896-15012

WASHER,13.5mm ID x 28mm OD x 4mm Thk

14шт.

20

84153456

FUEL TANK

RH, Saddle/Fender

1шт.

21

84347298

COVER

Fuel Hose

1шт.

22

406390A1

HANDLE

Linkage Channel

1шт.

23

87555106

LOCKABLE FUEL CAP

1шт.

24

87499880

PLATE

Light Pod, LH

1шт.

25

87499888

PLATE

Light Pod, RH

1шт.

26

895-15008

WASHER,9mm ID x 20mm OD x 1.6mm Thk

12шт.

27

627-8025

BOLT,Hex, M8 x 1.25 x 25mm, Cl 10.9, Full Thd

12шт.

28

217-1019

ELBOW,1/2" - 14 Female x 1/2" - 14 Male

1шт.

29

217-168

FITTING,1/2" Hose Barb x 1/2" Male NPTF

2шт.

30

84153461

HOSE

Breather

1шт.

31

L11541

CABLE TIE,203.2mm L, Nylon

Black, 7 - 8 Nylon

1шт.

32

827-12045

BOLT,Hex, M12 x 1.75 x 45mm, Cl 10.9, Full Thd

3шт.

33

832-10412

NUT,M12 x 1.75, Cl 8

10шт.

34

214-1410

HOSE CLAMP,#10, 0.56" - 1.06", Type F Worm

2шт.

35

84247008

FUEL HOSE,50.8mm ID x 245mm L, SAE 30R6

Transfer

1шт.

36

86050202

HOSE CLAMP,1.59” - 2.5”, Worm Gear

2шт.

37

627-8020

BOLT,Hex, M8 x 1.25 x 20mm, Cl 10.9, Full Thd

4шт.

38

219-40

LUBE NIPPLE,65 Degree Elbow, 1/8" - 27 NPTF

1шт.

39

217-410

PLUG,Hex Hd, 1/2" - 14 NPT

2шт.

40

84387750

EXTENSION

BOSS, Fuel Tank Breather Extension

1шт.

41

90-7732T1

BREATHER

1шт.

Выбрано товаров: 41
