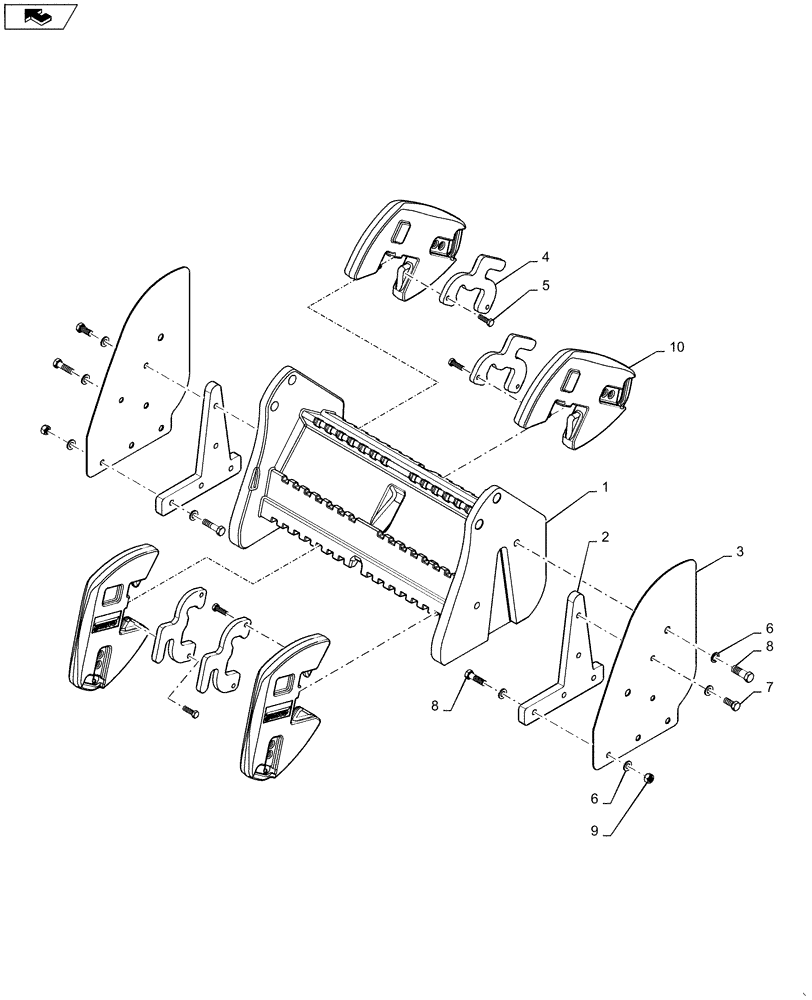

Запчасти Case IH STEIGER 550 (37.140.05) - BALLAST PACK - REAR FRAME WEIGHT (37) - HITCHES, DRAWBARS & IMPLEMENT COUPLINGS

1

84130847

SUPPORT

Rear Weight

1шт.

2

84130846

BRACKET

Support, Weight

2шт.

3

84261764

SHIELD

2шт.

4

413393A1

PLATE

Suitcase Lock

4шт.

5

627-16050

BOLT,Hex, M16 x 2 x 50mm, Cl 10.9, Full Thd

8шт.

6

896-11020

WASHER,22mm ID x 37mm OD x 4mm Thk

20шт.

7

627-20045

BOLT,Hex, M20 x 2.5 x 45mm, Cl 10.9, Full Thd

4шт.

8

827-20070

BOLT,Hex, M20 x 2.5 x 70mm, Cl 10.9

10шт.

9

829-1420

NUT,M20, Cl 10

6шт.

10

86988727

WEIGHT,45Kg

Suitcase, 45 Kg

1шт.
