(37.140.02) - WHEEL WEIGHTS - 900 & 1600 LBS

Запчасти Case IH STEIGER 550 (37.140.02) - WHEEL WEIGHTS - 900 & 1600 LBS (37) - HITCHES, DRAWBARS & IMPLEMENT COUPLINGS

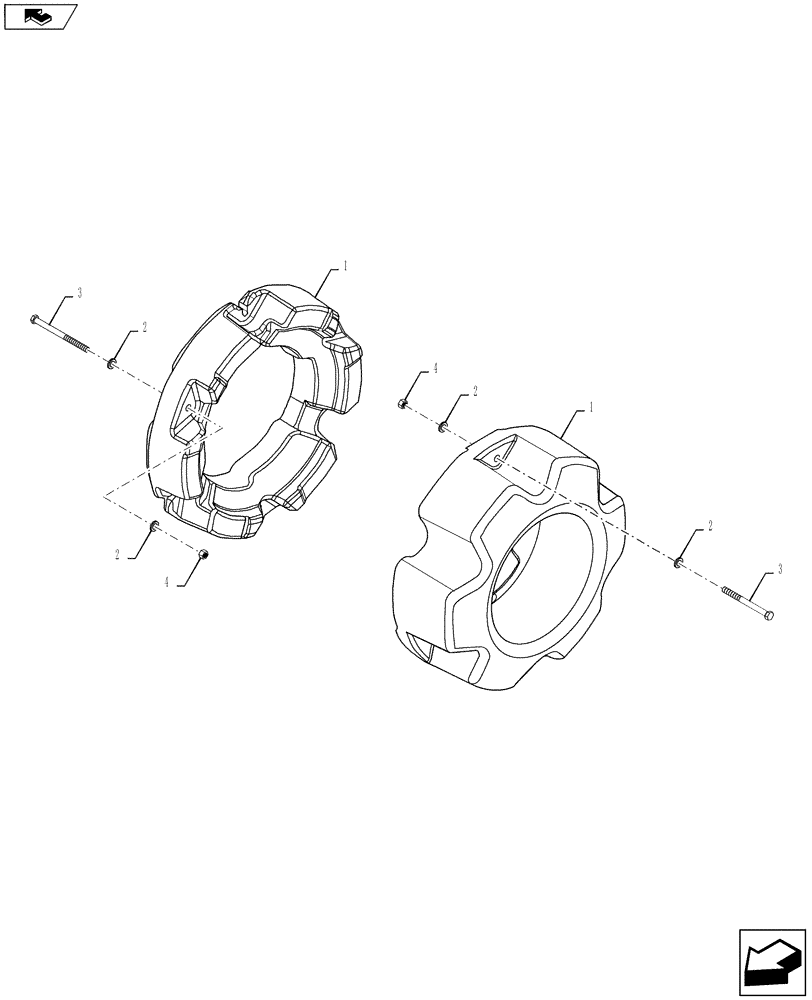

Схема запчастей Case IH STEIGER 550 - (37.140.02) - WHEEL WEIGHTS - 900 & 1600 LBS (37) - HITCHES, DRAWBARS & IMPLEMENT COUPLINGS
2
home
3
2
1
2
1
3
2
4
4
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

NSS

NOT SOLD SEPARAT

Wheel Weight, 900 lbs., Only Serviced In Kit

2шт.

1

NSS

NOT SOLD SEPARAT

Wheel Weight, 1600 lbs., Only Serviced In Kit

2шт.

2

896-11020

WASHER,22mm ID x 37mm OD x 4mm Thk

12шт.

3

827-20110

BOLT,Hex, M20 x 2.5 x 110mm, Cl 10.9

6шт.

4

832-10420

NUT,M20 x 2.5, Cl 8

6шт.

Выбрано товаров: 5
