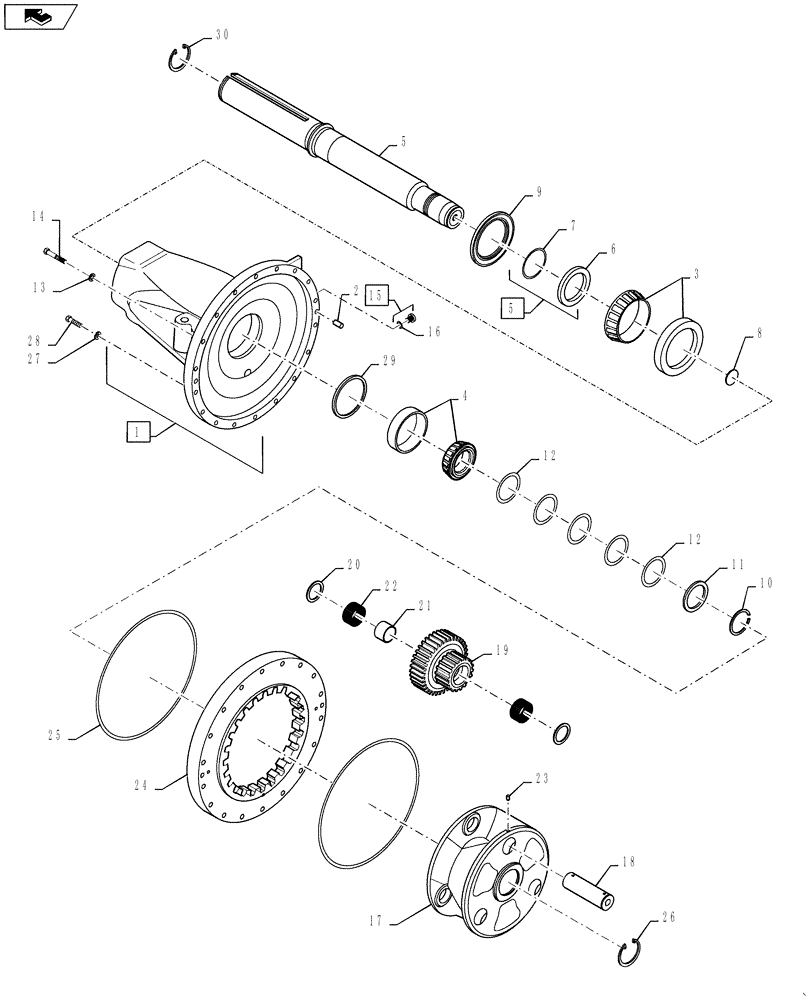

Запчасти Case IH STEIGER 550 (27.100.27) - 600 SERIES AXLE - FINAL DRIVE, WHEELED TRACTOR - STEIGER 550HD & 600 (27) - REAR AXLE SYSTEM
№
Артикул
Название
Примечание
Количество
1
87710032
AXLE CARRIER
Assy., Incl 2
1шт.
2
87742360
DOWEL,M20 x 50mm, HDN
20 x 50mm HDN PLN
2шт.
3
87746866
ROLLER BEARING,136.53mm ID x 190.5mm OD x 39.69mm W
1шт.
4
87746863
ROLLER BEARING,105mm ID x 160mm OD x 35mm W
1шт.
5
87698826
HALF SHAFT
Axle, 140 mm, Incl 6 - 8
1шт.
6
87698828
BUSHING,140.91mm ID x 220mm OD x 30mm L
115mm Axle
1шт.
7
238-5161
O-RING,0.103" Thk x 5.438" ID, -161, Cl 5, 75 Duro
1шт.
8
1981270C1
INSERT
Axle Wear
1шт.
9
87711037
SHAFT SEAL,220mm ID x 265mm OD x 19mm Thk
Rear Axle Oil
1шт.
10
435222A1
RING, SNAP
1шт.
11
436752A1
THRUST BEARING,105.4mm ID x 130.9mm OD x 7.5mm Thk
1шт.
12
437392A1
SHIM,105.85mm ID x 130mm OD x 0.76mm Thk
0.760mm
1шт.
12
437393A1
SHIM,105.85mm ID x 130mm OD x 0.3mm Thk
0.300mm
1шт.
12
437394A1
SHIM,105.85mm ID x 130mm OD x 0.13mm Thk
0.130mm
1шт.
12
437395A1
SHIM,105.85mm ID x 130mm OD x 0.1mm Thk
0.100mm
1шт.
12
437396A1
SHIM,105.85mm ID x 130mm OD x 0.076mm Thk
0.076mm
1шт.
13
95-31038
WASHER,5/16"
4шт.
14
628-8016
BOLT,Hex, M8 x 1.25 x 16mm, Cl 10.9, Full Thd
4шт.
15
221578A1
PLUG,M18 x 1.5 ORB
Incl 16
1шт.
16
637-63153
O-RING,2.2mm Thk x 15.3mm ID, Cl 6, 90 Duro
1шт.
17
435215A1
AXLE CARRIER
Planetary, Large Spline
1шт.
18
446312A1
SHAFT, PLANETARY CAR
3шт.
19
357347A2
GEAR,44T/18T
18 T / 44 T
3шт.
20
397449A1
THRUST WASHER,59mm ID x 84mm OD x 3mm Thk
6шт.
21
84150840
SPACER
3шт.
22
84150830
NEEDLE BEARING,Needle, 7.94mm OD x 65.43mm L
156шт.
23
838-31025
PIN,M10 x 25, Coiled
3шт.
24
84359727
RING GEAR
69 T, Ring
2шт.
25
87752610
O-RING
Cl 5, 600.75mm ID x 3.53mm Thk
4шт.
26
101-11350
SNAP RING,#350, Ext
2шт.
27
896-12020
WASHER,22mm ID x 37mm OD x 4mm Thk
36шт.
28
828-20140
BOLT,Hex, M20 x 2.5 x 140mm, Cl 10.9
36шт.
29
435216A1
SPACER,90.85mm ID x 109.95mm OD x 17mm L
2шт.
30
800-11140
RING
Retaining, 140mm
4шт.
Выбрано товаров: 34
