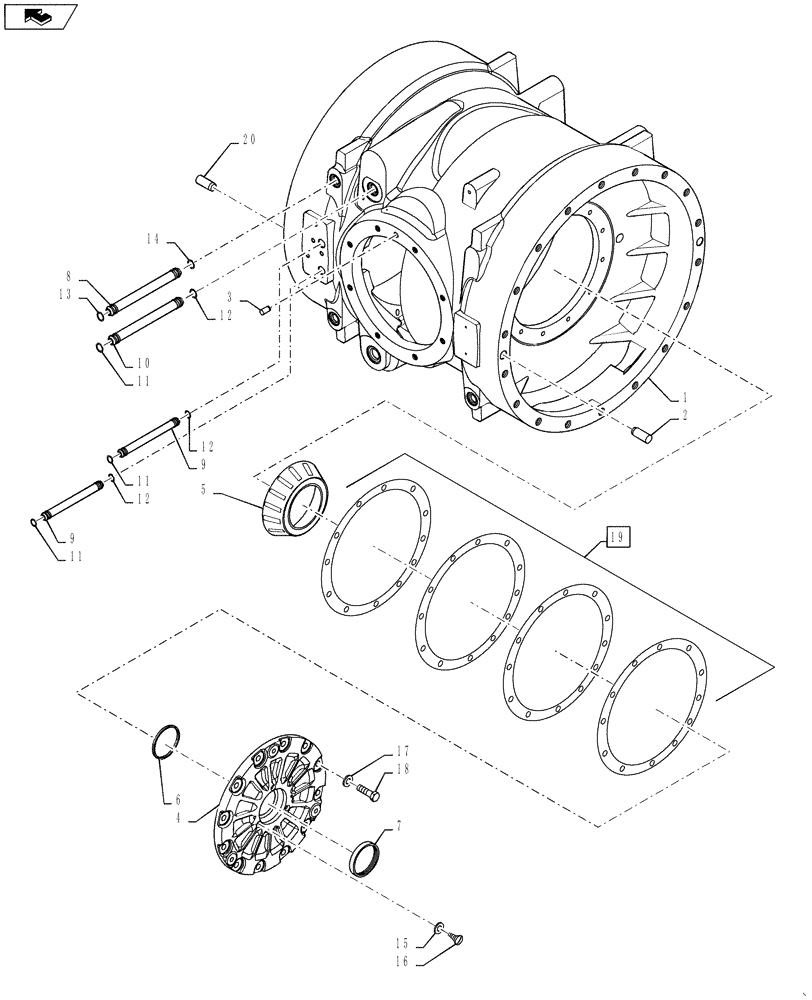

Запчасти Case IH STEIGER 550 (25.100.21) - 600 SERIES AXLE - CENTER AND LEFT-HAND CARRIER, WHEEL TRACTOR - STEIGER 550HD & 600 (25) - FRONT AXLE SYSTEM

1

87749749

AXLE HOUSING

Center, Incl 2, 3, 20

1шт.

2

87742360

DOWEL,M20 x 50mm, HDN

M20 x 50

4шт.

3

837-12025

DOWEL,M12 x 25

1шт.

4

84140079

BEARING CARRIER

LH Diff

1шт.

5

253932A1

ROLLER BEARING,119.99mm ID x 37.98mm W

1шт.

6

139060C2

SEAL,82.6mm ID x 88.6mm OD x 4.5mm Thk

1шт.

7

139059C1

SEAL,70mm ID x 90mm OD x 8mm Thk

Oil

1шт.

8

84468365

TUBE

Tube, Jumper, Service Brake

1шт.

9

86985628

TUBE,7.50mm ID x 11.85mm OD x 117mm L

Jumper. Lubrication

2шт.

10

298567A1

TUBE,11.85 mm OD, 156 mm Length

Jumper, Park Brake

1шт.

11

238-6015

O-RING,0.07" Thk x 0.551" ID, -15, Cl 6, 90 Duro

3шт.

12

238-6013

O-RING,0.07" Thk x 0.426" ID, -13, Cl 6, 90 Duro

3шт.

13

238-7113

O-RING,0.103" Thk x 0.549" ID, -113, Cl 7, 75 Duro

1шт.

14

14456981

O-RING,0.424" ID x 0.103" Width

1шт.

15

95-81100

WASHER,33/64" x 7/8" x .049"

3шт.

16

843-1812

SCREW,Flat, M8 x 12mm, Class 4.8

3шт.

17

896-12012

WASHER,13.5mm ID x 24mm OD x 3mm Thk

12шт.

18

628-12035

BOLT,Hex, M12 x 1.75 x 35mm, Cl 10.9, Full Thd

12шт.

19

255121A1

SHIM,290mm ID x 345mm OD x 0.076mm Thk

1шт.

19

255122A1

SHIM,290mm ID x 345mm OD x 0.102mm Thk

1шт.

19

255123A1

SHIM,290mm ID x 345mm OD x 0.13mm Thk

1шт.

19

255124A1

SHIM,290mm ID x 345mm OD x 0.5mm Thk

1шт.

20

837-16040

DOWEL,M16 x 40

2шт.
