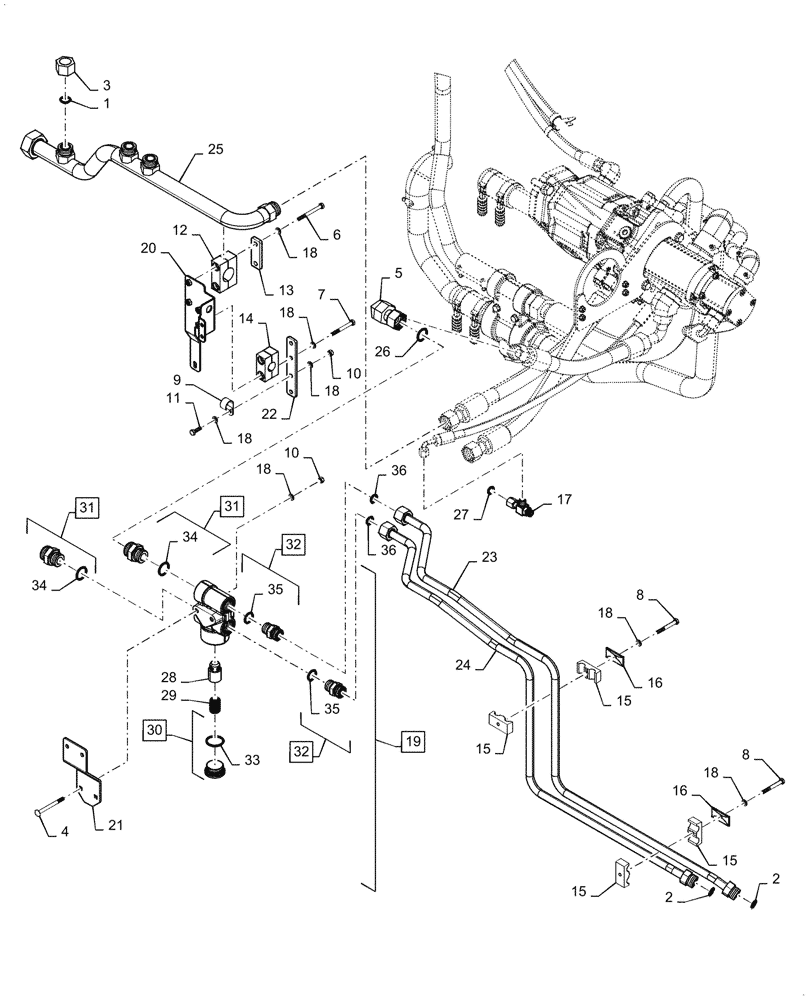

Запчасти Case IH STEIGER 540 (35.600.AQ[01]) - COOLER BY-PASS VALVE (ASN ZGF309205) (35) - HYDRAULIC SYSTEMS

1

238-6021

O-RING,15/16 X 1 - 1/16, Cl 6

4шт.

2

238-6018

O-RING,0.07" Thk x 0.739" ID, -18, Cl 6, 90 Duro

2шт.

3

701-901

CAP,1-7/16" - 12

1шт.

4

47520616

CARRIAGE BOLT,Short Sq Nk, M8 x 1.25 x 90mm, Cl 8.8

2шт.

5

701-339

ELBOW,90 Degree Elbow, 1-7/16" - 12 Male ORFS x 1-7/16" - 16 Female ORFS

1шт.

6

827-8080

BOLT,Hex, M8 x 1.25 x 80mm, Cl 10.9

2шт.

7

827-8070

BOLT,Hex, M8 x 1.25 x 70mm, Cl 10.9

2шт.

8

827-8065

BOLT,Hex, M8 x 1.25 x 65mm, Cl 10.9

2шт.

9

515-23254

CLAMP,1", Insul, 3/8" Bolt

1шт.

10

829-1408

NUT,Hex, M8 x 1.25, Cl 10.9

8шт.

11

627-8025

BOLT,Hex, M8 x 1.25 x 25mm, Cl 10.9, Full Thd

1шт.

12

8500621

BLOCK

Tube Mounting

1шт.

13

8500858

PLATE

Clamp Cover

1шт.

14

367489A1

BLOCK

Tube Mounting

1шт.

15

50-2551T1

CLAMP

4шт.

16

50-2533T1

PLATE

Cover

2шт.

17

300209A1

VALVE

Shuttle

1шт.

18

895-11008

WASHER,9mm ID x 16mm OD x 1.6mm Thk

15шт.

19

84194708

VALVE BODY

Cooler Bypass, Incl 28 - 35

1шт.

20

84204781

BRACKET, SUPPORTING

Hydraulic Charge Pressure

1шт.

21

84204598

BRACKET

Manifold

1шт.

22

84180104

PLATE

Tube Clamp

1шт.

23

84293541

HYD TUBE

Oil Cooler Supply

1шт.

24

84293543

HYD TUBE

Oil Cooler Return

1шт.

25

84206769

TUBE

Hydraulic Pump Supply

1шт.

26

9824050

O-RING,0.07" Thk x 0.926" ID, -21, Cl 6, 90 Duro

4шт.

27

9993141

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

1шт.

28

107453A1

PLUNGER

Poppet Lube Relief

1шт.

29

431858A1

SPRING

Relief

1шт.

30

221528A1

PLUG,Hex Soc, M42 x 2, ORB

Incl 33

1шт.

31

86580179

HYD CONNECTOR,1-7/16" - 12 ORFS x M33 x 2 ORB

Incl 34

2шт.

32

86579682

HYD CONNECTOR,1-3/16" - 12 ORFS x M27 x 2 ORB

Incl 35

2шт.

33

86598105

O-RING,2.9mm Thk x 38.6mm ID, Cl 6, 90 Duro

1шт.

34

86598104

O-RING,2.9mm Thk x 29.6mm ID, Cl 6, 90 Duro

1шт.

35

86598103

O-RING,2.9mm Thk x 23.6mm ID, Cl 6, 90 Duro

1шт.

36

9991976

O-RING,0.07" Thk x 0.739" ID, -18, Cl 6, 90 Duro

2шт.
