Запчасти Case IH STEIGER 540 (25.108.AA[01]) - AXLE CARRIER ASSY, 500, 540 (25) - FRONT AXLE SYSTEM

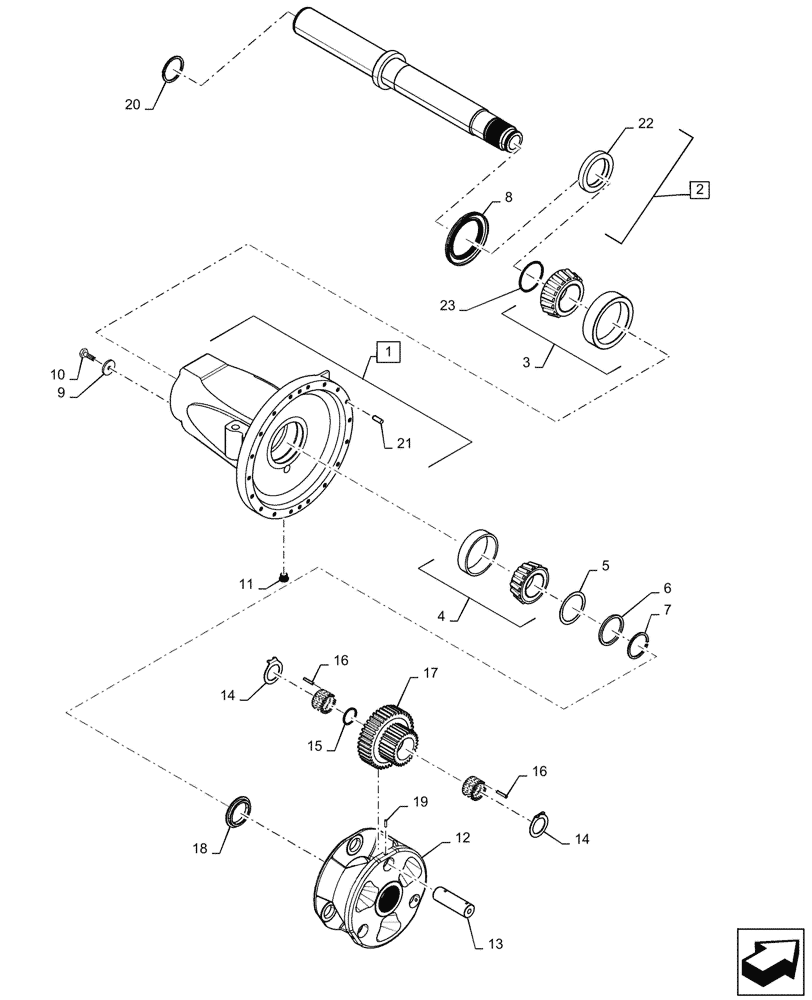

Схема запчастей Case IH STEIGER 540 - (25.108.AA[01]) - AXLE CARRIER ASSY, 500, 540 (25) - FRONT AXLE SYSTEM
11
13
1
10
3
23
8
7
16
18
2
5
21
4
22
16
14
17
9
19
20
15
14
12
6

Артикул

Название

Примечание

Количество

1

47427689

CARRIER

500 Series, Axle W/ Dowels, Incl 21

1шт.

2

84599369

SHAFT

Drive, Assy, 115 Bar, Incl 22 , Serial Range: -ZGF306094

1шт.

500 Series Axle

1шт.

2

47882181

DRIVE SHAFT

Assy, 155mm Bar, Incl 22, Start Serial: ZGF306095

1шт.

500 Series Axle

1шт.

3

47421191

TAPERED BEARING

Bearing, Cone

1шт.

4

1975498C1

BEARING,104.8mm ID x 181mm OD x 47.68mm Thk

1шт.

5

437392A1

SHIM,105.85mm ID x 130mm OD x 0.76mm Thk

0.76mm

1шт.

5

437393A1

SHIM,105.85mm ID x 130mm OD x 0.3mm Thk

0.30mm

1шт.

5

437394A1

SHIM,105.85mm ID x 130mm OD x 0.13mm Thk

0.13mm

1шт.

5

437395A1

SHIM,105.85mm ID x 130mm OD x 0.1mm Thk

0.10mm

1шт.

5

437396A1

SHIM,105.85mm ID x 130mm OD x 0.076mm Thk

0.076mm

1шт.

6

436752A1

THRUST BEARING,105.4mm ID x 130.9mm OD x 7.5mm Thk

105.4mm ID x 131mm OD

1шт.

7

435222A1

RING, SNAP

96.72mm ID

1шт.

8

84225952

OIL SEAL,152.7mm ID x 214.31mm OD x 20.5mm Thk

155mm ID x 214mm OD

1шт.

9

95-31038

WASHER,5/16"

4шт.

10

628-8016

BOLT,Hex, M8 x 1.25 x 16mm, Cl 10.9, Full Thd

4шт.

11

221578A1

PLUG,M18 x 1.5 ORB

1шт.

12

47518392

PLANET CARRIER

Compound Gear Assembly

1шт.

13

446312A1

SHAFT, PLANETARY CAR

18 Teeth / 44 Teeth

3шт.

14

397449A1

THRUST WASHER,59mm ID x 84mm OD x 3mm Thk

59mm ID x 84mm OD

6шт.

15

377650A1

SPACER

Needle Bearing, Compound Planetary Gear

3шт.

16

360785A1

NEEDLE

Bearing, Planetary Gear

156шт.

17

357347A2

GEAR,44T/18T

Planetary, 18 Teeth / 44 Teeth

3шт.

18

435216A1

SPACER,90.85mm ID x 109.95mm OD x 17mm L

92.85mm ID x 128.mm OD

1шт.

19

838-31025

PIN,M10 x 25, Coiled

1шт.

20

800-11115

SNAP RING,M115, Ext

4шт.

21

837-16040

DOWEL,M16 x 40

2шт.

22

84260691

BUSHING,114.91mm ID x 155mm OD x 31mm L

115mm Axle, Serial Range: -ZGF306094

1шт.

22

47812240

BUSHING

115mm Axle, Start Serial: ZGF306095

1шт.

23

238-5246

O-RING,0.139" Thk x 4.484" ID, -246, Cl 5, 75 Duro

Inside of Ref 22

1шт.

Выбрано товаров: 31
