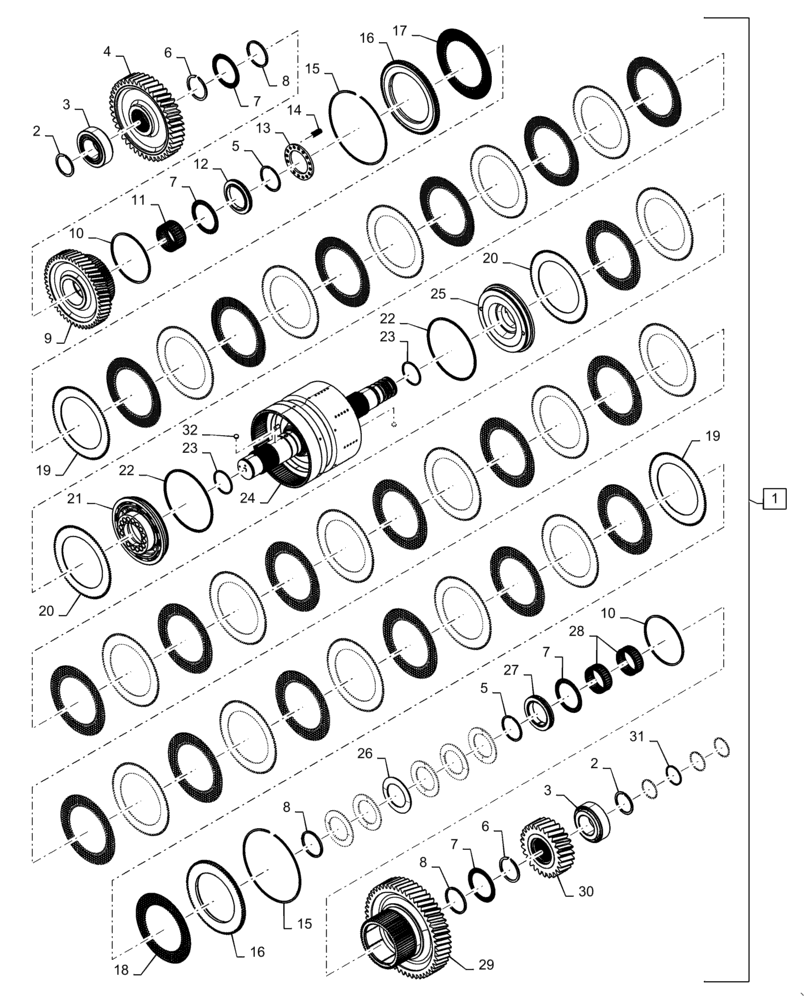

Запчасти Case IH STEIGER 540 (21.155.AN[14]) - TRANSMISSION, 4TH SHAFT, PS4, 8.5C, 500 HD, 540 HD, ASN ZFF308001 (21) - TRANSMISSION

1

47582465

SHAFT

Shaft, 4th 9" Clutch, PS4 SR Incl 2 - 32

1шт.

2

427674A1

SNAP RING

2.5mm

1шт.

2

427675A1

SNAP RING

2.6mm

1шт.

2

427676A1

SNAP RING

2.7mm

2шт.

2

427678A1

SNAP RING

2.8mm

1шт.

2

427679A1

SNAP RING

2.9mm

1шт.

2

427680A1

SNAP RING

3.0mm

1шт.

3

84314690

ROLLER BEARING

Tapered

2шт.

4

47582469

GEAR

4R Driven

1шт.

5

S5040S00F

RING

Retaining

2шт.

6

428163A1

RING, SNAP

Retaining

2шт.

7

84314644

THRUST BEARING

4шт.

8

362611A1

SPACER

Needle Bearing

3шт.

9

87350316

DRIVEN GEAR

4R

1шт.

10

392073A1

SEALING RING

2шт.

11

87350319

NEEDLE BEARING

1шт.

12

87350321

THRUST WASHER

1шт.

13

362615A1

PLATE

Spring

1шт.

14

362616A1

SPRING

Return

16шт.

15

359235A1

RING, SNAP

2шт.

16

362617A1

PLATE

Clutch End

2шт.

17

47614171

PLATE

Faced, 2.2mm

7шт.

18

362618A1

CLUTCH DISC

Faced

14шт.

19

362628A1

CLUTCH DISC

Steel, 2.4mm

14шт.

20

362629A1

CLUTCH DISC

Steel, 2.6mm

7шт.

21

84314691

PISTON

9" RR Clutch

1шт.

22

87431400

RING

D

2шт.

23

S4410S00F

RING

Seal

2шт.

24

47582501

SHAFT

4th Drum, PS4 SR

1шт.

25

364825A1

PISTON

9" FR Clutch

1шт.

26

364826A1

PLATE

Spring

6шт.

27

47582423

WASHER

Thrust

1шт.

28

S5070S00F

BEARING, NEEDLE,76.2mm ID x 85.5mm OD x 31.5mm W

2шт.

29

87350334

DRIVEN GEAR

4F

1шт.

30

47582502

GEAR

4F Drive

1шт.

31

87431401

RING

Seal

4шт.

32

87672304

BALL

.156" GR

2шт.
