Запчасти Case IH STEIGER 540 (21.155.AN[09]) - TRANSMISSION, 4TH SHAFT, PS6, 9C, 500 SCRAPER, 540 SCRAPER, 580, 620, BSN ZFF308000 (21) - TRANSMISSION

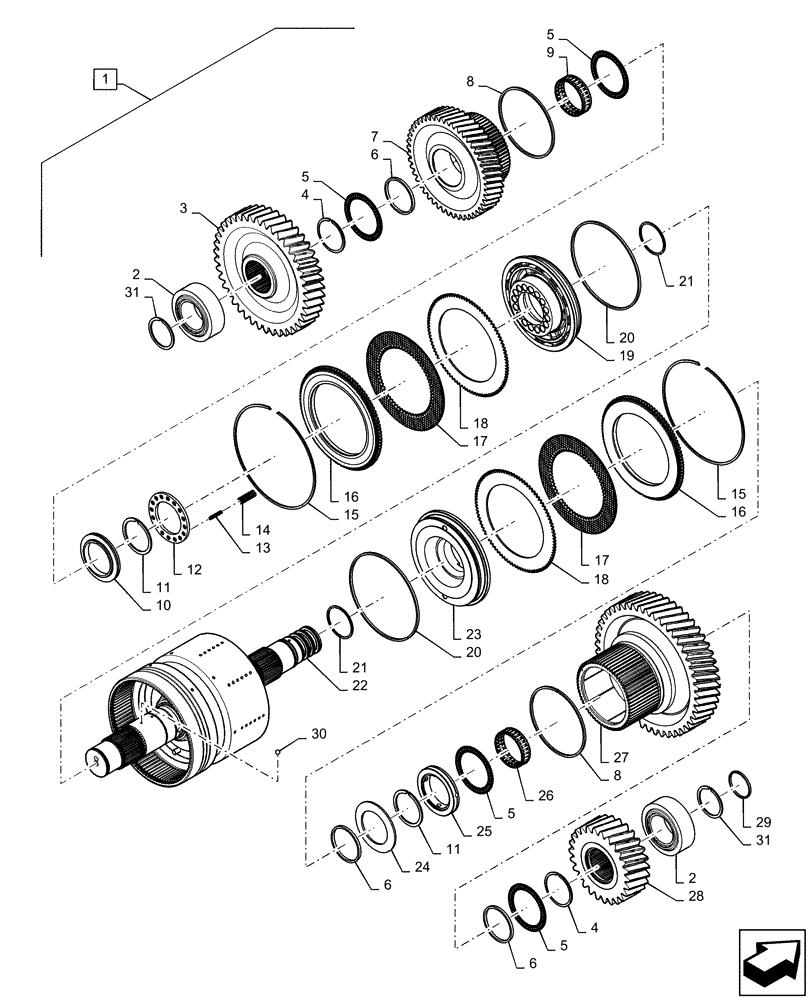

Схема запчастей Case IH STEIGER 540 - (21.155.AN[09]) - TRANSMISSION, 4TH SHAFT, PS6, 9C, 500 SCRAPER, 540 SCRAPER, 580, 620, BSN ZFF308000 (21) - TRANSMISSION
31
7
21
3
29
5
27
5
25
14
17
11
16
17
16
15
6
15
4
20
10
8
22
18
6
9
13
12
6
28
2
8
31
20
5
19
23
11
18
24
30
21
1
26
2
4
5

Артикул

Название

Примечание

Количество

1

84314689

SHAFT

4th Shaft, 9" Clutch, 9C, Incl 2 - 31

1шт.

2

84314690

ROLLER BEARING

Tapered

2шт.

3

84314709

GEAR

4R, Drive

1шт.

4

428163A1

RING, SNAP

Retaining

2шт.

5

84314710

THRUST BEARING

Gear

4шт.

6

362611A1

SPACER

Needle Bearing

3шт.

7

84314730

DRIVEN GEAR

4R

1шт.

8

392073A1

SEALING RING

Gear

2шт.

9

84314731

NEEDLE BEARING

4R Gear

2шт.

10

87350321

THRUST WASHER

4R Gear

1шт.

11

S5040S00F

RING

Retaining

2шт.

12

362615A1

PLATE

Spring

1шт.

13

84314631

SPRING

Return

16шт.

14

84314633

SPRING

Return

16шт.

15

359235A1

RING, SNAP

Retaining

2шт.

16

84314733

CLUTCH PLATE

Clutch End

2шт.

17

362618A1

CLUTCH DISC

Faced

26шт.

18

362628A1

CLUTCH DISC

Steel, 2.40mm Thick

26шт.

18

362629A1

CLUTCH DISC

Steel, 2.60mm Thick

26шт.

19

84314691

PISTON

9" Rear Clutch

1шт.

20

87431400

RING

Drum

2шт.

21

S4410S00F

RING

Seal

2шт.

22

84314734

SHAFT

4th Drum Assembly

1шт.

23

364825A1

PISTON

9" Front Clutch

1шт.

24

364826A1

PLATE

Spring

8шт.

25

87350331

THRUST WASHER

4F Gear

1шт.

26

S5070S00F

BEARING, NEEDLE,76.2mm ID x 85.5mm OD x 31.5mm W

4F Gear

2шт.

27

84314736

DRIVEN GEAR

4F Driven

1шт.

28

84314737

GEAR

4F Drive

1шт.

29

87431401

RING

Seal

4шт.

30

87672304

BALL

Steel

2шт.

31

427674A1

SNAP RING

2.5mm

1шт.

31

427675A1

SNAP RING

2.6mm

1шт.

31

427676A1

SNAP RING

2.7mm

1шт.

31

427678A1

SNAP RING

2.8mm

1шт.

31

427679A1

SNAP RING

2.9mm

1шт.

31

427680A1

SNAP RING

3.0mm

1шт.

Выбрано товаров: 37
