Запчасти Case IH STEIGER 540 (21.155.AN[06]) - TRANSMISSION, SHAFT ASSY, PS6, 9C, 500 SCRAPER, 540 SCRAPER, 580, 620, BSN ZFF308000 (21) - TRANSMISSION

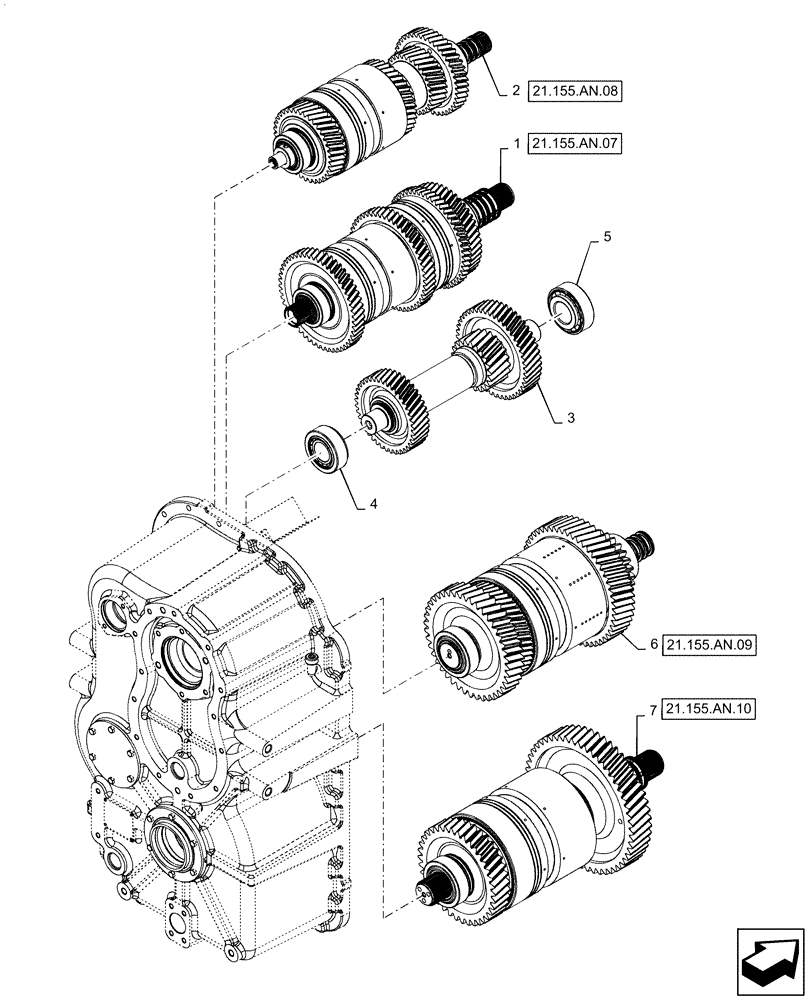

Схема запчастей Case IH STEIGER 540 - (21.155.AN[06]) - TRANSMISSION, SHAFT ASSY, PS6, 9C, 500 SCRAPER, 540 SCRAPER, 580, 620, BSN ZFF308000 (21) - TRANSMISSION
4
7
6
5
21.155.an.08
1
3
21.155.an.09
21.155.an.10
2
21.155.an.07

Артикул

Название

Примечание

Количество

1

84314626

SHAFT

1st Shaft, 7" Clutch, 9C

1шт.

2

84314687

SHAFT

2nd Shaft, 7" Clutch, 9C

1шт.

3

84315276

SHAFT

3rd Shaft

1шт.

4

84315279

ROLLER BEARING

Tapered

1шт.

5

84315281

ROLLER BEARING

Tapered

1шт.

6

84314689

SHAFT

4th Shaft, 9" Clutch, 9C

1шт.

7

84314739

SHAFT

5th Shaft, 9" Clutch, 9C

1шт.

Выбрано товаров: 7
