Запчасти Case IH STEIGER 540 (21.155.AN[04]) - TRANSMISSION, 4TH SHAFT, PS4, 8.5C, 500 HD, 540 HD, BSN ZFF308000 (21) - TRANSMISSION

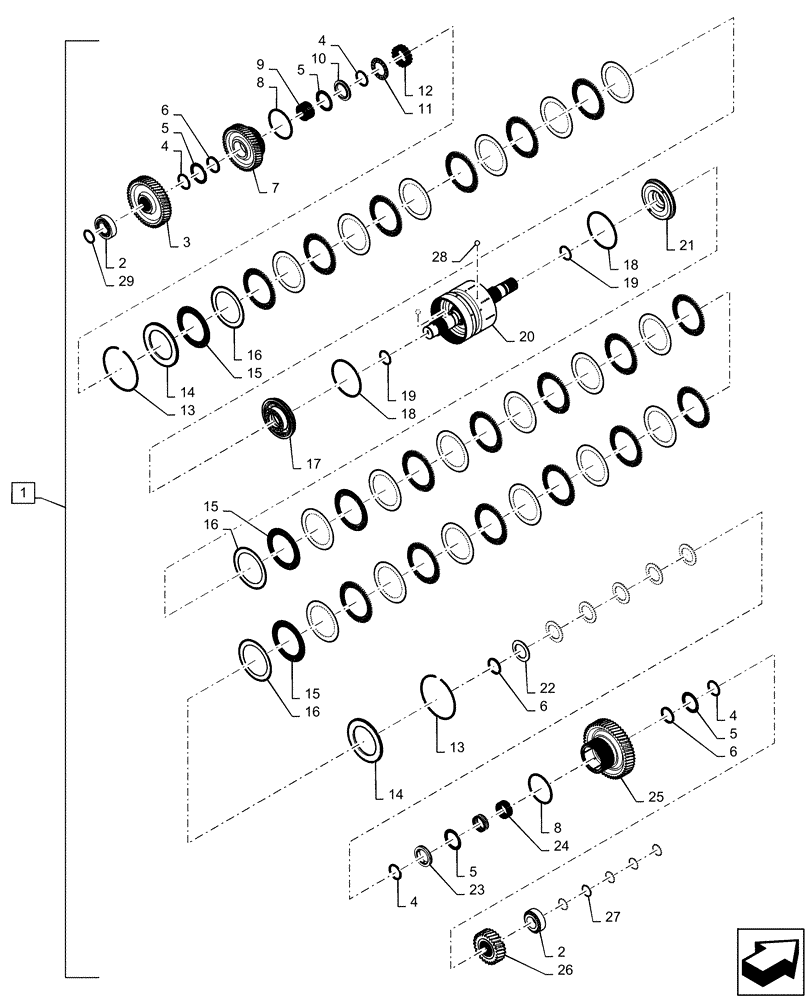

Схема запчастей Case IH STEIGER 540 - (21.155.AN[04]) - TRANSMISSION, 4TH SHAFT, PS4, 8.5C, 500 HD, 540 HD, BSN ZFF308000 (21) - TRANSMISSION
19
18
13
22
5
8
6
14
16
14
16
18
4
3
4
9
6
17
19
25
15
7
12
2
5
28
16
23
21
2
26
4
8
1
27
20
11
6
4
10
24
13
15
29
15
5
5

Артикул

Название

Примечание

Количество

1

87350309

CLUTCH INPUT SHAFT

4th Shaft, 9" Clutch, 8.5C, Incl 2 - 29

1шт.

2

84314690

ROLLER BEARING

Tapered

2шт.

3

87350315

DRIVING GEAR

4R

1шт.

4

S5040S00F

RING

Retaining

4шт.

5

84314644

THRUST BEARING

4th Shaft

4шт.

6

362611A1

SPACER

Needle Bearing

3шт.

7

87350316

DRIVEN GEAR

4R

1шт.

8

392073A1

SEALING RING

4th Shaft

2шт.

9

87350319

NEEDLE BEARING

4th Shaft

1шт.

10

87350321

THRUST WASHER

4th Shaft

1шт.

11

362615A1

PLATE

Spring

1шт.

12

362616A1

SPRING

Return

16шт.

13

359235A1

RING, SNAP

Clutch

2шт.

14

362617A1

PLATE

Clutch End

2шт.

15

362618A1

CLUTCH DISC

Faced

21шт.

16

362628A1

CLUTCH DISC

Steel, 2.40mm Thick

21шт.

16

362629A1

CLUTCH DISC

Steel, 2.60mm Thick

21шт.

17

84314691

PISTON

9" Rear Clutch

1шт.

18

87431400

RING

Drum

2шт.

19

S4410S00F

RING

Seal

2шт.

20

87350326

SHAFT

4th Drum Assembly

1шт.

21

364825A1

PISTON

9" Front Clutch

1шт.

22

364826A1

PLATE

Spring

6шт.

23

87350331

THRUST WASHER

4th Shaft

1шт.

24

S5070S00F

BEARING, NEEDLE,76.2mm ID x 85.5mm OD x 31.5mm W

4th Shaft

2шт.

25

87350334

DRIVEN GEAR

4F Driven

1шт.

26

87350339

DRIVING GEAR

4F Drive

1шт.

27

87431401

RING

Seal

4шт.

28

87672304

BALL

Steel

1шт.

29

427674A1

SNAP RING

2.5mm

1шт.

29

427675A1

SNAP RING

2.6mm

1шт.

29

427676A1

SNAP RING

2.7mm

1шт.

29

427678A1

SNAP RING

2.8mm

1шт.

29

427679A1

SNAP RING

2.9mm

1шт.

29

427680A1

SNAP RING

3.0mm

1шт.

Выбрано товаров: 35
